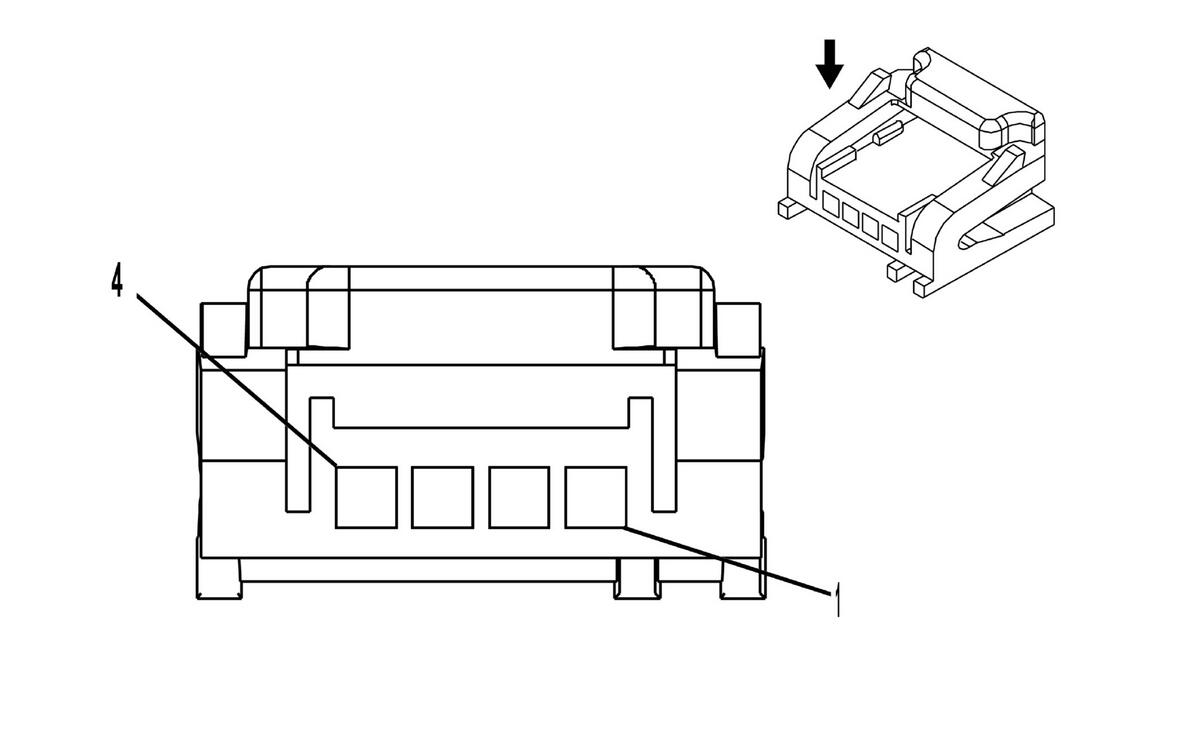

C275 I/P Harness to the Steering Wheel Module Coil Harness Connector End View

C275 I/P Harness to the Steering Wheel Module Coil Harness Connector End Views

Courtesy of GENERAL MOTORS CORP.

Courtesy of GENERAL MOTORS CORP.

C275 I/P Harness to the Steering Wheel Module Coil Harness Connector Parts Information

Connector Part Information OEM: 15393421 Service: 88987853 Description: 4-Way F Micro-Pack 064 Series (YE)	Connector Part Information OEM: 15393425 Service: See Catalog Description: 4-Way M Micro-Pack 064 Series (YE)
Terminal Part Information Terminal/Tray: 12177007/19 Core/Insulation Crimp: E/2 Release Tool/Test Probe: 12180559-1/J-35616-64B (L-BU)	Terminal Part Information Terminal/Tray: See Terminal Repair Kit Core/Insulation Crimp: See Terminal Repair Kit Release Tool/Test Probe: See Terminal Repair Kit

C275 I/P Harness to the Steering Wheel Module Coil Harness Connector Terminal Identification

Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
1	BN	3020	Steering Wheel Module - Stage 1 - Low Control	1	-	3020	Steering Wheel Module - Stage 1 - Low Control
2	TN	3021	Steering Wheel Module - Stage 1 - High Control	2	-	3021	Steering Wheel Module - Stage 1 - High Control
3	PK	3022	Steering Wheel Module - Stage 2 - Low Control	3	-	3022	Steering Wheel Module - Stage 2 - Low Control
4	WH	3023	Steering Wheel Module - Stage 2 - High Control	4	-	3023	Steering Wheel Module - Stage 2 - High Control
