C214 Connector End View (-ASF)

C214 (-ASF) Connector End Views

Graphic SIO does not exist

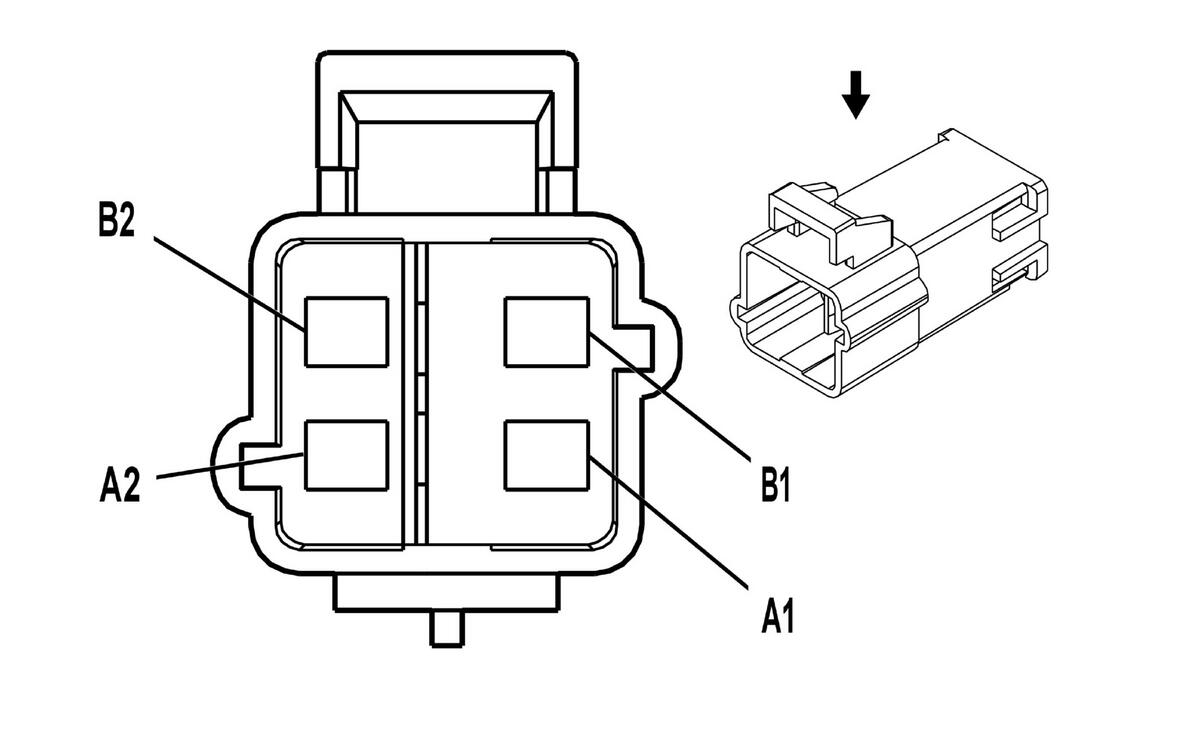

GM684931Courtesy of GENERAL MOTORS CORP.
C214 (-ASF) Connector Parts Information

Connector Part Information
  • OEM: -
  • Service: -
  • Description: -
 Connector Part Information
  • OEM: 15336476
  • Service: 88987998
  • Description: 4-Way M Metri-Pack 280 Series (YE)
Terminal Part Information
  • Terminal/Tray: -
  • Core/Insulation Crimp: -
  • Release Tool/Test Probe: -
 Terminal Part Information
  • Terminal/Tray: 12034047/2
  • Core/Insulation Crimp: E/A
  • Release Tool/Test Probe: 12094430/J-35616-5 (PU)
C214 (-ASF) Connector Terminal Identification

Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A1 - - - A1 YE 3025 I/P Module - Stage 1 - High Control
A2 - - - A2 OG 3024 I/P Module - Stage 1 - Low Control
B1 - - - B1 GY 3027 I/P Module - Stage 2 - High Control
B2 - - - B2 PU 3026 I/P Module - Stage 2 - Low Control
