C105 Engine Harness to the Fuel Injector Harness Connector End View

C105 Engine Harness to the Fuel Injector Harness Connector End Views

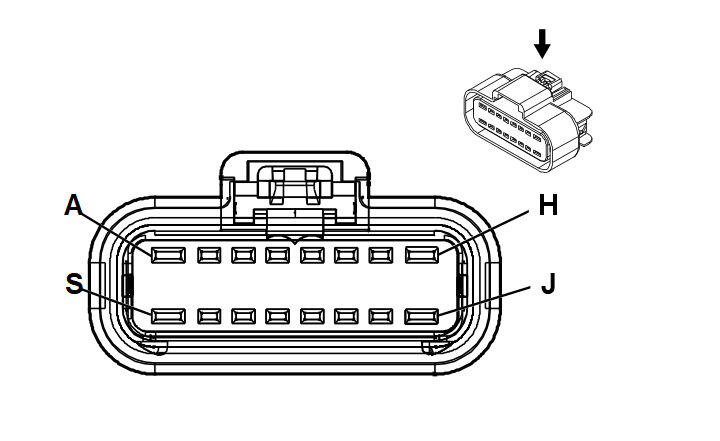

GM655811Courtesy of GENERAL MOTORS CORP.

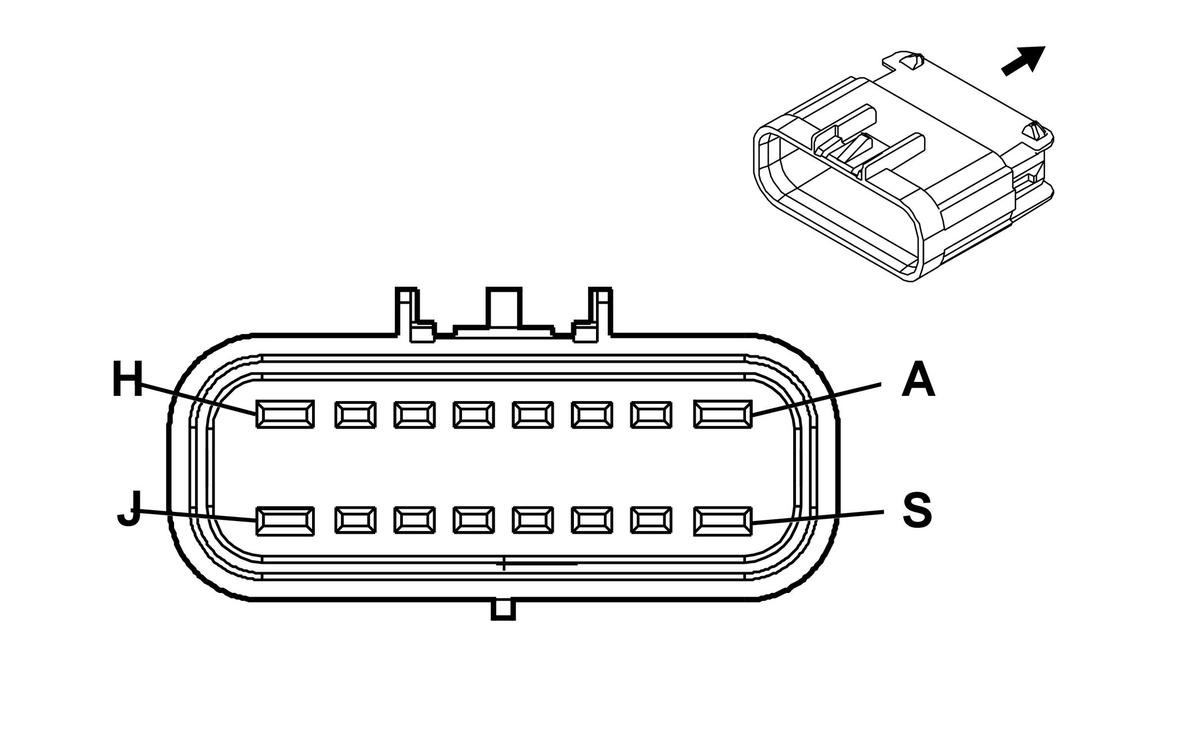

GM655813Courtesy of GENERAL MOTORS CORP.
C105 Engine Harness to the Fuel Injector Harness Connector Parts Information

Connector Part Information
  • OEM: 1532-6084
  • Service: See Catalog
  • Description: 16-Way F GT 150 280 Sealed 4.0 5.8 (BK)
 Connector Part Information
  • OEM: 1532-6085
  • Service: See Catalog
  • Description: 16-Way F GT 150 280 Sealed 4.0 5.8 (BK)
Terminal Part Information
  • Pins: B, C, D, E, F, G, H, K, L, M, N, P, R
  • Terminal/Tray: 4-964286-1/16
  • Core/Insulation Crimp: E/1
  • Release Tool/Test Probe: 12093647/J-35616-4A (PU)
  • Pins: A
  • Terminal/Tray: 15304719/19
  • Core/Insulation Crimp: 2/5
  • Release Tool/Test Probe: 15315247/J-35616-4A (PU)
 Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
C105 Engine Harness to the Fuel Injector Harness Connector Terminal Identification

Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A PK/BK 5291 Ignition 1 Voltage A PK/BK 3291 Ignition 1 Voltage
B YE 410 ECT Sensor Signal B YE 410 ECT Sensor Signal
C TN 1744 Fuel Injector 1 Control C TN 1744 Fuel Injector 1 Control
D L-GN/BK 1745 Fuel Injector 2 Control D L-GN/BK 1745 Fuel Injector 2 Control
E PK/BK 1746 Fuel Injector 3 Control E PK/BK 1746 Fuel Injector 3 Control
F L-BU/BK 844 Fuel Injector 4 Control F L-BU/BK 844 Fuel Injector 4 Control
G TN/WH 845 Fuel Injector 5 Control G N/WH 845 Fuel Injector 5 Control
H YE/BK 846 Fuel Injector 6 Control H YE/BK 846 Fuel Injector 6 Control
K GY 2704 5-Volt Reference K GY 2704 5-Volt Reference
J - - Not Used J - - Not Used
K GY 2704 5-Volt Reference K GY 2704 5-Volt Reference
L OG/BK 469 Low Reference L OG/BK 469 Low Reference
M L-GN 432 MAP Sensor Signal M L-GN 432 MAP Sensor Signal
N D-BU 6259 5-Volt Reference 1 N D-BU 6259 5-Volt Reference 1
P TN 407 Low Reference P TN 407 Low Reference
R BN/WH 633 Camshaft Position Signal All others CMP Sensor Signal R BN/WH 633 Camshaft Position Signal All others CMP Sensor Signal
S - - Not Used S - - Not Used
