C103 Left Front Wheel Speed Sensor Harness to the Body Harness Connector End View

C103 Left Front Wheel Speed Sensor Harness to the Body Harness Connector End Views

GM635009Courtesy of GENERAL MOTORS CORP.

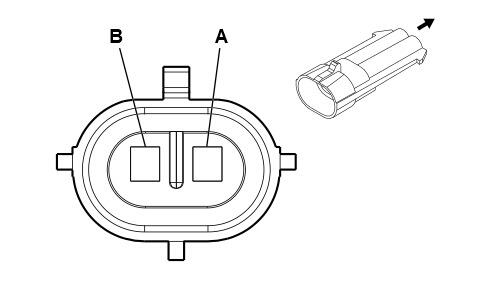

GM333041Courtesy of GENERAL MOTORS CORP.
C103 Left Front Wheel Speed Sensor Harness to the Body Harness Connector End Views

Connector Part Information
  • OEM: 12052641
  • Service: 12102747
  • Description: 2-Way F Metri-Pack 150 Series (BK)
 Connector Part Information
  • OEM: 12162000
  • Service: 12167120
  • Description: 2-Way M Metri-Pack 150 Series (BK)
Terminal Part Information
  • Terminal/Tray: 12048074/2
  • Core/Insulation Crimp: E/1
  • Release Tool/Test Probe: 12094429/J-35616-2A (GY)
 Terminal Part Information
  • Terminal/Tray: 12045773/2
  • Core/Insulation Crimp: E/1
  • Release Tool/Test Probe: 12094429/J-35616-3 (GY)
C103 Left Front Wheel Speed Sensor Harness to the Body Harness Connector Terminal Identification

Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A YE 873 Left Front Wheel Speed Sensor Low Reference A YE 873 Left Front Wheel Speed Sensor Low Reference
B L-BU 830 Left Front Wheel Speed Sensor Signal B L-BU 830 Left Front Wheel Speed Sensor Signal
