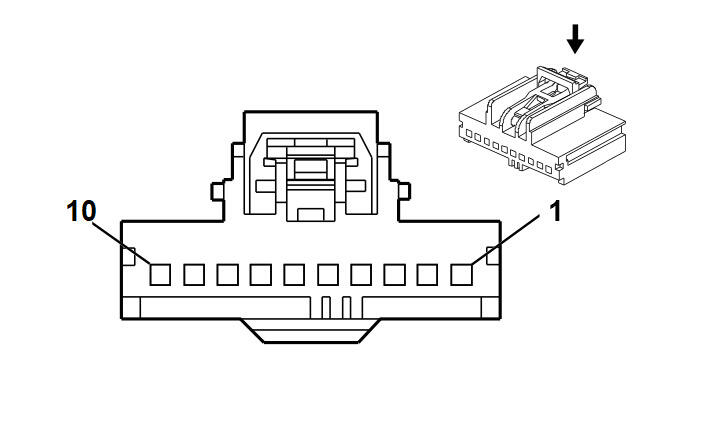

Video Display (UCC) Connector End View
Video Display (UCC) Connector Parts Information
Connector Part Information
|
Terminal Part Information
|
Video Display (UCC) Connector Terminal Identification
| Pin | Wire Color | Circuit No. | Function |
|---|---|---|---|
| 1 | YE | 2059 | Auxiliary Audio Left Signal |
| 2 | WH | 2058 | Auxiliary Audio Right Signal |
| 3-5 | - | - | Not Used |
| 6 | BK/WH | 1551 | Ground |
| 7 | RD/WH | 2340 | Battery Positive Voltage |
| 8 | WH | 1487 | Antenna Enable Signal |
| 9 | PK/BK | 5844 | Video Bright Control |
| 10 | BN/WH | 5846 | Video Power Mode Signal |
