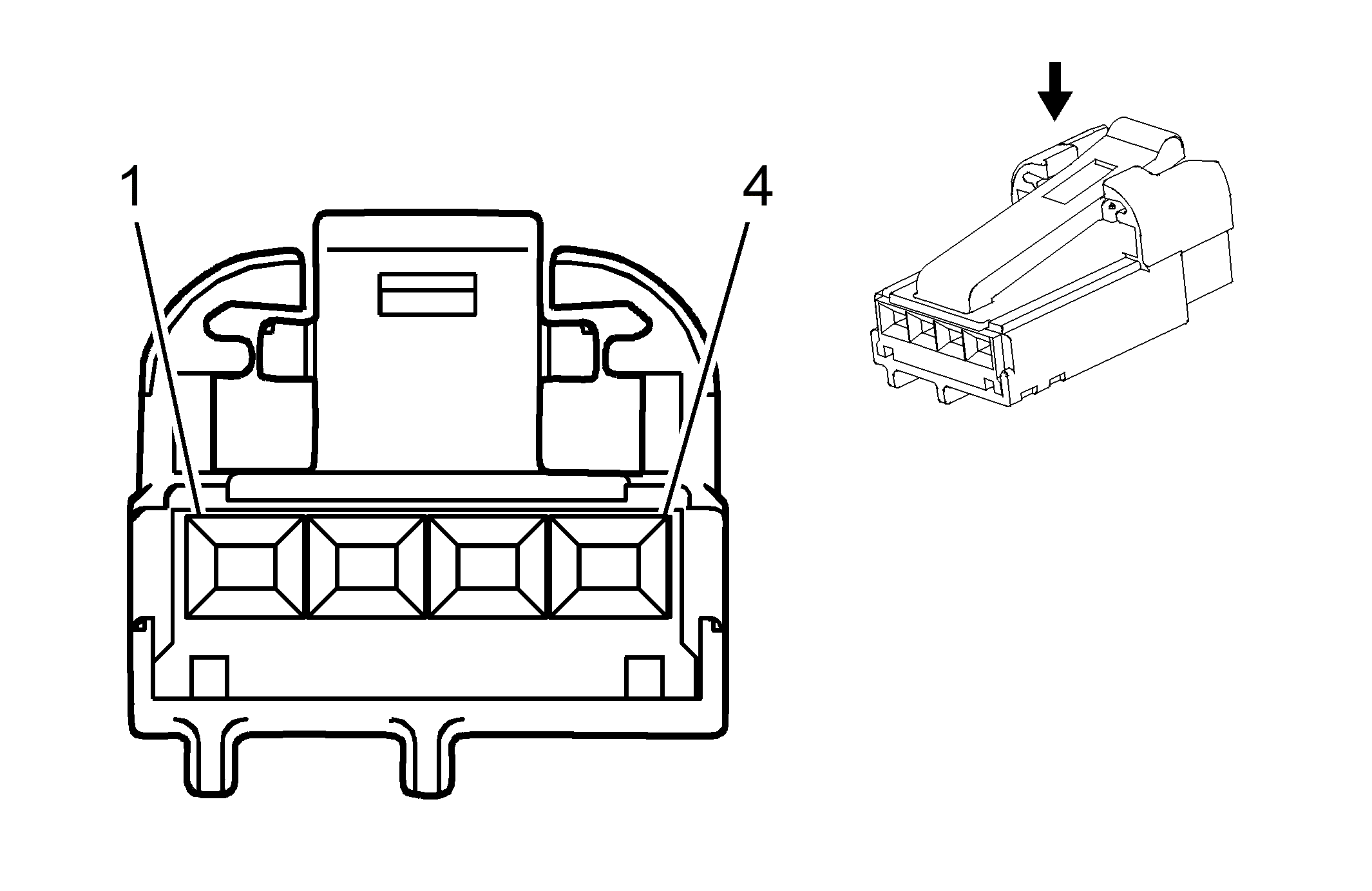

Steering Wheel Control Switch Connector End View - Right (UK3)
Steering Wheel Control Switch - Right (UK3) Connector Parts Information
Connector Part Information
|
Steering Wheel Control Switch - Right (UK3) Connector Terminal Identification
| Pin | Wire Color | Circuit No. | Function |
|---|---|---|---|
| 1 | D-BU | 1796 | Steering Wheel Controls Signal |
| 2 | PU | 1375 | Remote Radio Control Supply Voltage |
| 3 | PU/WH | 7005 | LED Dimming Signal |
| 4 | BK | 1450 | Ground |
