Cellular and Navigation Antenna Connector End View (UE1)/Digital Antenna Connector End View (U2K)

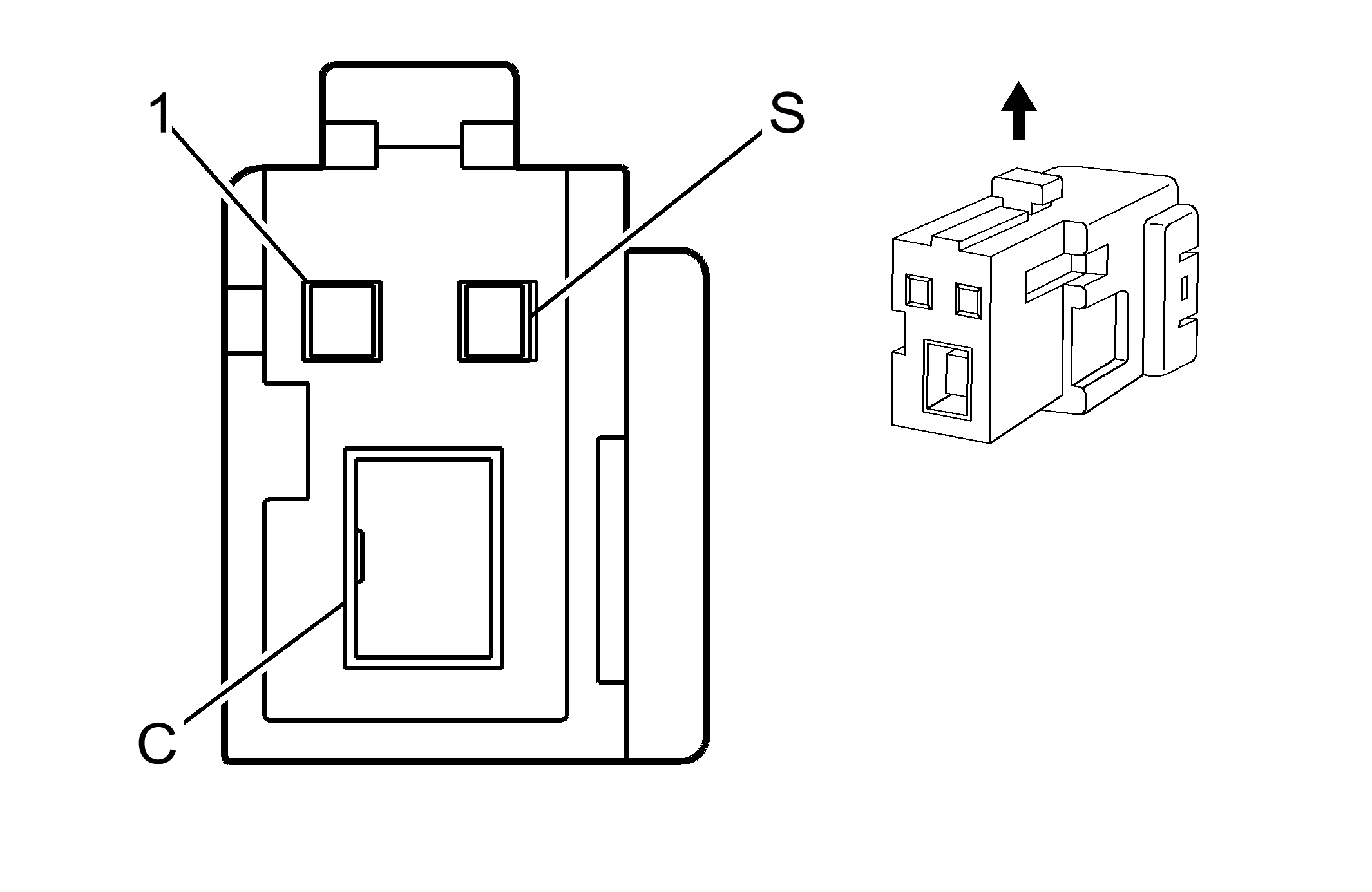

Fig 1: Cellular and Navigation Antenna (UE1)/Digital Antenna (U2K) Connector End View

Courtesy of GENERAL MOTORS CORP.

Cellular and Navigation Antenna (UE1)/Digital Antenna (U2K) Connector Parts Information

Connector Part Information  OEM: GT13GM-1/1S-HU Service: Service by Harness - See Part Catalog Description: 3-Way F GT13 Coaxial Series (GY)

Terminal Part Information  Terminal/Tray: 7116-4618-02/14 Core/Insulation Crimp: P/P Release Tool/Test Probe: J-38125-215/J-35616-64B (L-BU)

Cellular and Navigation Antenna (UE1)/Digital Antenna (U2K) Connector Terminal Identification

Pin	Wire Color	Circuit No.	Function
1	WH	1487	Antenna Enable Signal
C	-	-	Not Used
S	COAX	-	Antenna Signal
