Auxiliary Jack Switch Board Connector End View

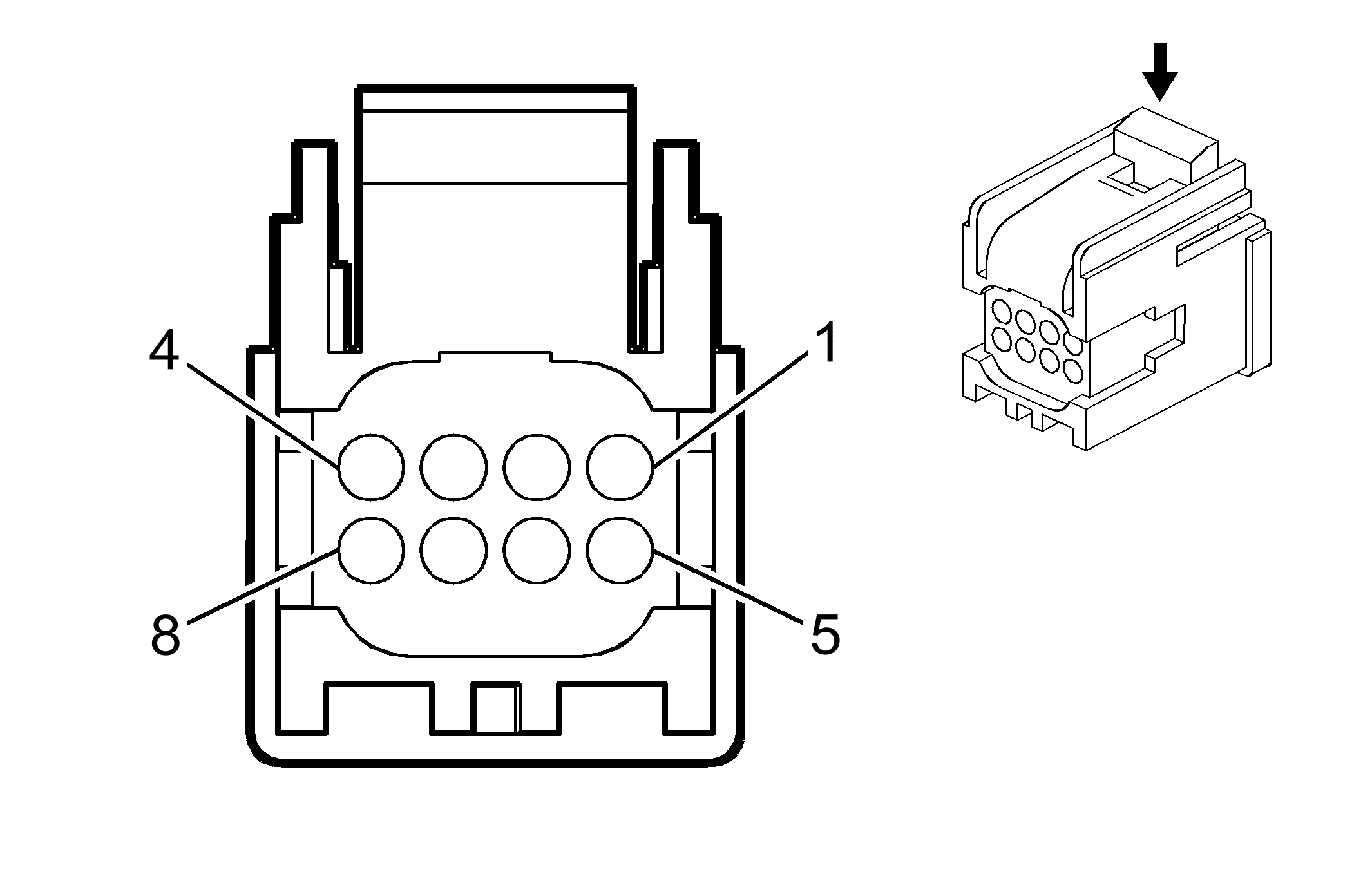

Fig 1: Auxiliary Jack Switch Board Connector End View
GM1715233Courtesy of GENERAL MOTORS CORP.
Auxiliary Jack Switch Board Connector Parts Information

Connector Part Information
  • OEM: 15480082
  • Service: 19149303
  • Description: 8-Way F Micro 64 Series (GY)
Terminal Part Information
  • Terminal/Tray: 15359541/4
  • Core/Insulation Crimp: M/M
  • Release Tool/Test Probe: 15381651-2/J-35616-64B (L-BU)
Auxiliary Jack Switch Board Connector Terminal Identification

Pin Wire Color Circuit No. Function
1 BARE 5345 Drain Wire
3 PU 2056 Auxiliary Video High Signal
5 WH 2058 Auxiliary Audio Right Signal
6 YE 2059 Auxiliary Audio Left Signal
7 BARE 5346 -
