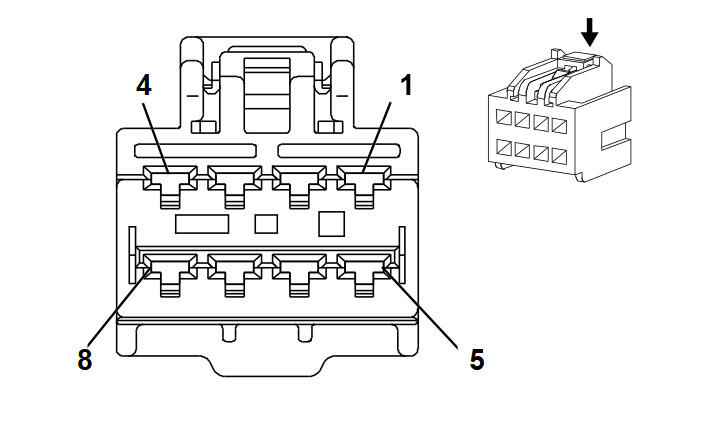

Amplifier Connector End View C1 (U65)
Amplifier C1 (U65) Connector Parts Information
Connector Part Information
|
Terminal Part Information
|
Amplifier C1 (U65) Connector Terminal Identification
| Pin | Wire Color | Circuit No. | Function |
|---|---|---|---|
| 1 | L-GN/BK | 1794 | [Left or Rear] Subwoofer Speaker Output (-) |
| 2 | D-BU/WH | 346 | Left or Rear Subwoofer Speaker Output (+) GMT315 Subwoofer Speaker Coil 2 Output (+) |
| 3 | D-GN | 1795 | Right Subwoofer Speaker Output (+) |
| 4 | L-BU/BK | 315 | Right Subwoofer Speaker Output (-) |
| 5 | BK | 850 | Ground |
| 6-7 | - | - | Not Used |
| 8 | RD/WH | 2040 | Battery Positive Voltage |
