Evaporative Emission (EVAP) Canister Purge Solenoid Connector End View

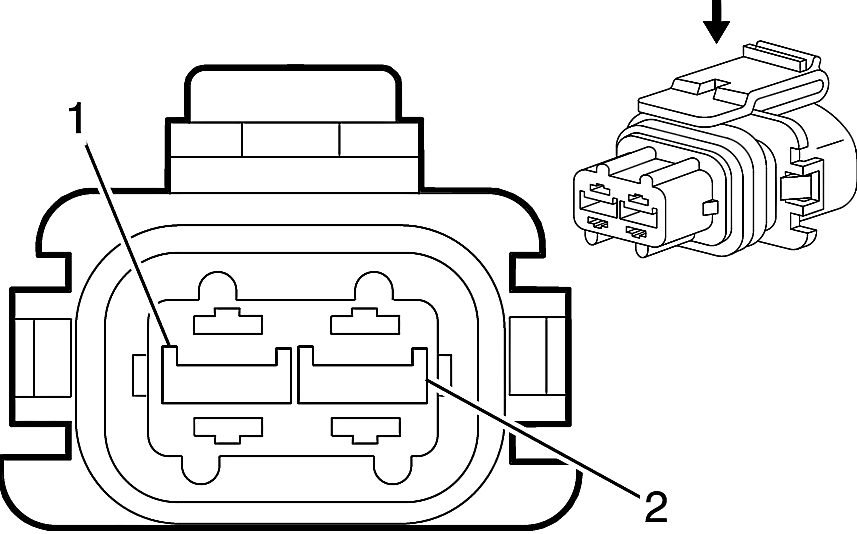

Fig 1: Evaporative Emission (EVAP) Canister Purge Solenoid Connector End View
GM1331450Courtesy of GENERAL MOTORS CORP.
Evaporative Emission (EVAP) Canister Purge Solenoid Connector Parts Information

Connector Part Information
  • OEM: 1928404072
  • Service: 88988586
  • Description: 2-Way F (BK)
Terminal Part Information
  • Terminal/Tray: 1928498056/8
  • Core/Insulation Crimp: E/1
  • Release Tool/Test Probe: J-38125-561/J-35616-4A (PU)
Evaporative Emission (EVAP) Canister Purge Solenoid Connector Terminal Identification

Pin Wire Color Circuit No. Function
1 PK/BK 5292 Powertrain Main Relay Fused Supply (3)
2 GN/WH 428 EVAP Canister Purge Solenoid Control
