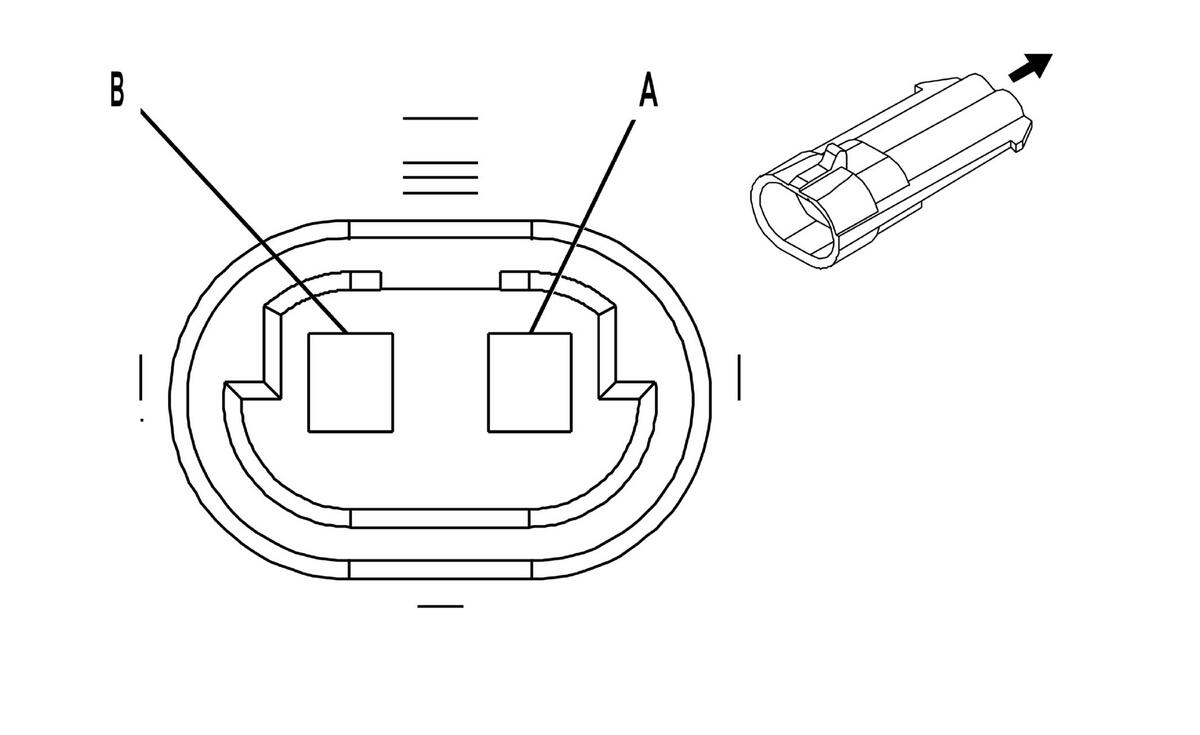

Wheel Speed Sensor Connector End View - Left Rear
Wheel Speed Sensor - Left Rear Connector Parts Information
Connector Part Information
|
Terminal Part Information
|
Wheel Speed Sensor - Left Rear Connector Terminal Identification
| Pin | Wire Color | Circuit No. | Function |
|---|---|---|---|
| A | OG | 885 | Left Rear Wheel Speed Sensor Low Reference |
| B | TN | 884 | Left Rear Wheel Speed Sensor Signal |
