Evaporative Emissions Hose Routing Diagram

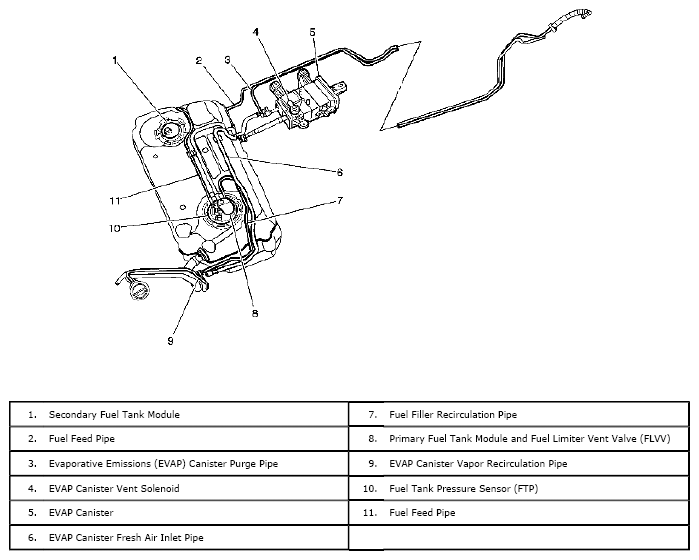

Fig 1: Identifying Evaporative Emissions Hose Routing Diagram
G04843303Courtesy of SUZUKI OF AMERICA CORP.
