Door Lock Switch Connector End View - Driver

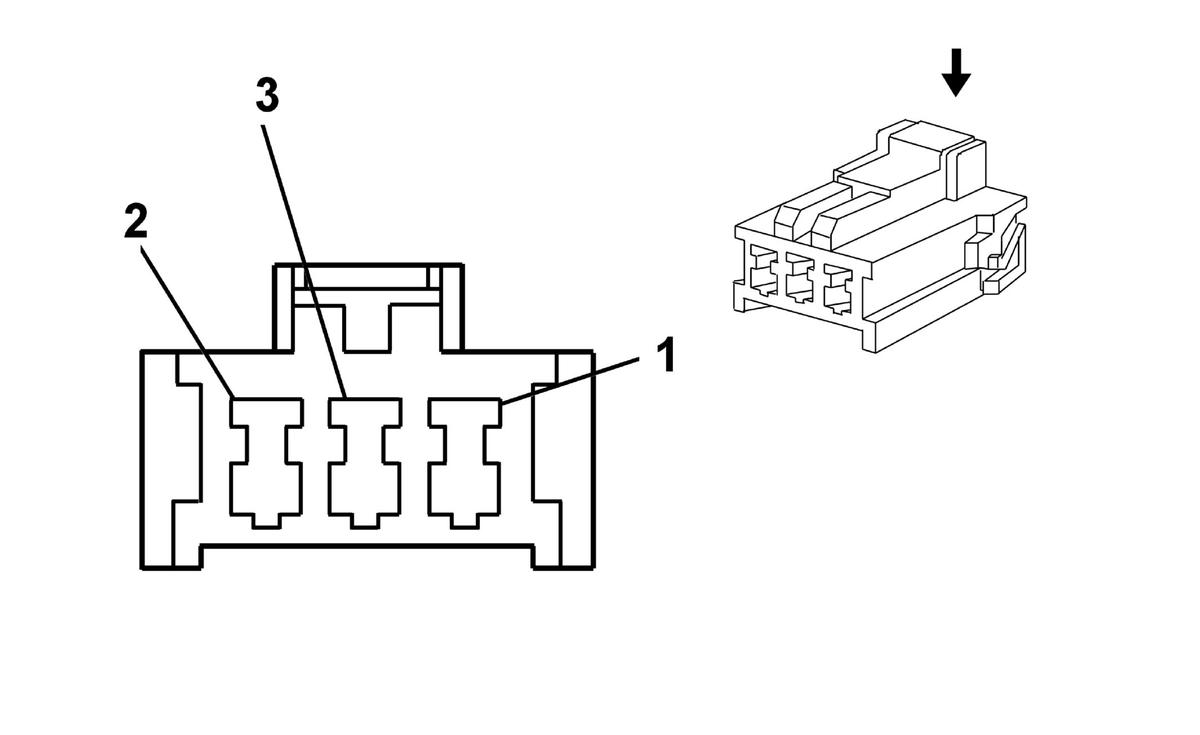

Fig 1: Door Lock Switch - Driver Connector End View
GM1456982Courtesy of GENERAL MOTORS CORP.
Door Lock Switch - Driver Connector Parts Information

Connector Part Information
  • OEM: 6098-0241
  • Service: Service by Harness - See Part Catalog
  • Description: 3-Way F HD 090 Series (L-GY
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
Door Lock Switch - Driver Connector Terminal Identification

Pin Wire Color Circuit No. Function
1 RD/BK 7807 Driver Door Lock Switch Lock Signal
2 OG/BK 781 Driver Door Lock Switch Unlock Signal
3 OG 651 Ground
