Key Cylinder Lock Solenoid Connector End View

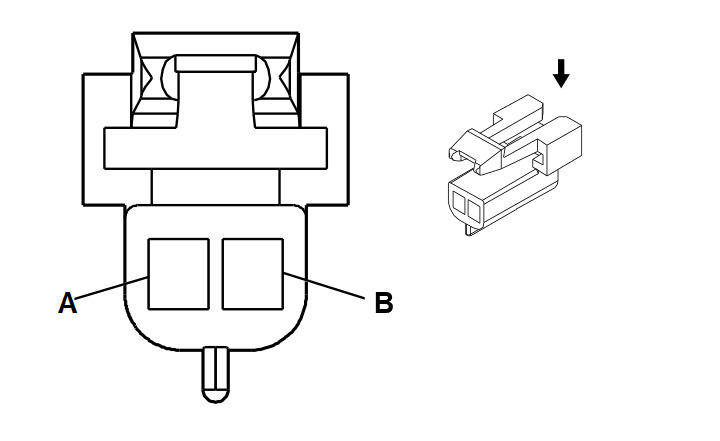

Fig 1: Key Cylinder Lock Solenoid Connector End View
GM280768Courtesy of GENERAL MOTORS CORP.
Key Cylinder Lock Solenoid Connector Parts Information

Connector Part Information
  • OEM: 12052832
  • Service: 12101825
  • Description: 2-Way F Metri-Pack 150 Series (BK)
Terminal Part Information
  • Terminal/Tray: 12064971/5
  • Core/Insulation Crimp: E/C
  • Release Tool/Test Probe: 12094429/J-35616-2A (GY)
Key Cylinder Lock Solenoid Connector Terminal Identification

Pin Wire Color Circuit No. Function
A BK 1450 -
B PU/WH 1630 Steering Column Key Cylinder Lock Solenoid Control
