Heated Seat Control Module Connector End View C3 (KA1)

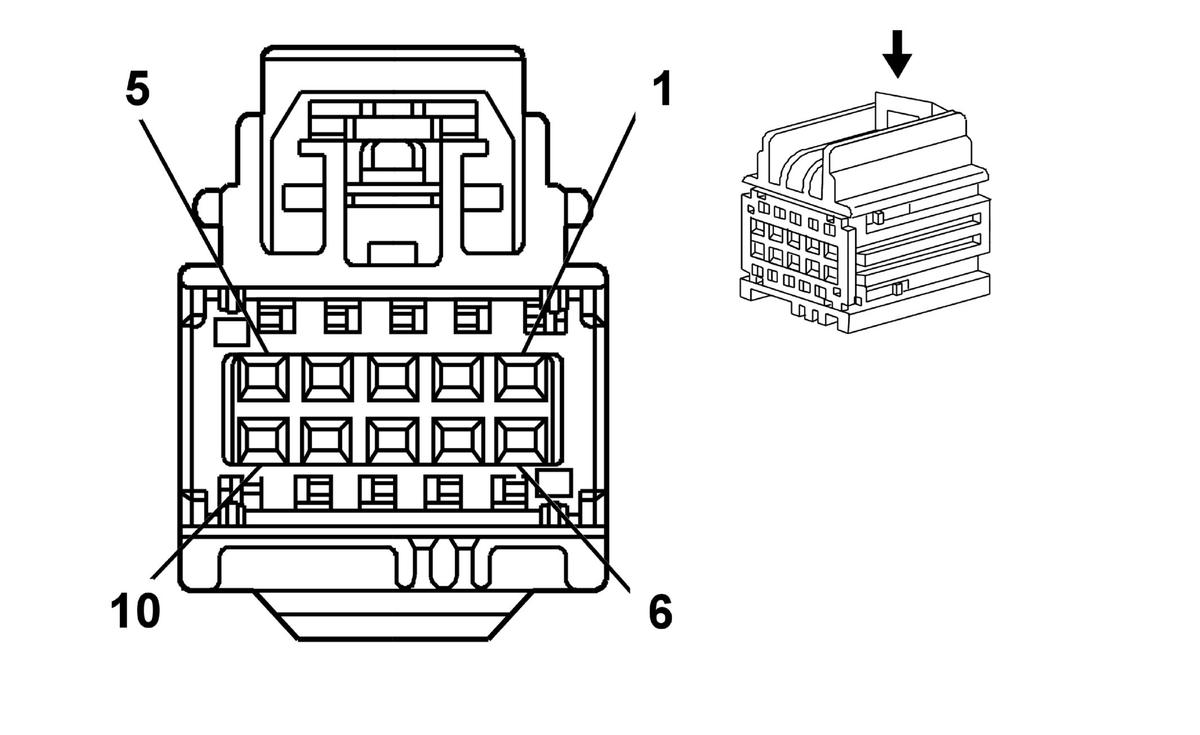

Fig 1: Heated Seat Control Module C3 (KA1) Connector End View
GM1664581Courtesy of GENERAL MOTORS CORP.
Heated Seat Control Module C3 (KA1) Connector Parts Information

Connector Part Information
  • OEM: 7283-9040
  • Service: Service by Harness - See Part Catalog
  • Description: 10-Way F (BK)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
Heated Seat Control Module C3 (KA1) Connector Terminal Identification

Pin Wire Color Circuit No. Function
1-5 - - Not Used
6 D/GN 5060 Ground
7-10 - - Not Used
