Output Speed Sensor Replacement

Output Speed Sensor Replacement

Removal Procedure
1. Remove the battery tray.

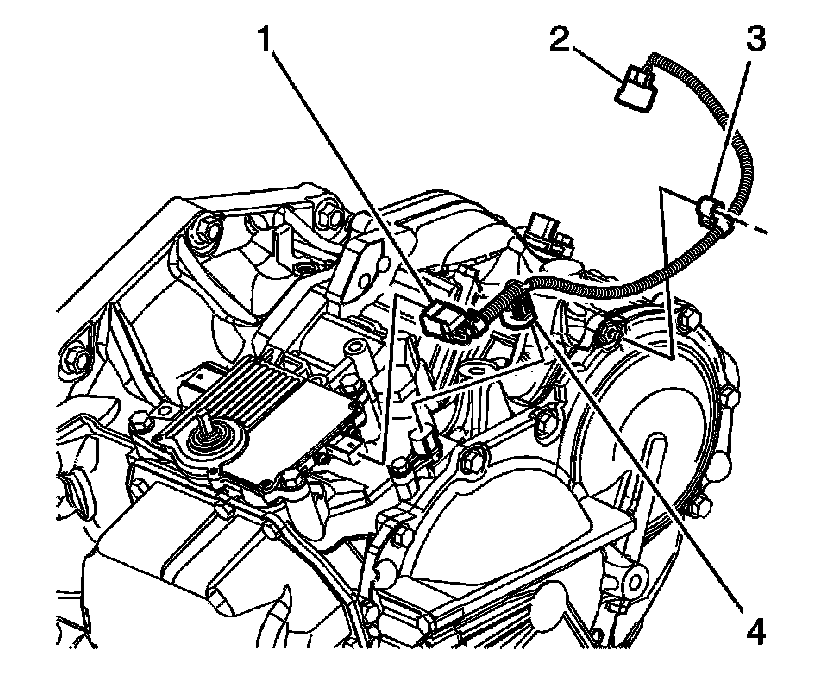

2. Disconnect the electrical connector (2) from the output shaft speed sensor.

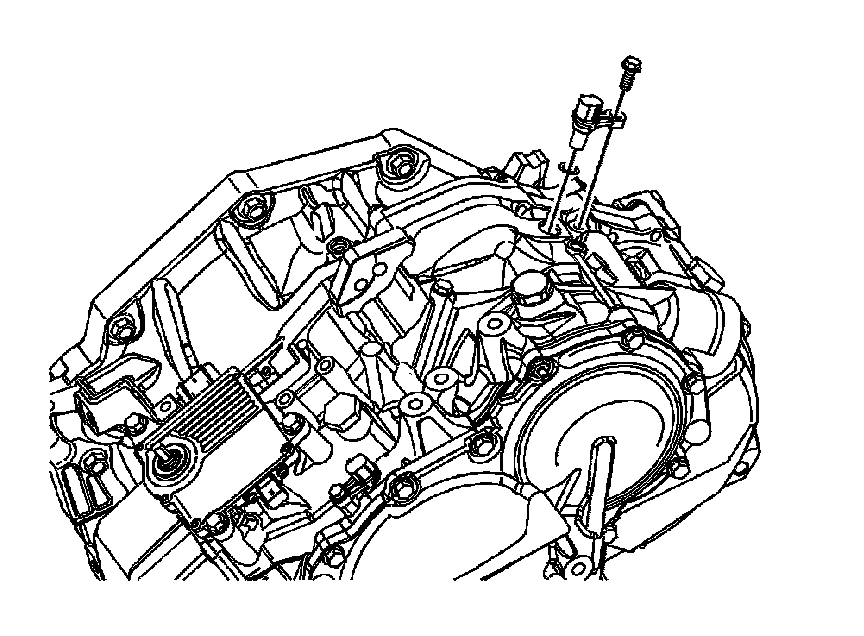

3. Remove the output speed sensor bolt.
4. Remove the output shaft speed sensor and the O-ring

Installation Procedure





1. Apply GM T-IV automatic transaxle fluid GM P/N 88900925 to the new output speed sensor O-ring.

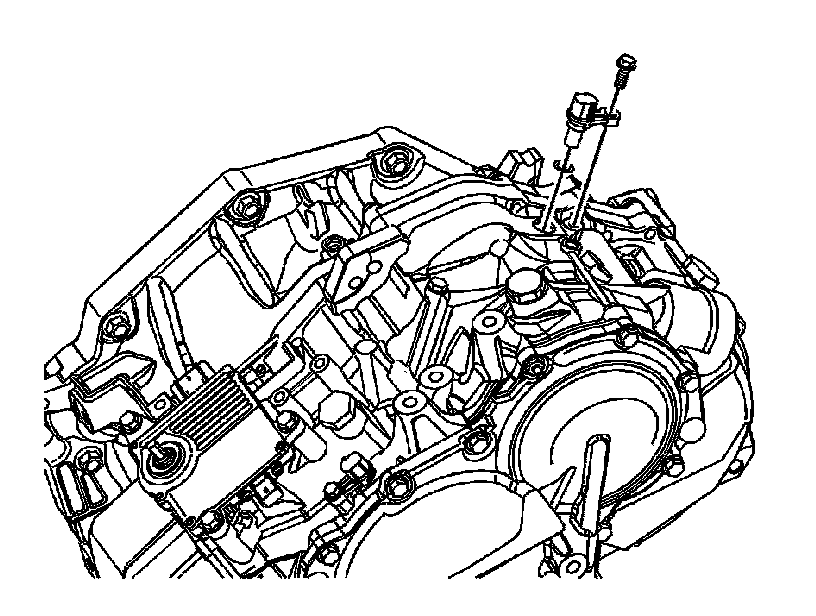

2. Install the new output speed sensor O-ring onto the output speed sensor (2).
3. Install the output speed sensor into the transmission case assembly.

CAUTION:
Refer to Fastener Notice]

4. Install the output speed sensor bolt.
Tightening torque
Tighten the bolt to 6 Nm (53 in. lbs.).

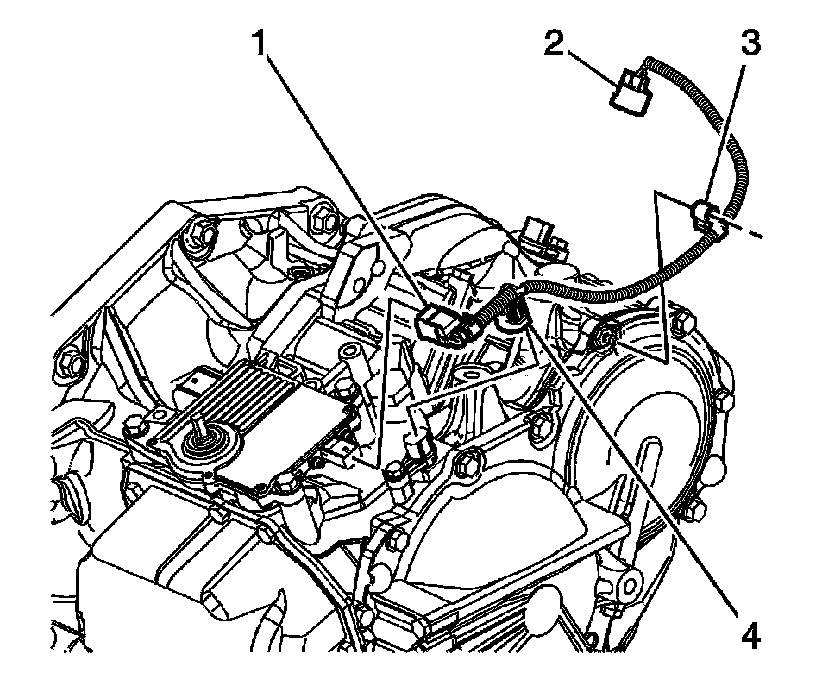

5. Connect the electrical connector (2) to the output shaft speed sensor.
6. Install the battery tray.
