Transaxle Brace Replacement

Transaxle Brace Replacement

Removal Procedure
1. Raise and support the vehicle.

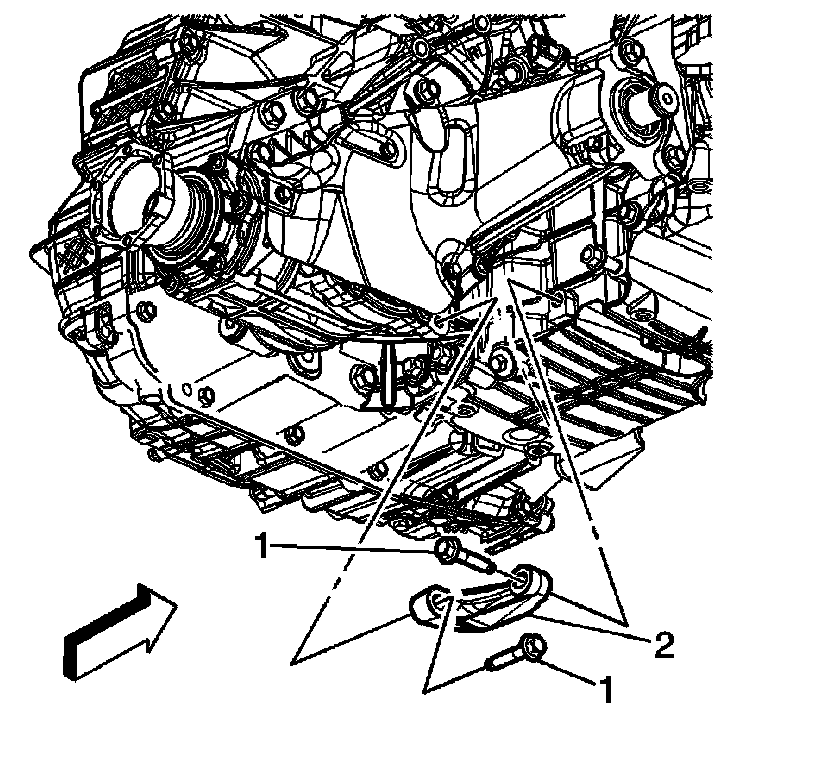

2. Remove the transaxle brace bolts (1).
3. Remove the transaxle brace (2).

Installation Procedure





CAUTION:
Refer to Fastener Notice]

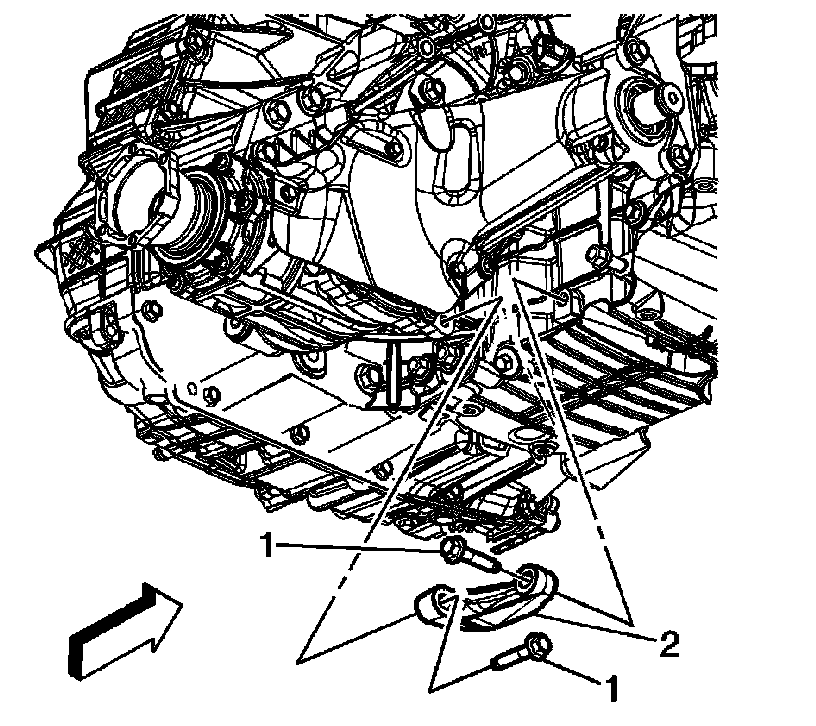

1. Install the transaxle brace (32).
2. Install the transaxle brace bolts (1).
Tightening torque
Tighten the bolts to 50 Nm(37 ft. lbs.)
3. Lower the vehicle.
