Transmission Control Bracket Replacement

Transmission Control Bracket Replacement

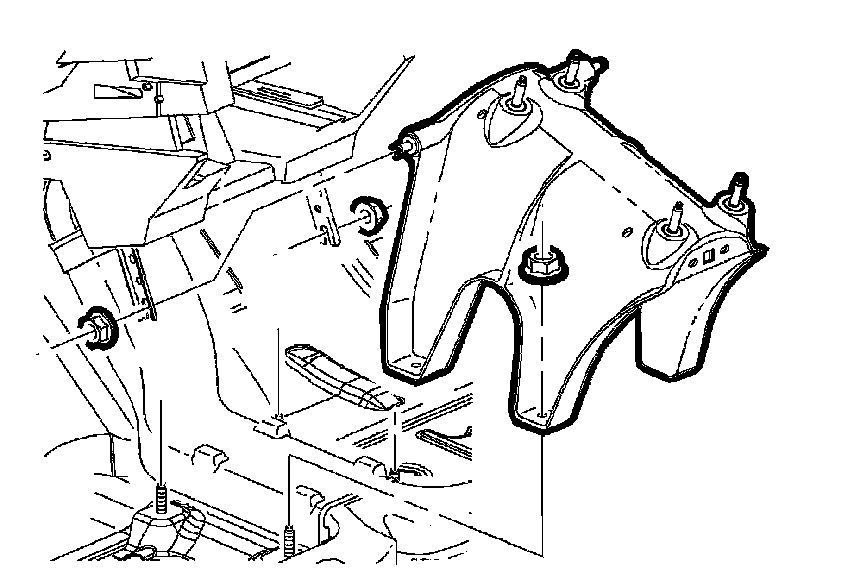

Removal Procedure





1. Remove the control assembly.
2. Remove the transaxle control bracket and bolts.

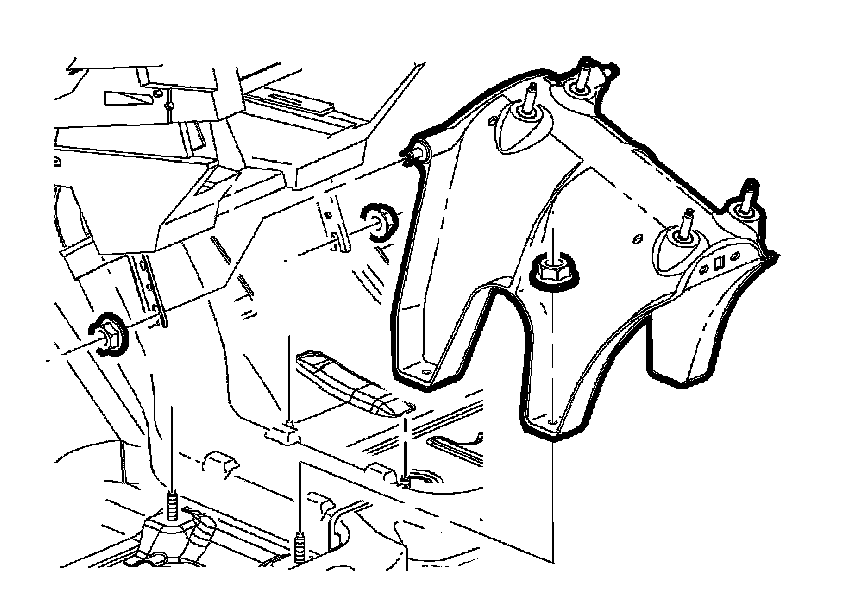

Installation Procedure





1. Install the transaxle control bracket.

CAUTION:
Refer to [Fastener Notice]

2. Install the transaxle control bracket bolts.
Tightening torque
Tighten the transaxle control bracket bolts to 25 Nm (18 ft. lbs.).
3. Install the control assembly.
