Transmission Fluid Baffle Removal

Transmission Fluid Baffle Removal

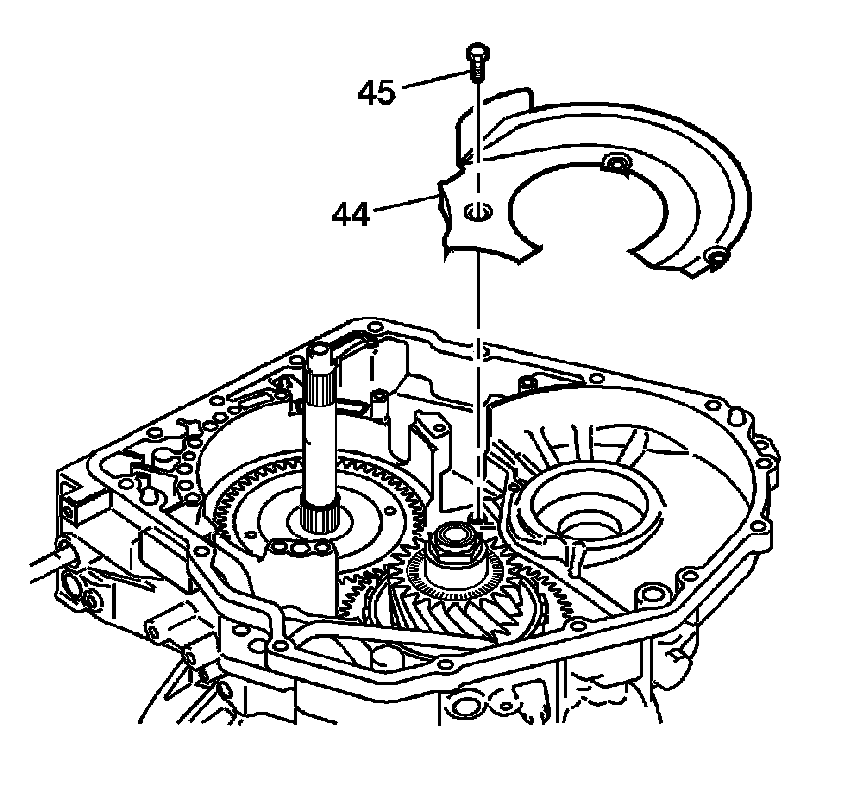

1. Remove the 3 transmission fluid baffle bolts/screws (45).
2. Remove the automatic transmission fluid baffle (44).
3. Inspect the automatic transmission fluid baffle and the bolts/screws.

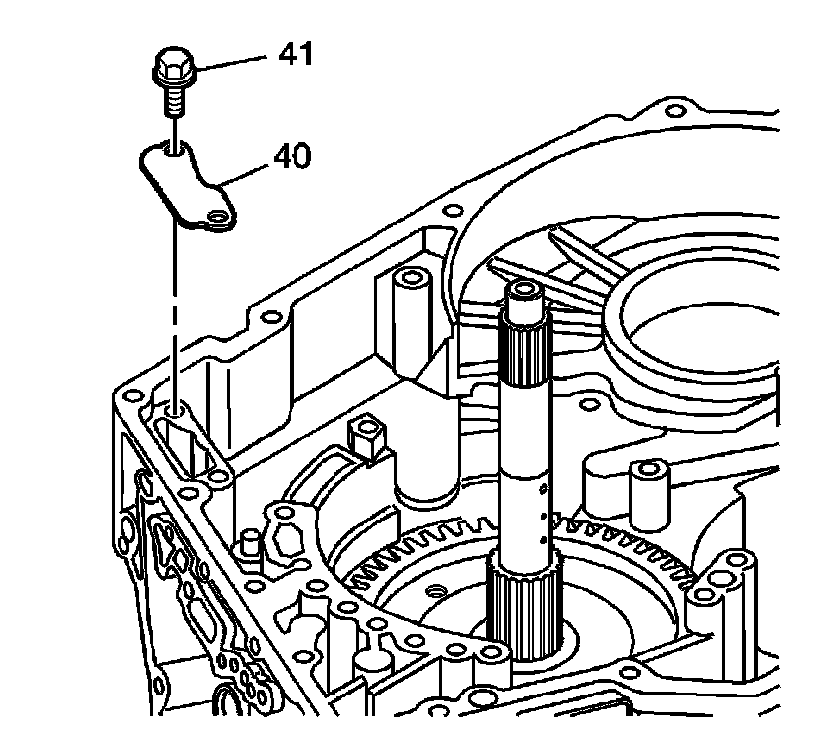

4. Remove the 2 automatic transmission case fluid passage cover bolts/screws (41).
5. Remove the automatic transmission case fluid passage cover (40).
