Transmission Fluid Baffle Installation

Transmission Fluid Baffle Installation

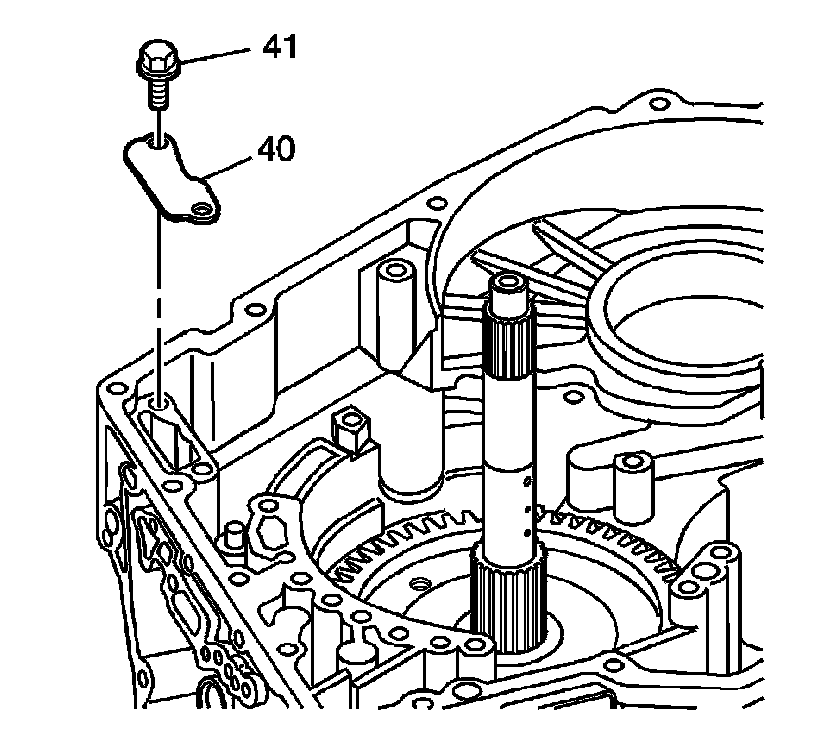

1. Install the transmission case fluid passage cover (40).

CAUTION:
Refer to [Fastener Notice]

2. Install the 2 - M6 x 1.0 x 14 mm transmission case fluid passage cover bolts (41).
Tightening torque
Tighten the transmission case fluid passage cover bolts to 5 Nm (44 in. lbs.).

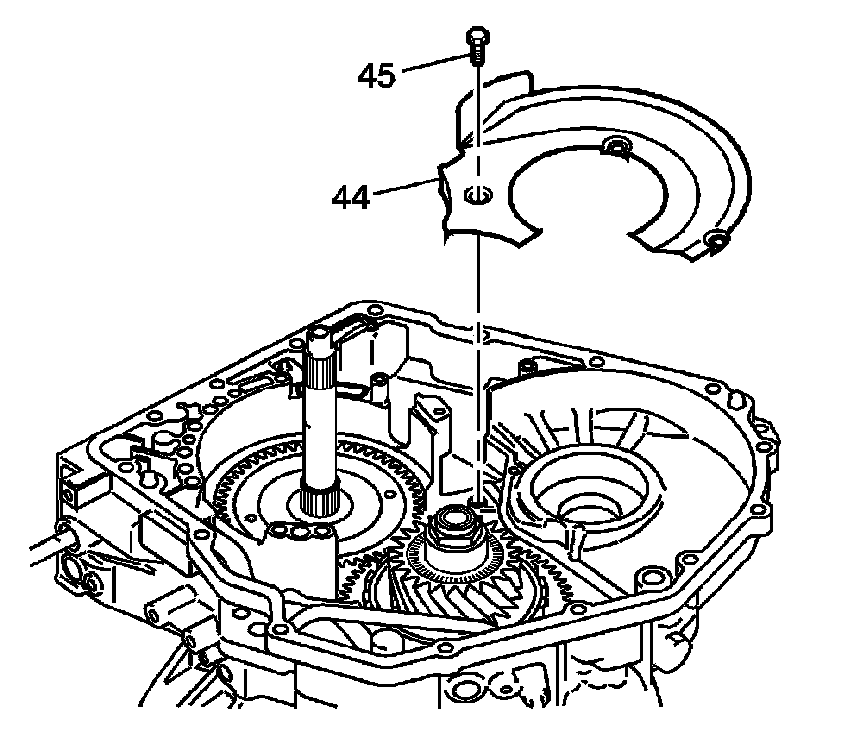

3. Install the transmission fluid baffle (44).
4. Install the 3 - M6 x 1.0 x 14 mm transmission fluid baffle bolts (45).
Tightening torque
Tighten the transmission fluid baffle bolts to 5 Nm (44 in. lbs.).
