Torque Converter Assembly Removal

Torque Converter Assembly Removal

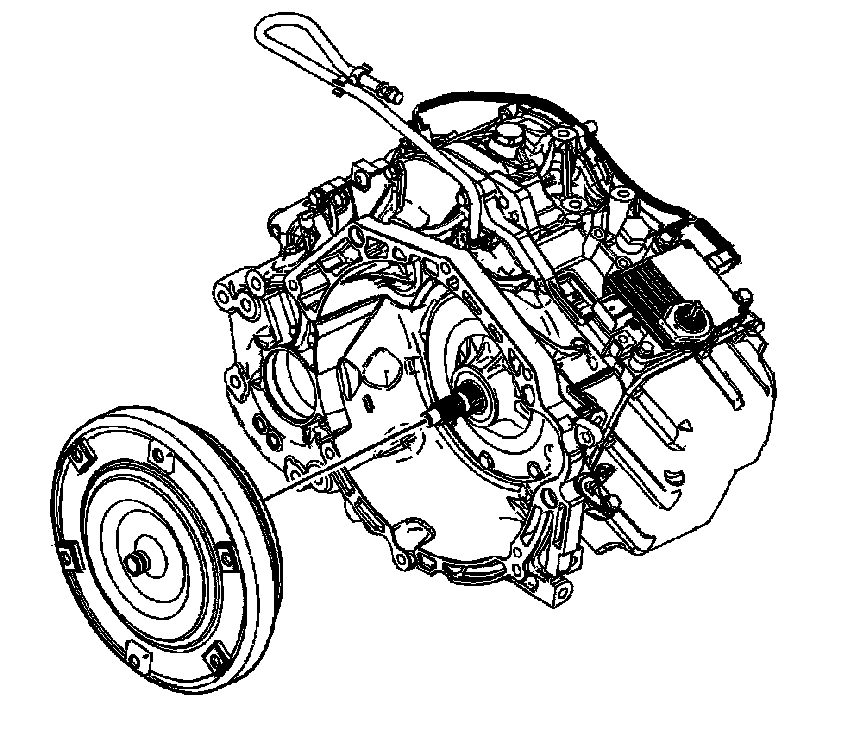

1. Remove the torque converter assembly.
2. Inspect the torque converter assembly for the following:
^ External damage
^ Metal particles found after flushing the oil cooler and the cooler lines
^ External leaks in the hub weld area
^ The torque converter pilot is damaged or fits poorly into the crankshaft
^ Internal failure of the stator roller clutch
^ Contamination from the engine coolant
^ Excessive end play
