Third Gear Band Assembly Installation

Third Gear Band Assembly Installation

Special Tool
DT-47599 Anchor Bolt Socket

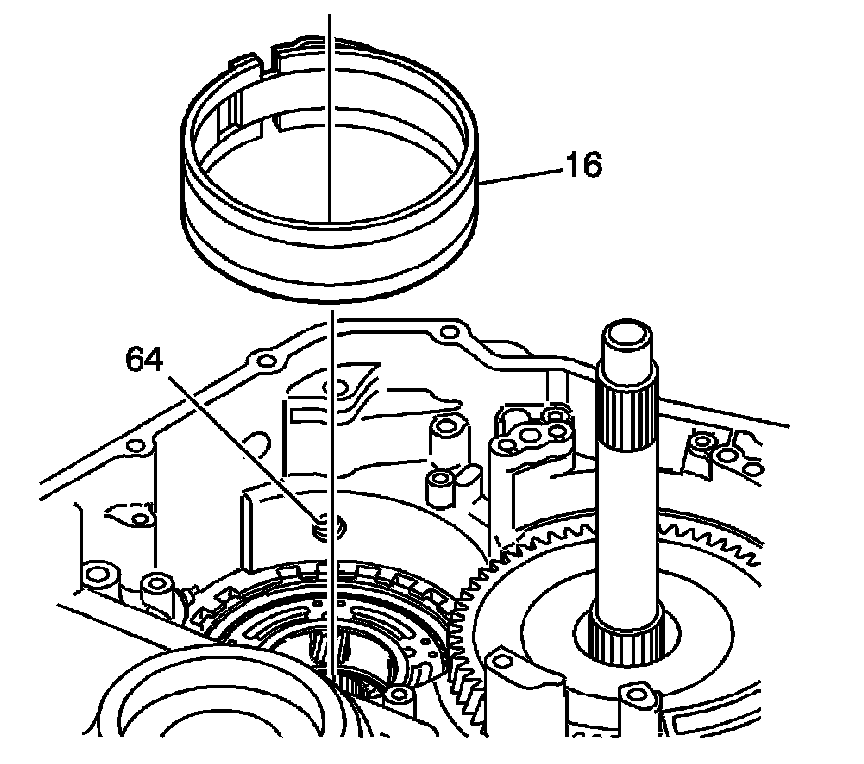

1. Install the third gear band assembly (16) into the transmission case assembly making sure that the band tangs are located at the servo pin.

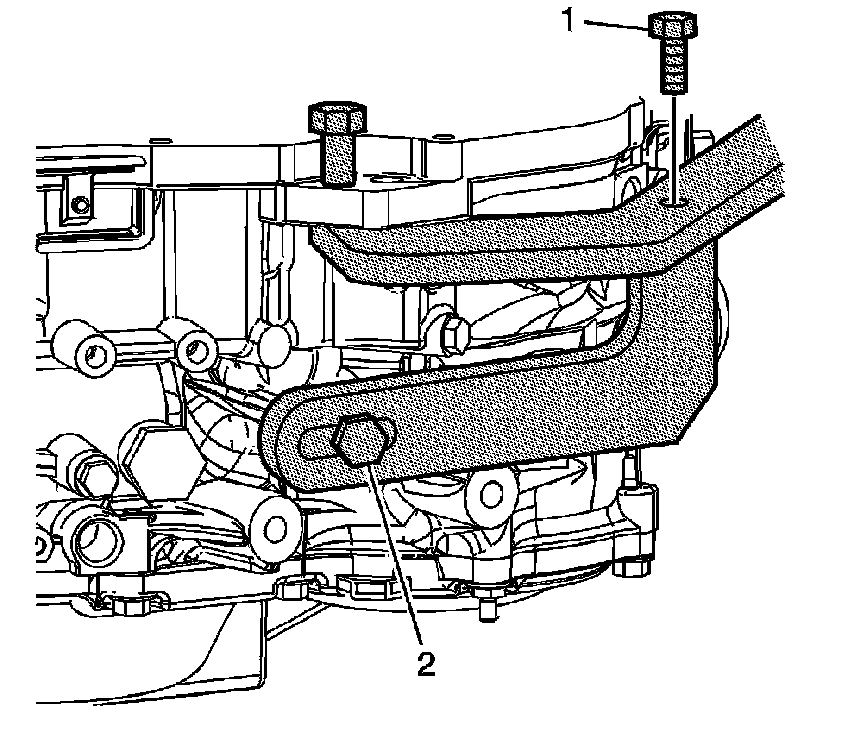

2. Remove the bolt (1) from the holding fixture and loosen bolt (2), to allow access.





3. Inspect the anchor bolt and the bolt hole.
4. Apply automatic transmission fluid to a new O-ring (65).

CAUTION:
Refer to [Fastener Notice].

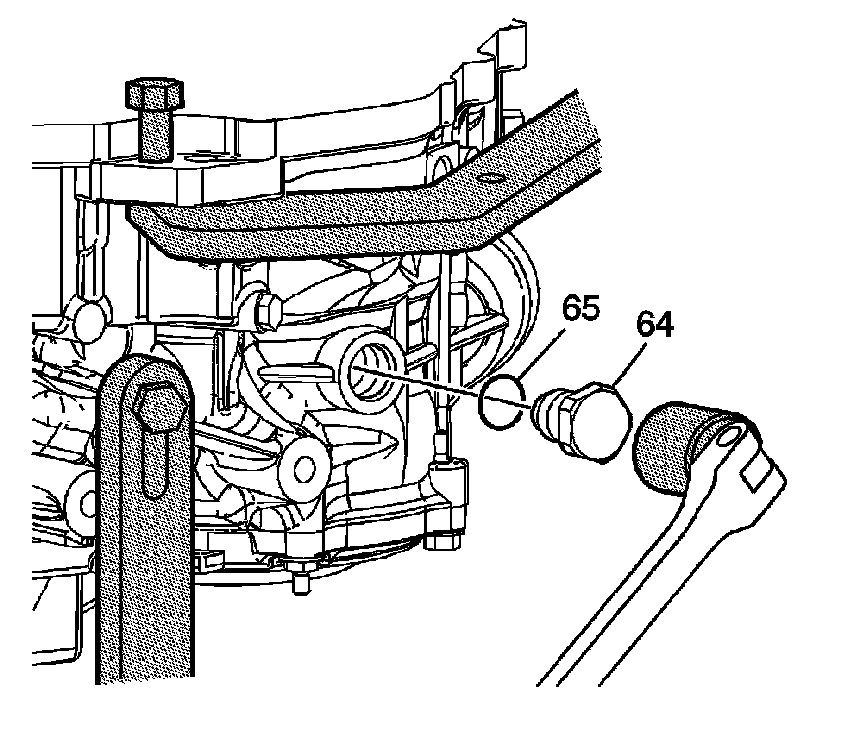

5. Install the new O-ring and third gear band anchor bolt (64) using DT-47599.
Tightening torque
Tighten the anchor bolt to 167 Nm (123 ft. lbs.).

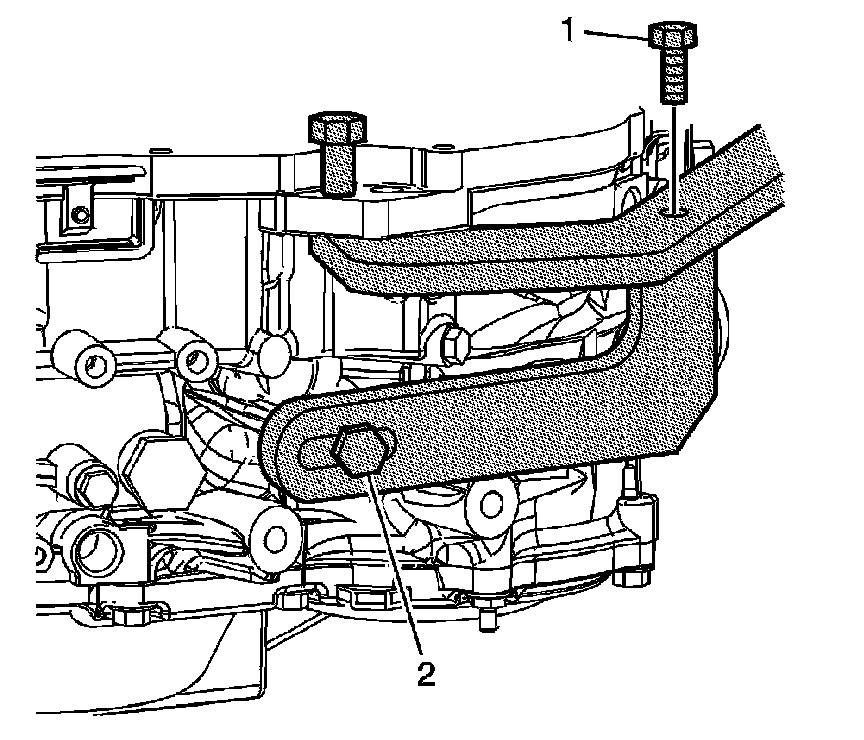

6. Reinstall the holding fixture bolt (1) and tighten bolt (2) for the holding fixture.
