Forward and Direct Clutch Assembly Removal

Forward and Direct Clutch Assembly Removal

Special Tool
J 28585 Snap Ring Remover

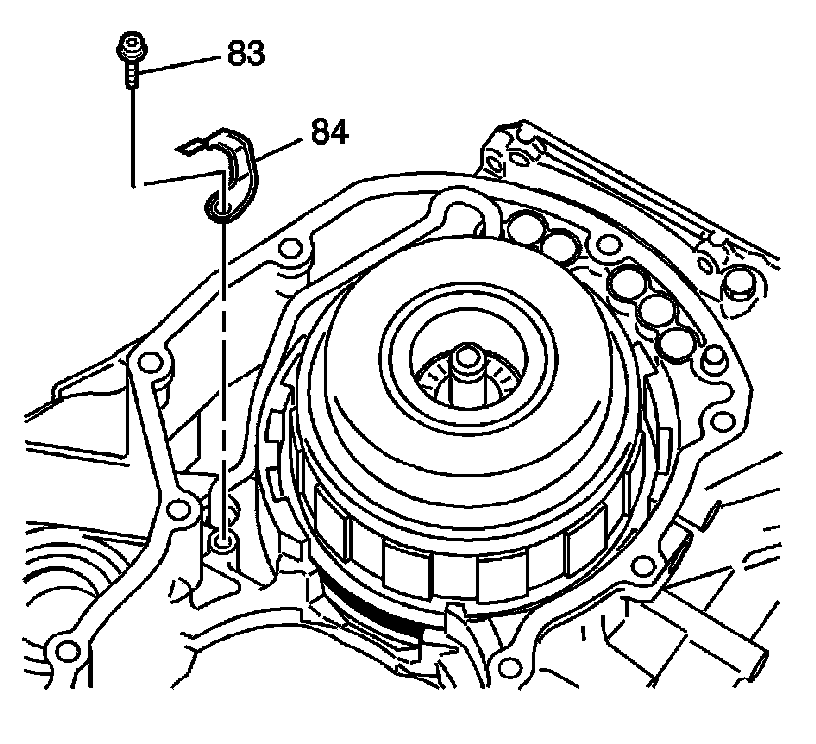

1. Remove the lube fluid pipe retainer bolt/screw (83).
2. Remove the lube fluid pipe retainer (84)





NOTE:
Do not bend or damage the lube fluid pipe.

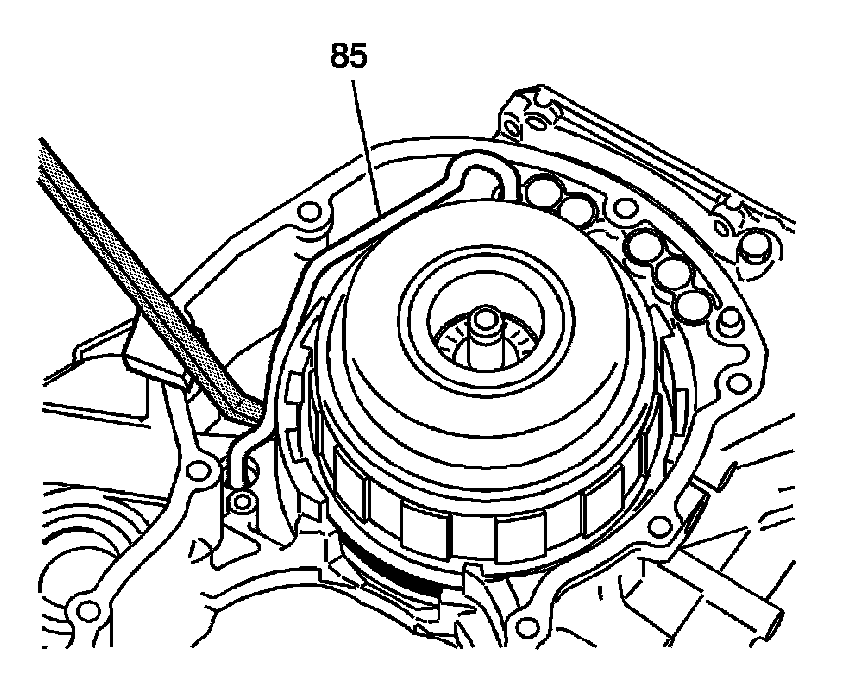

3. Remove the lube fluid pipe (85) with J 28585.

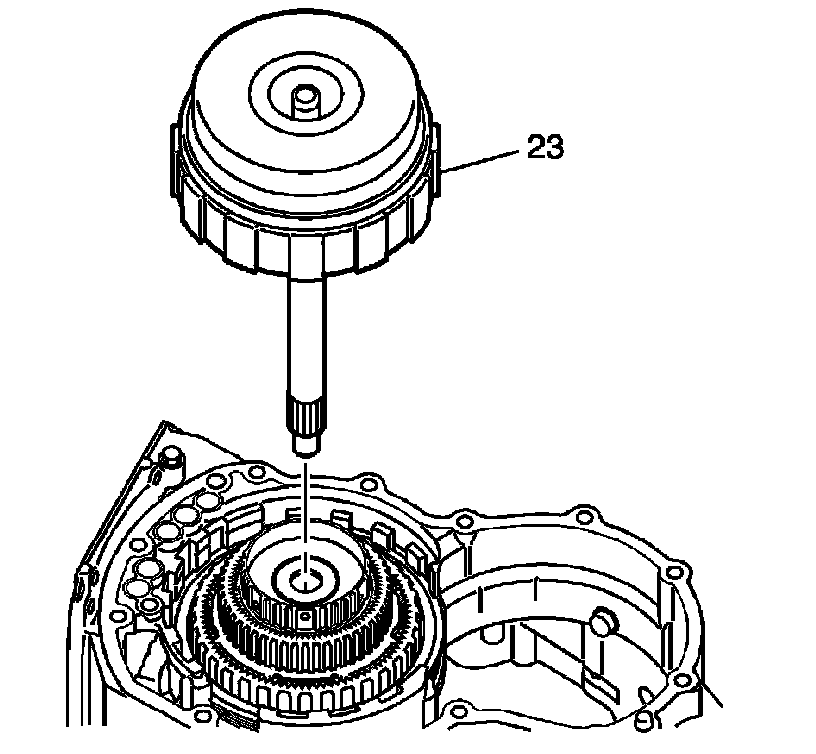

4. Remove the forward and direct clutch assembly (23).
