Seat Belt Systems: Locations

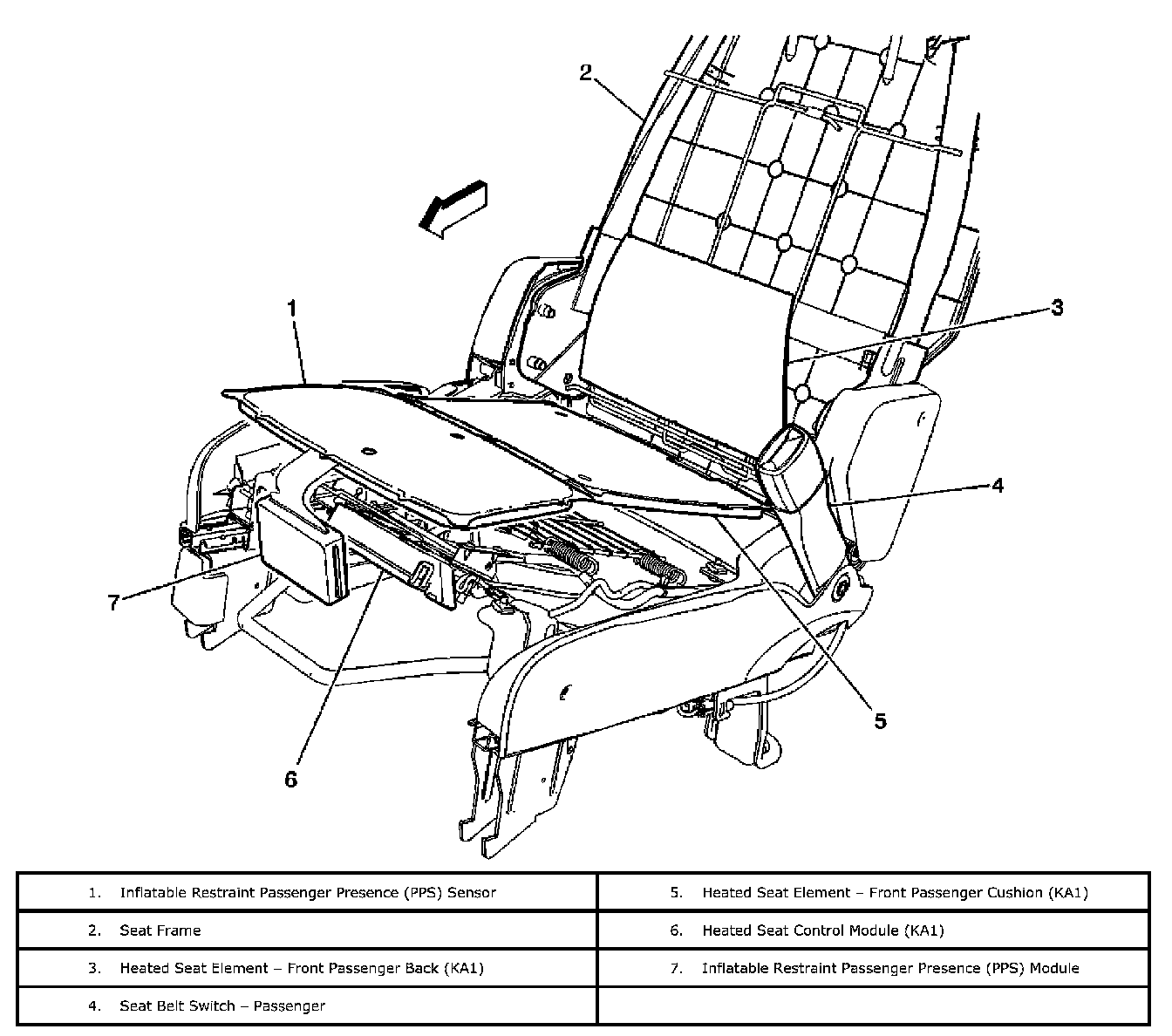

Seat Belt Component Views - Passenger Seat (Manual):

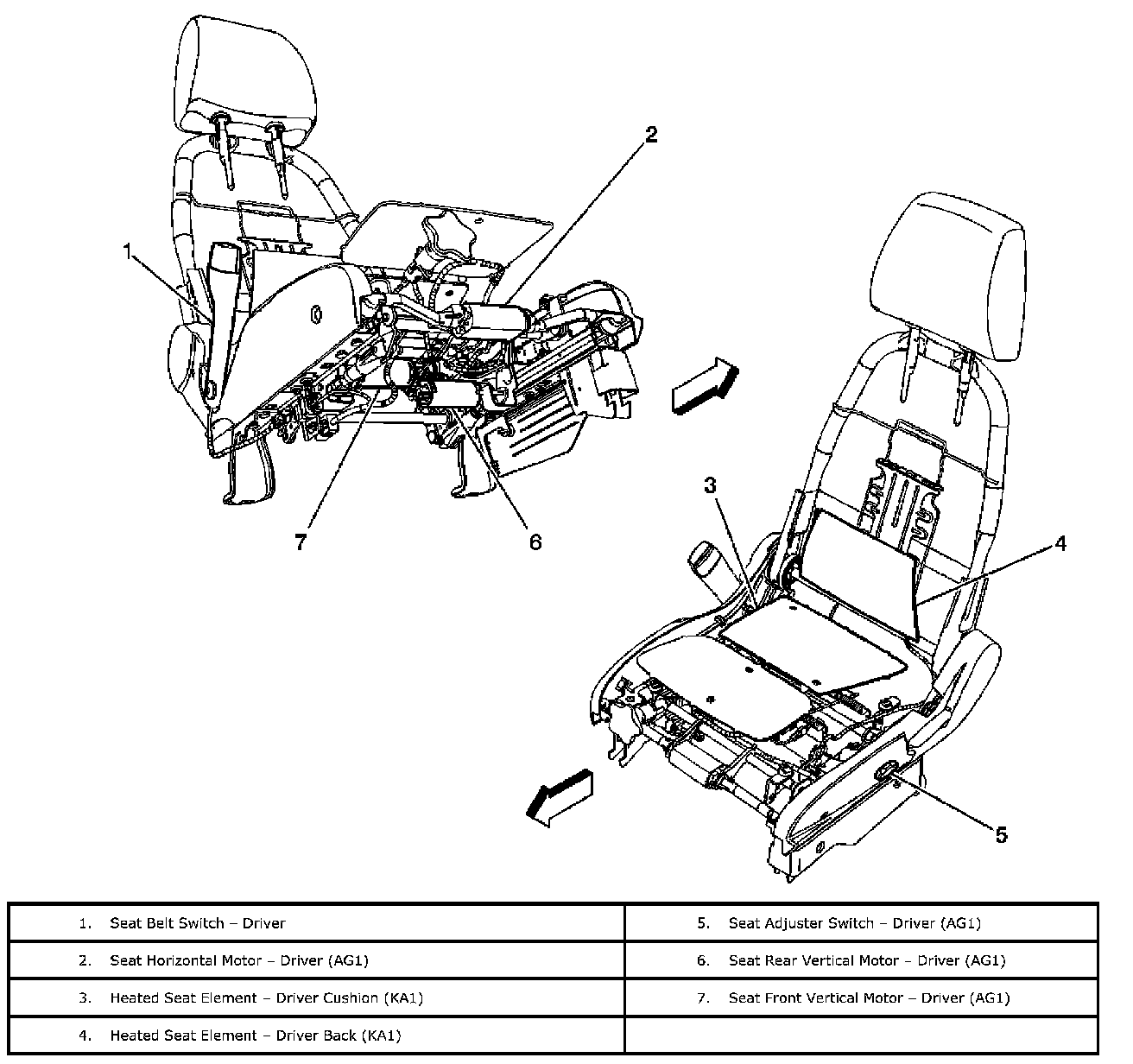

Seat Belt Component Views - Driver Seat:
