Impact Sensor: Locations

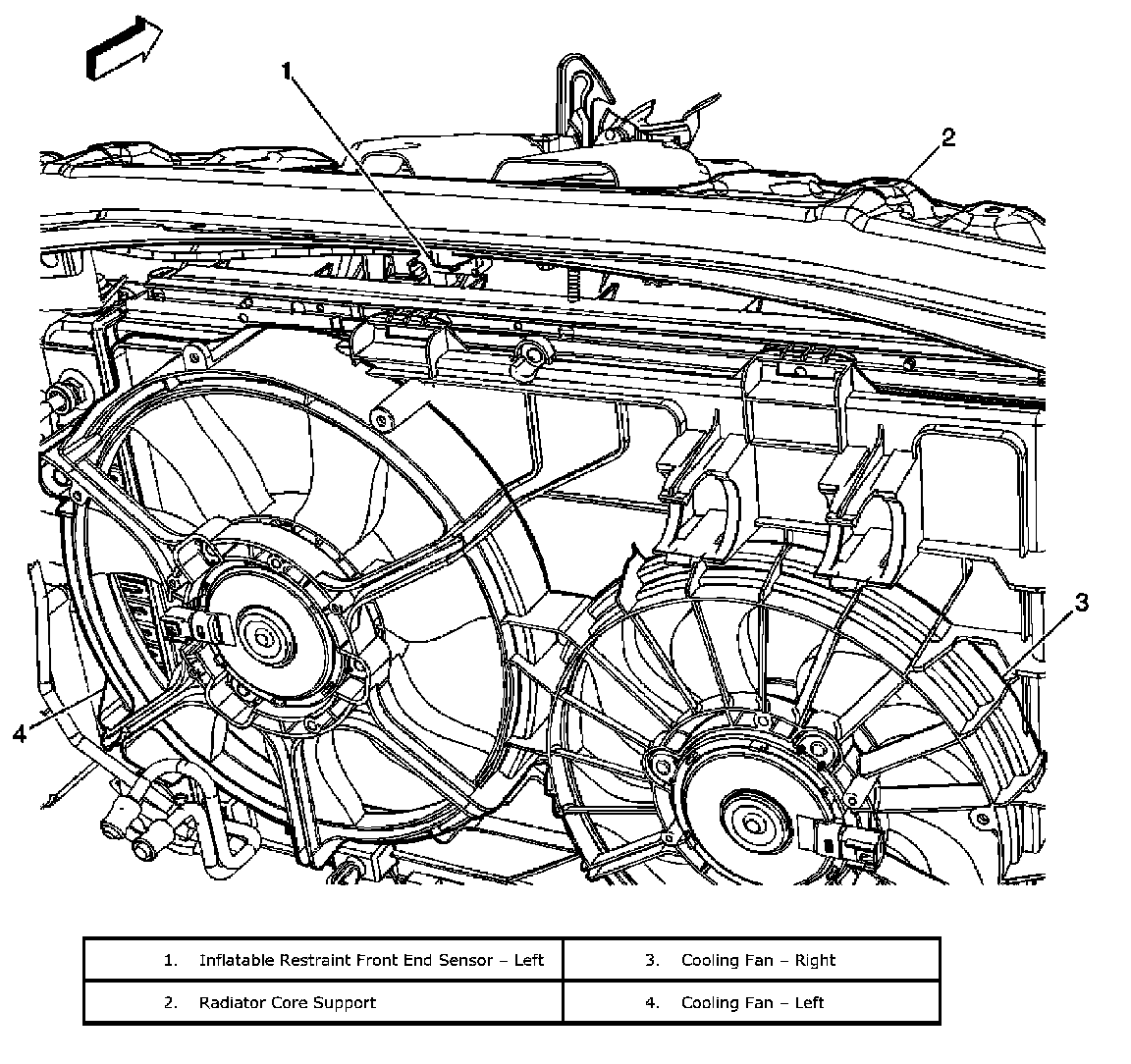

SIR Component Views - Near the Hood Latch:



SIR Component Views - Passenger Seat (Manual):

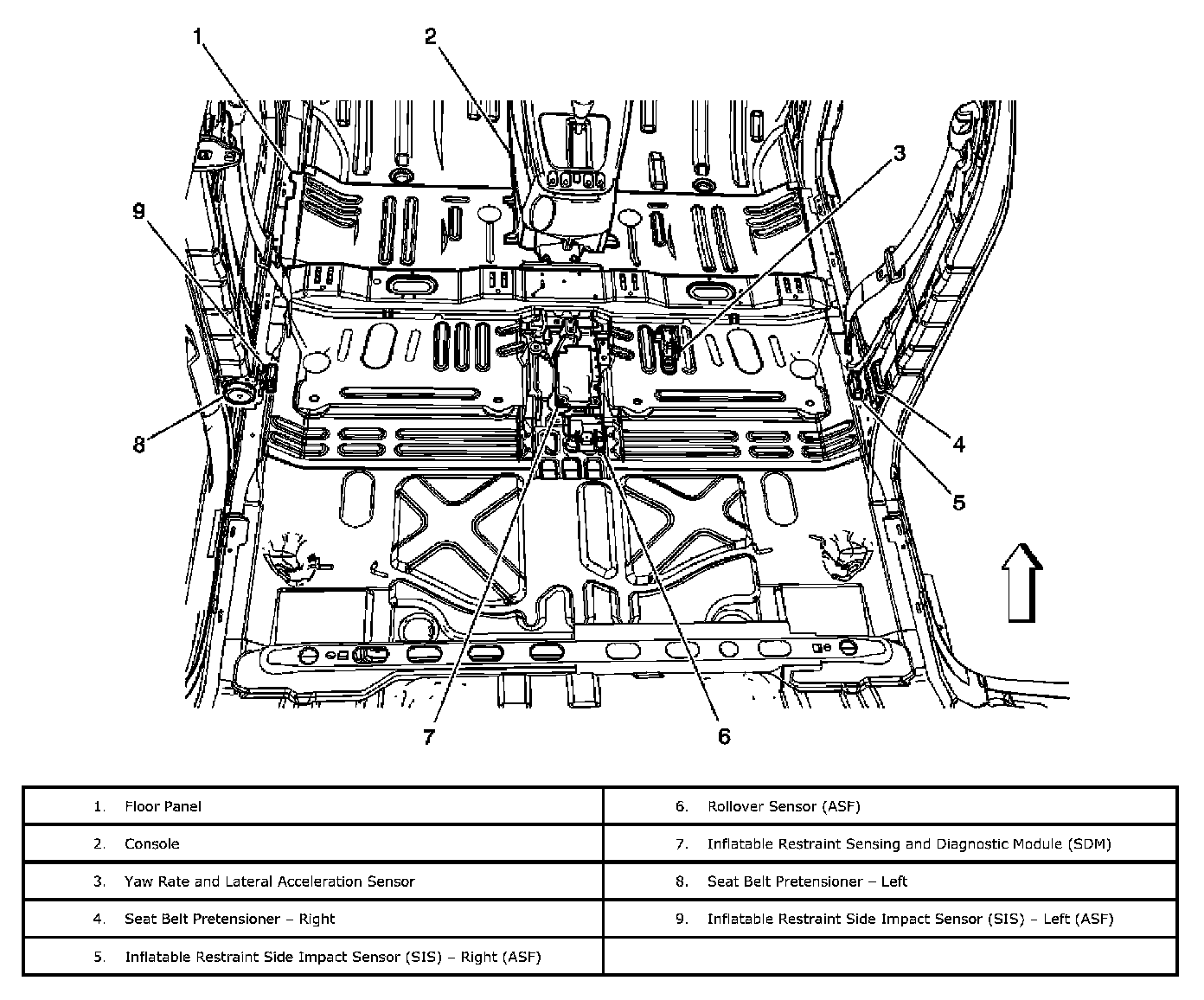

SIR Component Views - Center of the Floor:
