Camshaft Position Sensor Replacement - Bank 1 (Right Side) Intake

Camshaft Position Sensor Replacement - Bank 1 (Right Side) Intake




Removal Procedure

1. Remove the air cleaner assembly. Refer to [Air Cleaner Assembly Replacement].

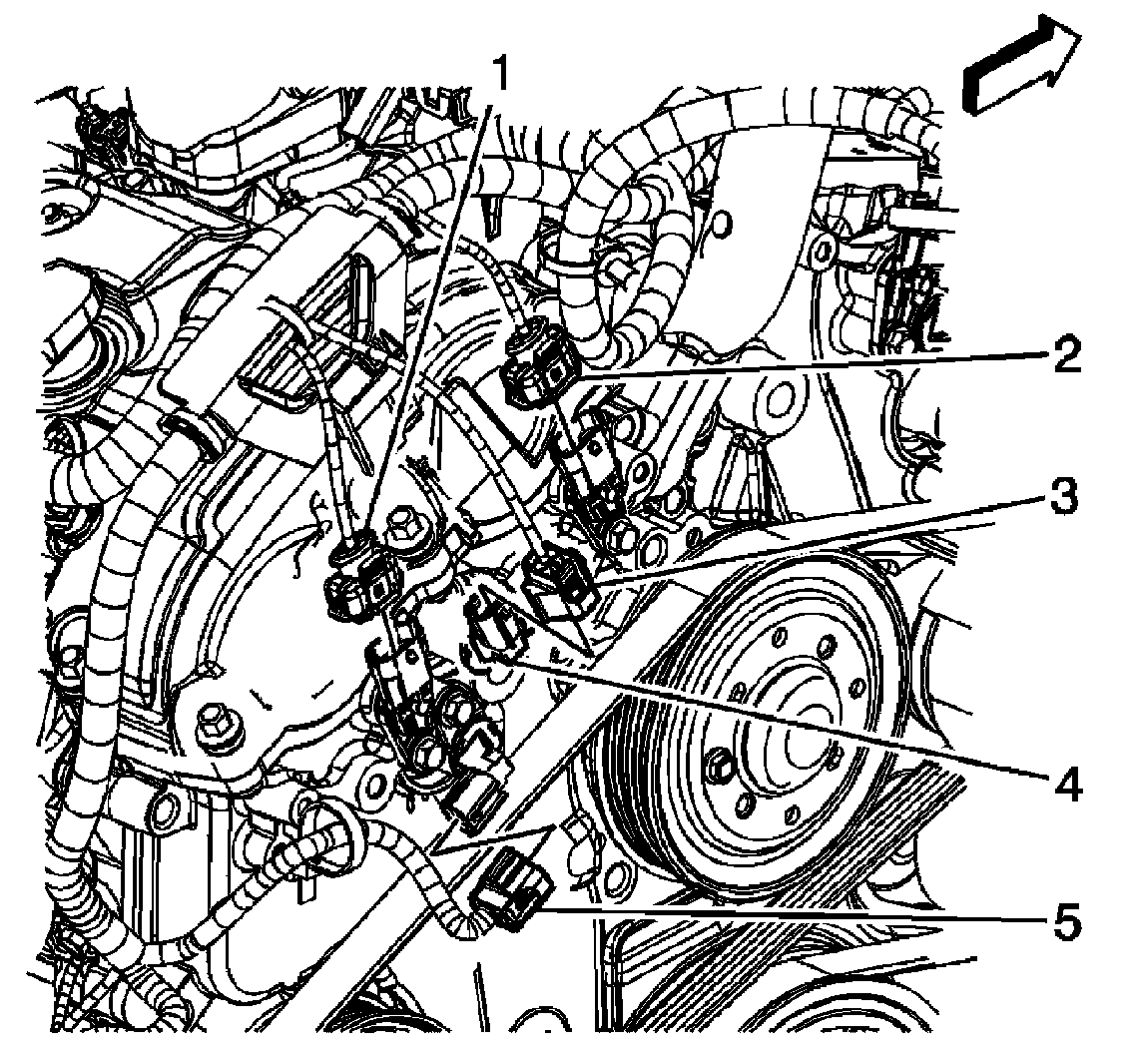

2. Disconnect the engine wiring harness electrical connector (2) from the bank 1 intake camshaft position (CMP) sensor.

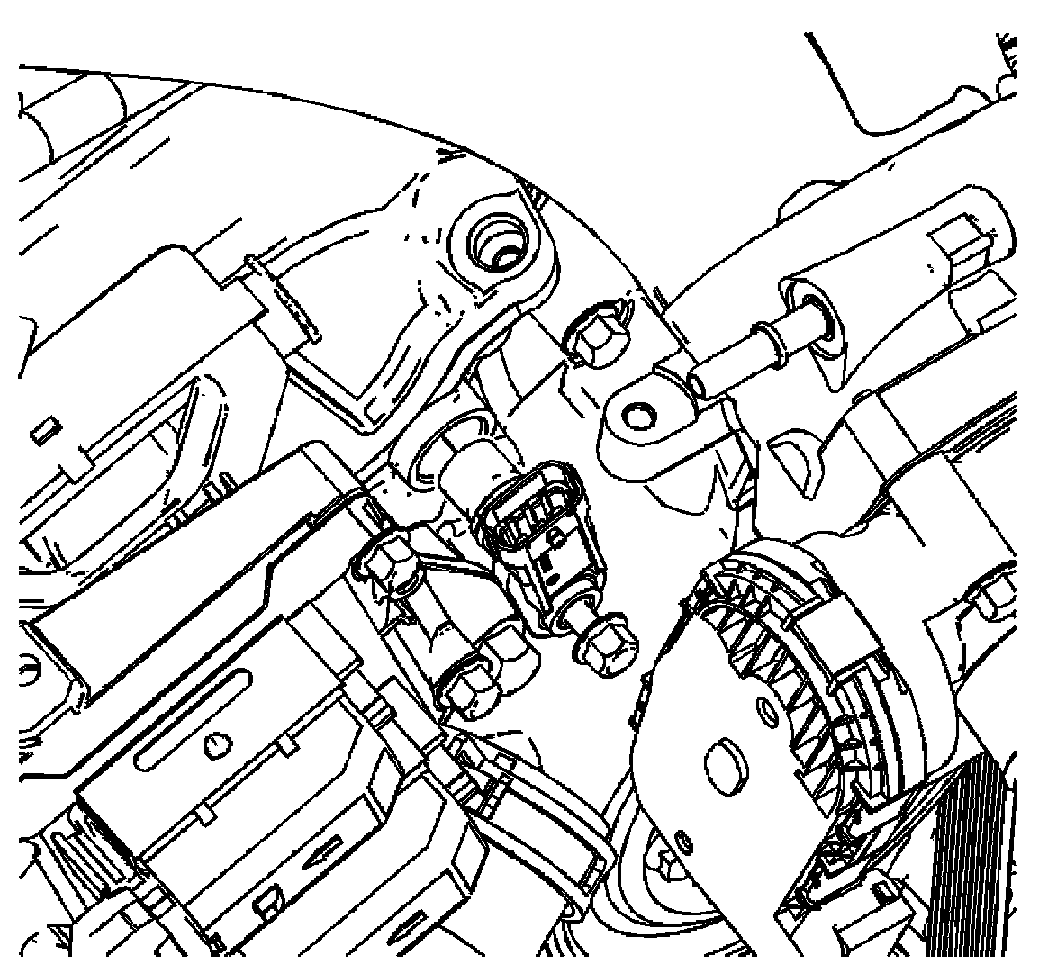

3. Remove the CMP sensor bolt.
4. Remove the CMP sensor.




Installation Procedure
1. Install the CMP sensor.

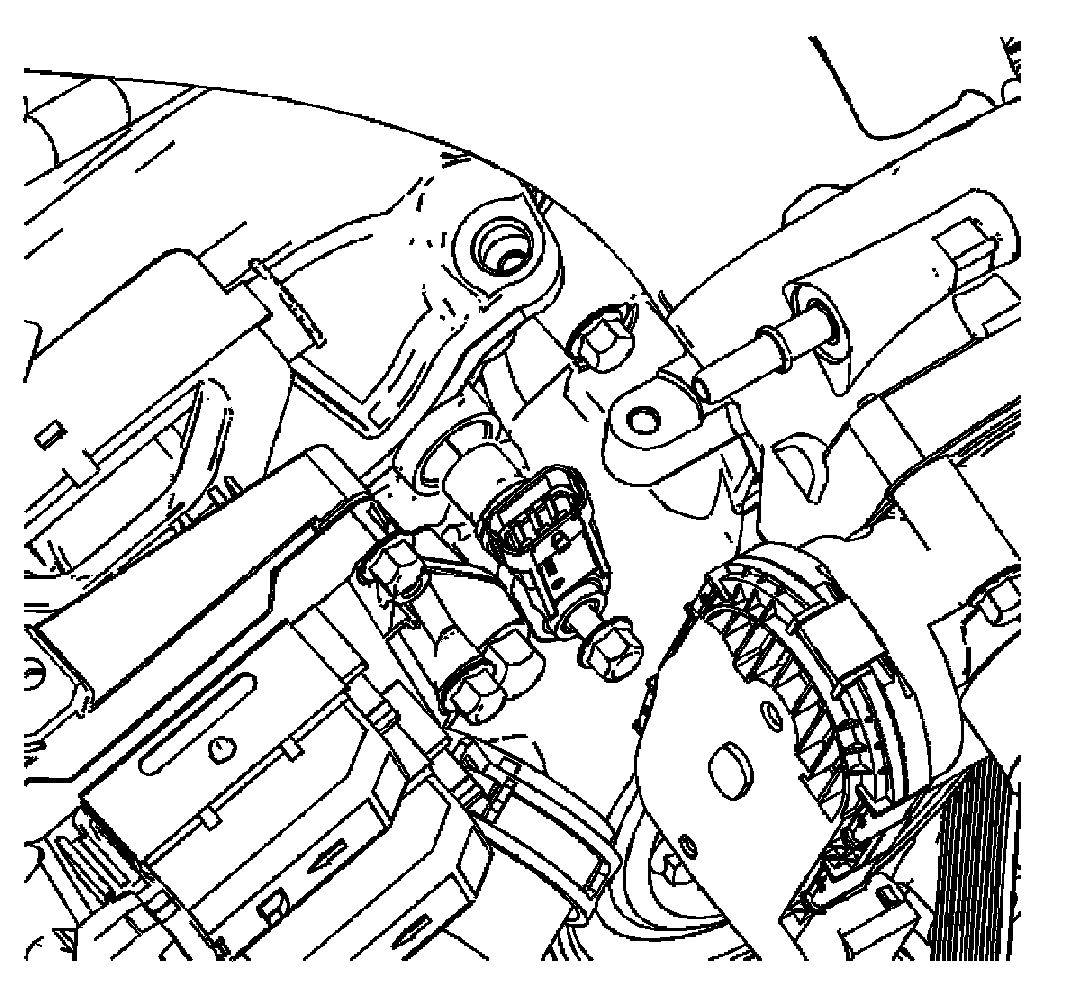

2. Install the CMP sensor bolt.

Tightening torque
Tighten the bolt to 10 N.m (89 lb.in).

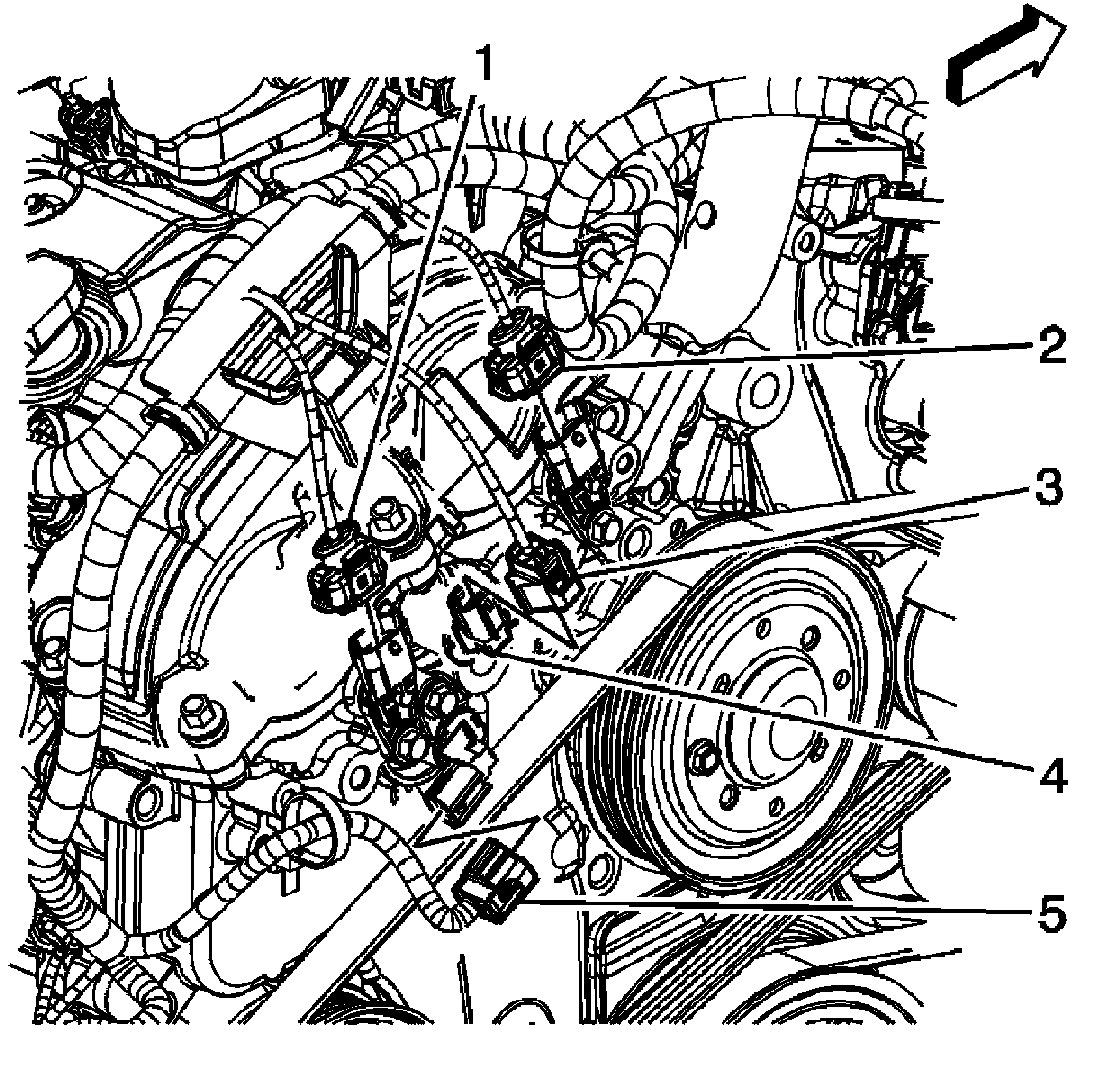

3. Connect the engine wiring harness electrical connector (2) to the bank 1 intake CMP sensor.
4. Install the air cleaner assembly. Refer to [Air Cleaner Assembly Replacement].
