Fuse Block - Underhood

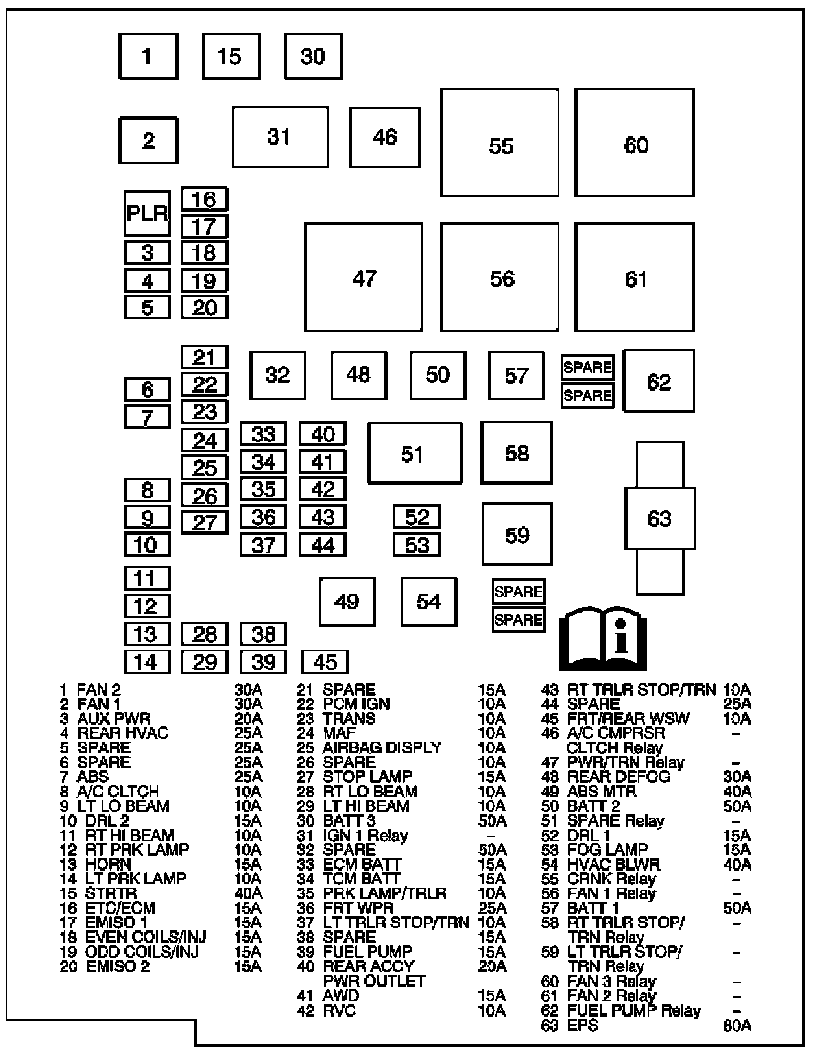

Fuse Block - Underhood Label





Fuse Block - Underhood Label Usage (Part 1):

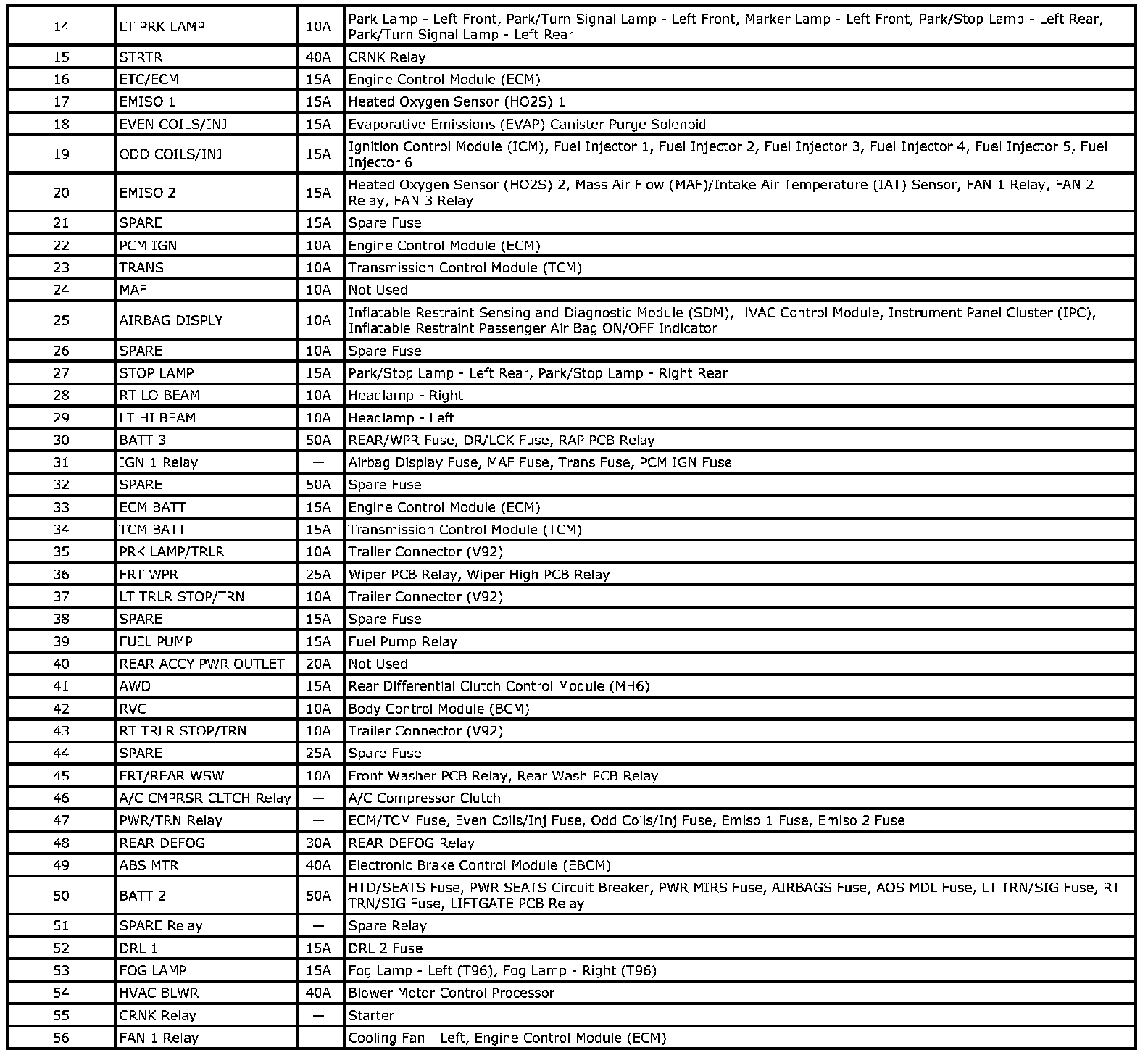

Fuse Block - Underhood Label Usage (Part 2):

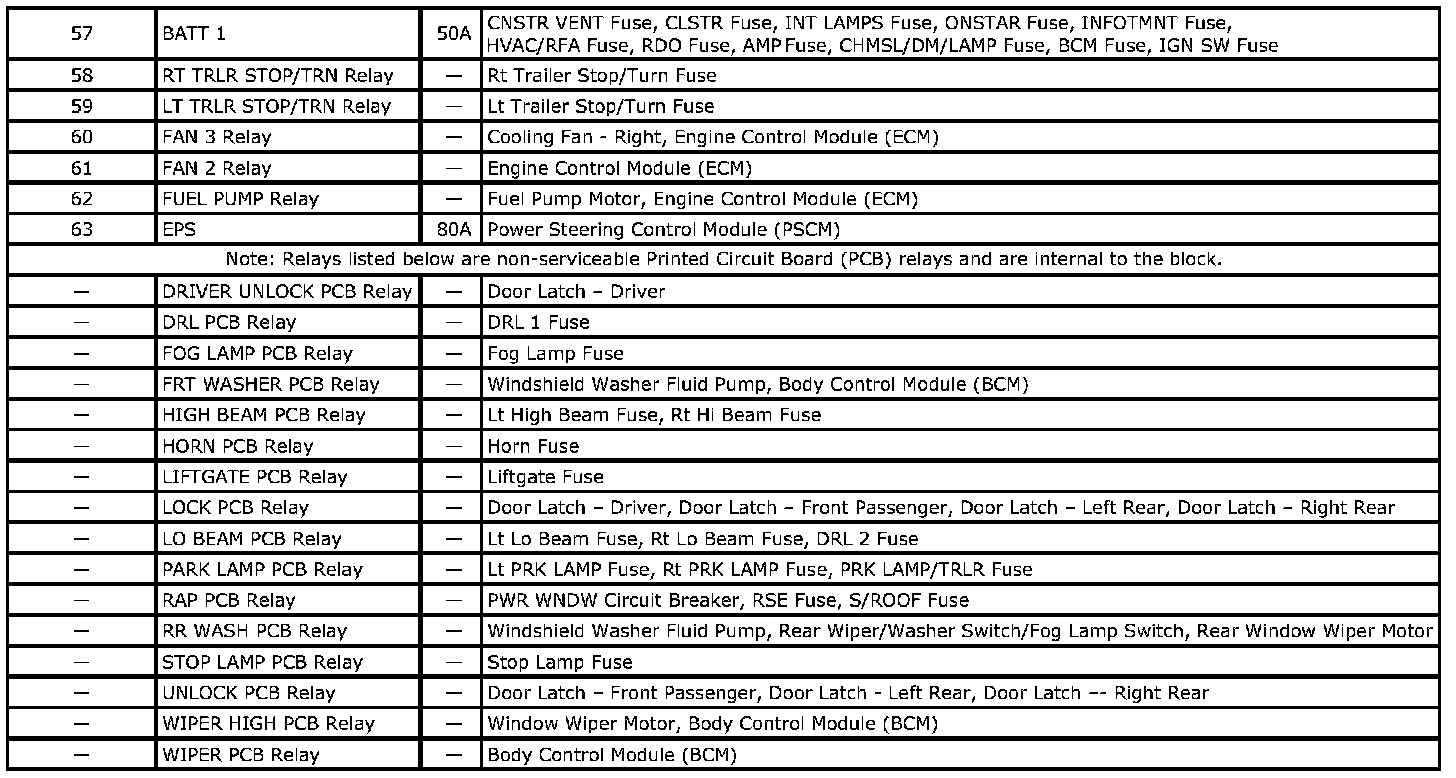

Fuse Block - Underhood Label Usage (Part 3):
