Power Moding Schematics

Power Moding Schematics

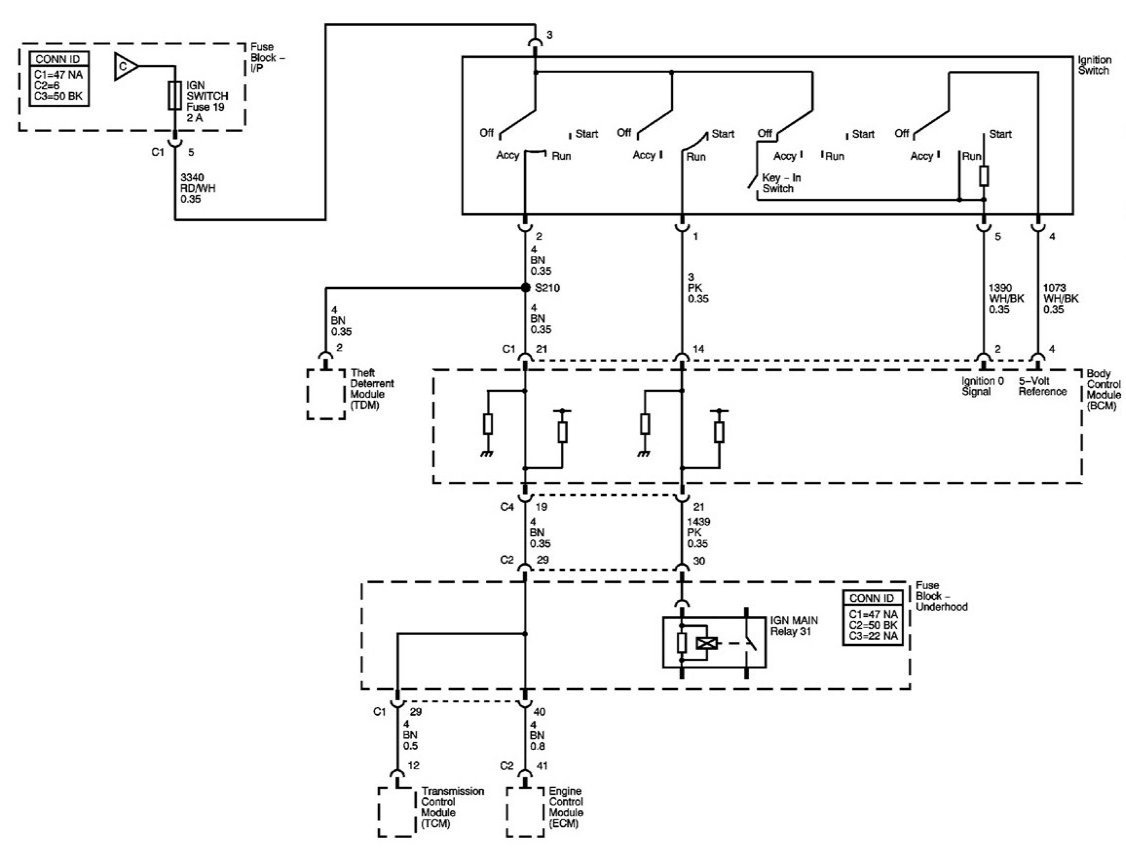

Power Moding Schematics:






Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
