Power Distribution Diagram 8

Power Distribution Schematics

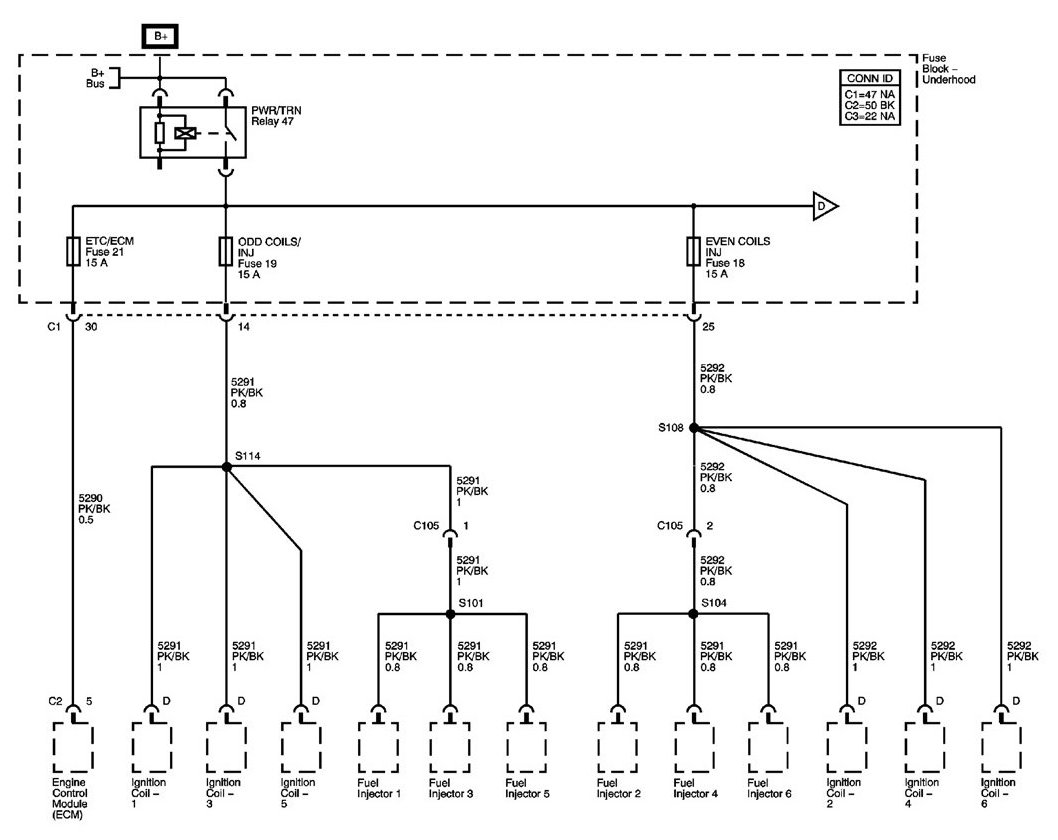

PWR/TRN BUS - ETC/ECM, EVEN COILS/INJ AND ODDCOILS/INJ Fuses

Power Distribution Diagram 8:






Next Diagram: Power Distribution Diagram 9

Previous Diagram: Power Distribution Diagram 7

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
