Power Distribution Diagram 5

Power Distribution Schematics

AOS MODULE, BATT MAIN 2, HTD/SEATS, L/GATE, LT TRN/SIG, PWR MIRS, RT TRN/SIG and SIR Fuses and POWER SEATS Circuit Breaker

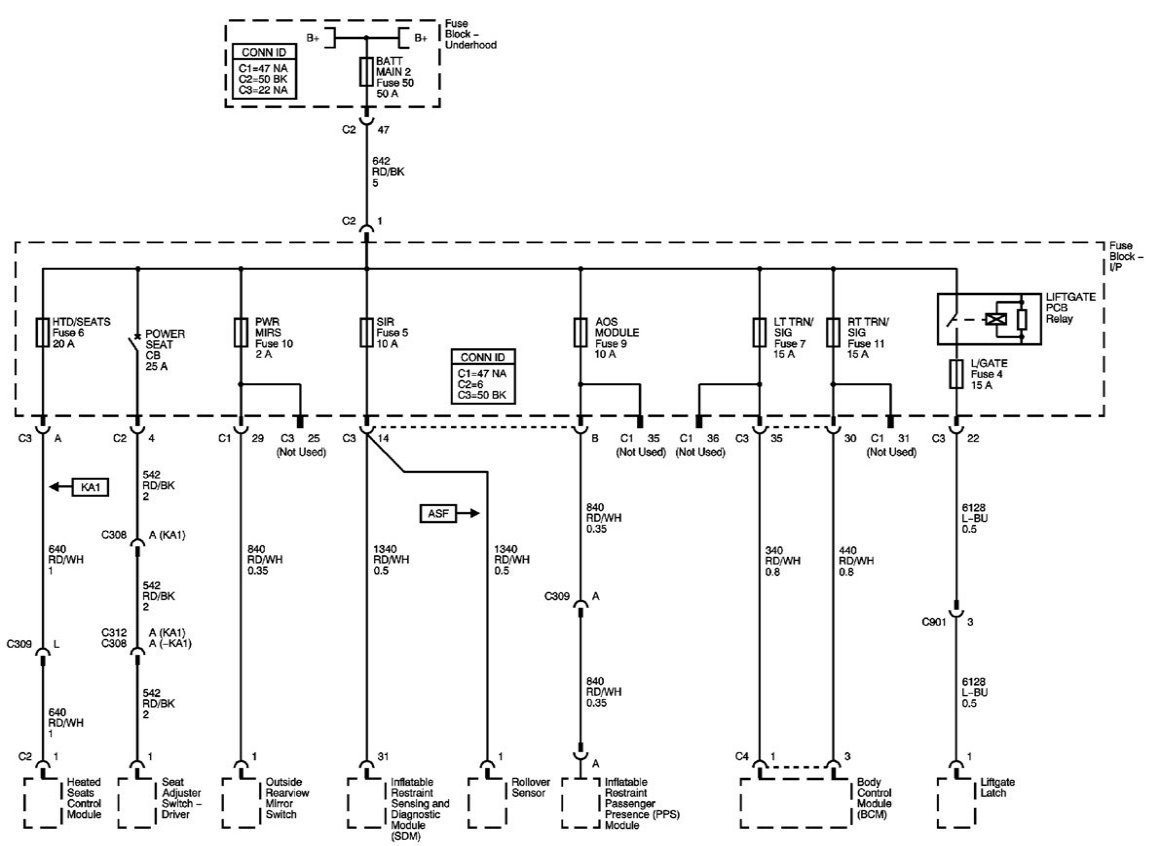

Power Distribution Diagram 5:

Next Diagram: Power Distribution Diagram 6

Previous Diagram: Power Distribution Diagram 4

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
