Power Distribution Diagram 4

Power Distribution Schematics

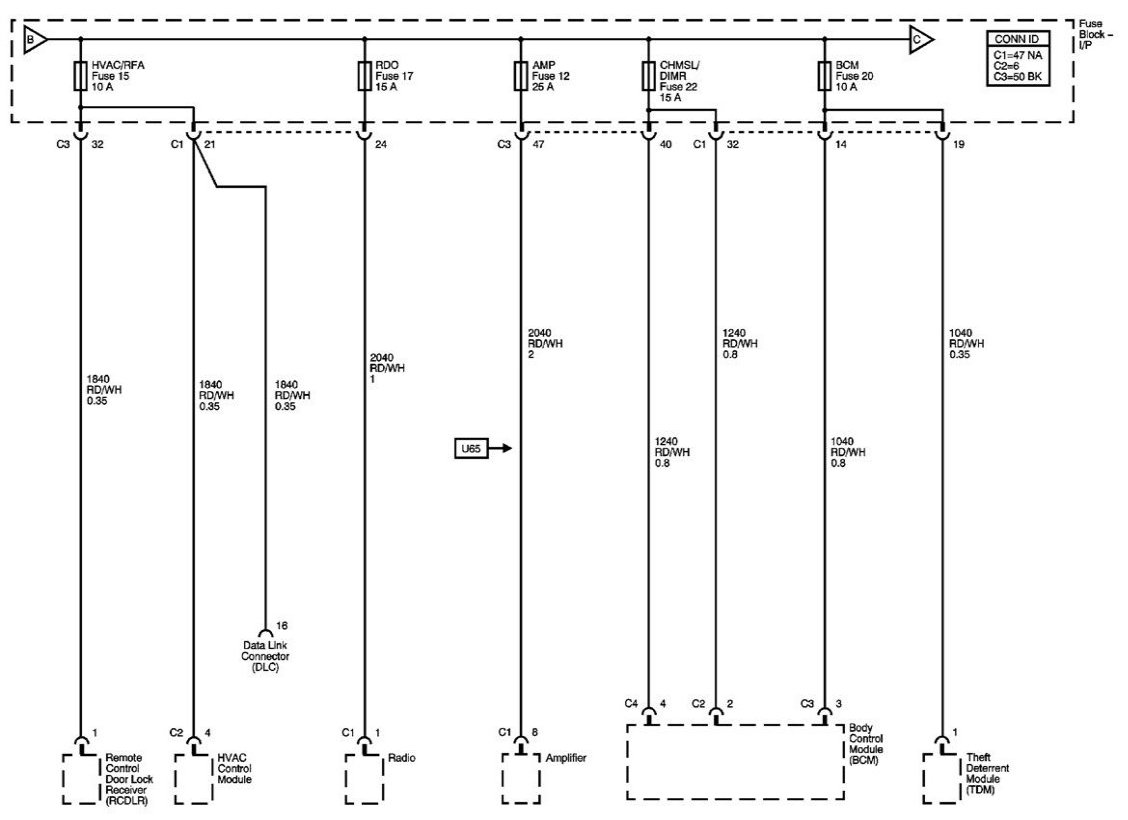

AMP, BCM, CHMSL/DIMR, HVAC/RFA and RDO Fuse

Power Distribution Diagram 4:






Next Diagram: Power Distribution Diagram 5

Previous Diagram: Power Distribution Diagram 3

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
