Power Distribution Diagram 3

Power Distribution Schematics

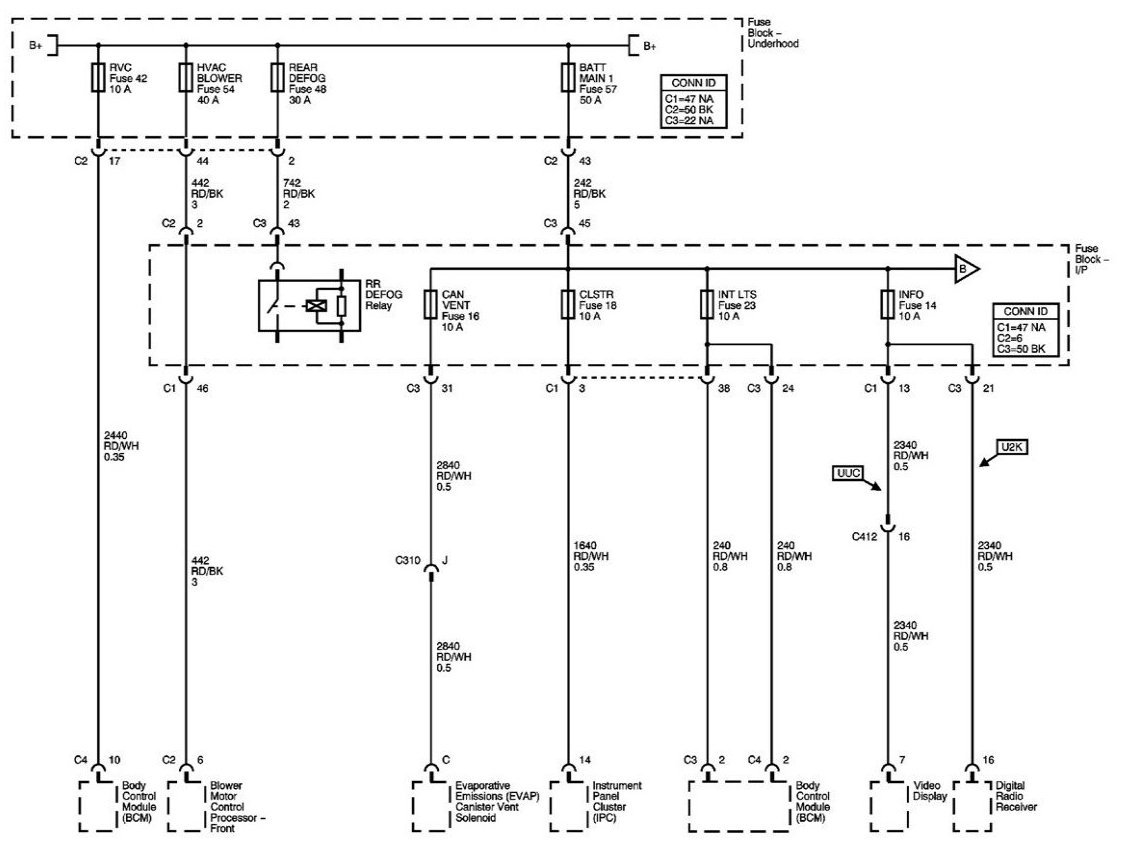

BATT MAIN 1, CAN VENT, CLSTR, HVAC BLOWER, INFO, INT LTS, ONSTAR, REAR DEFOG and RVC Fuses

Power Distribution Diagram 3:

Next Diagram: Power Distribution Diagram 4

Previous Diagram: Power Distribution Diagram 2

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
