Power Distribution Diagram 11

Power Distribution Schematics

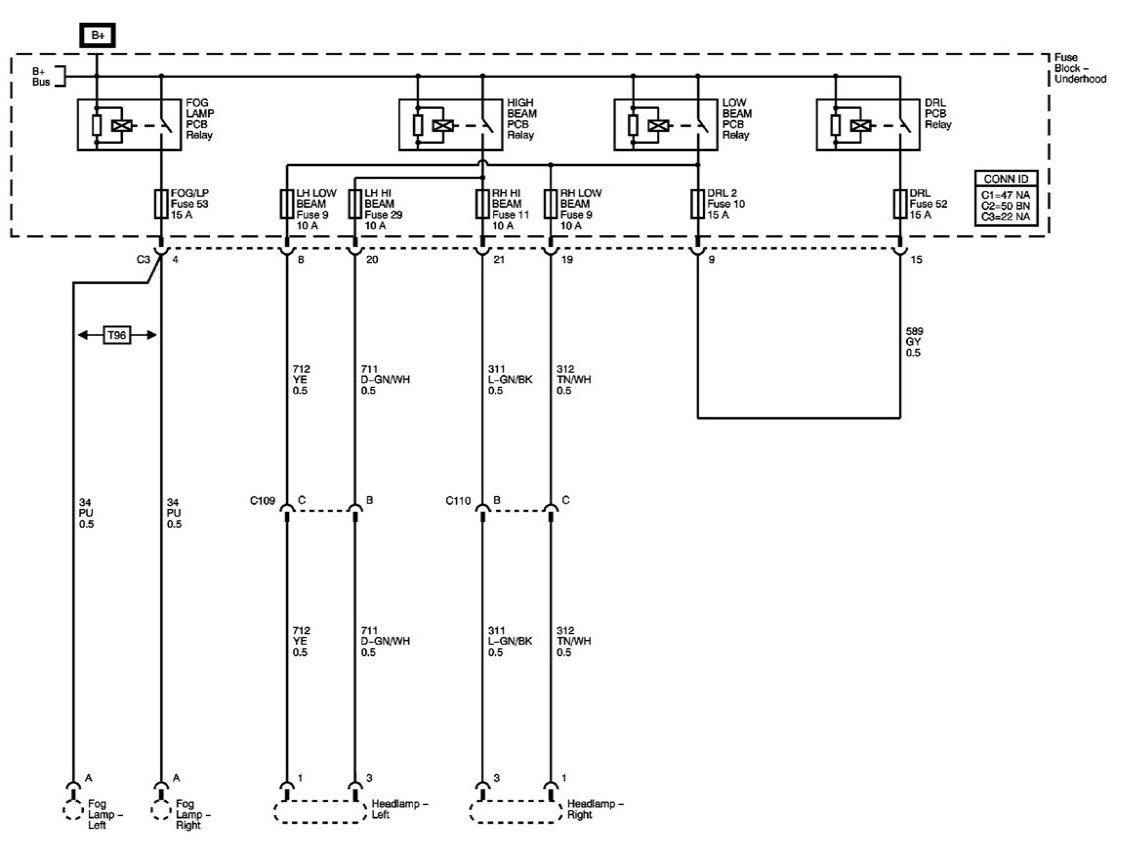

DRL, DRL2, FOG/LP, LH HIGH BEAM, LH LOW BEAM, RH HIGH BEAM, And RH LOW BEAM Fuses

Power Distribution Diagram 11:






Next Diagram: Power Distribution Diagram 12

Previous Diagram: Power Distribution Diagram 10

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
