Power Distribution Diagram 1

Power Distribution Schematics

B+ Bus - 1 of 2

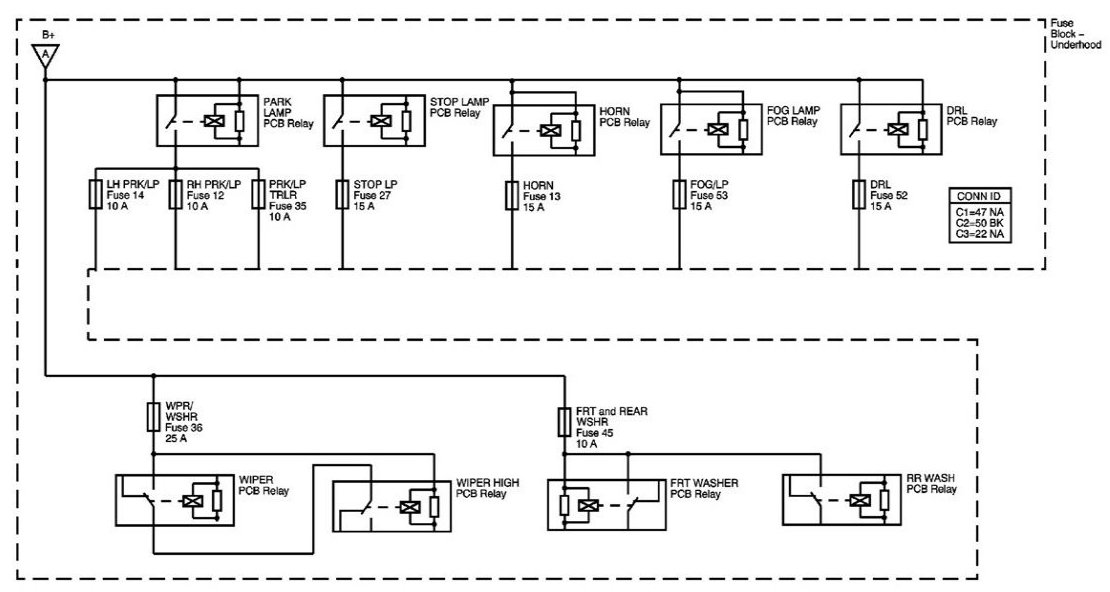

Power Distribution Diagram 1 (1 of 2):

B+ Bus - 2 of 2

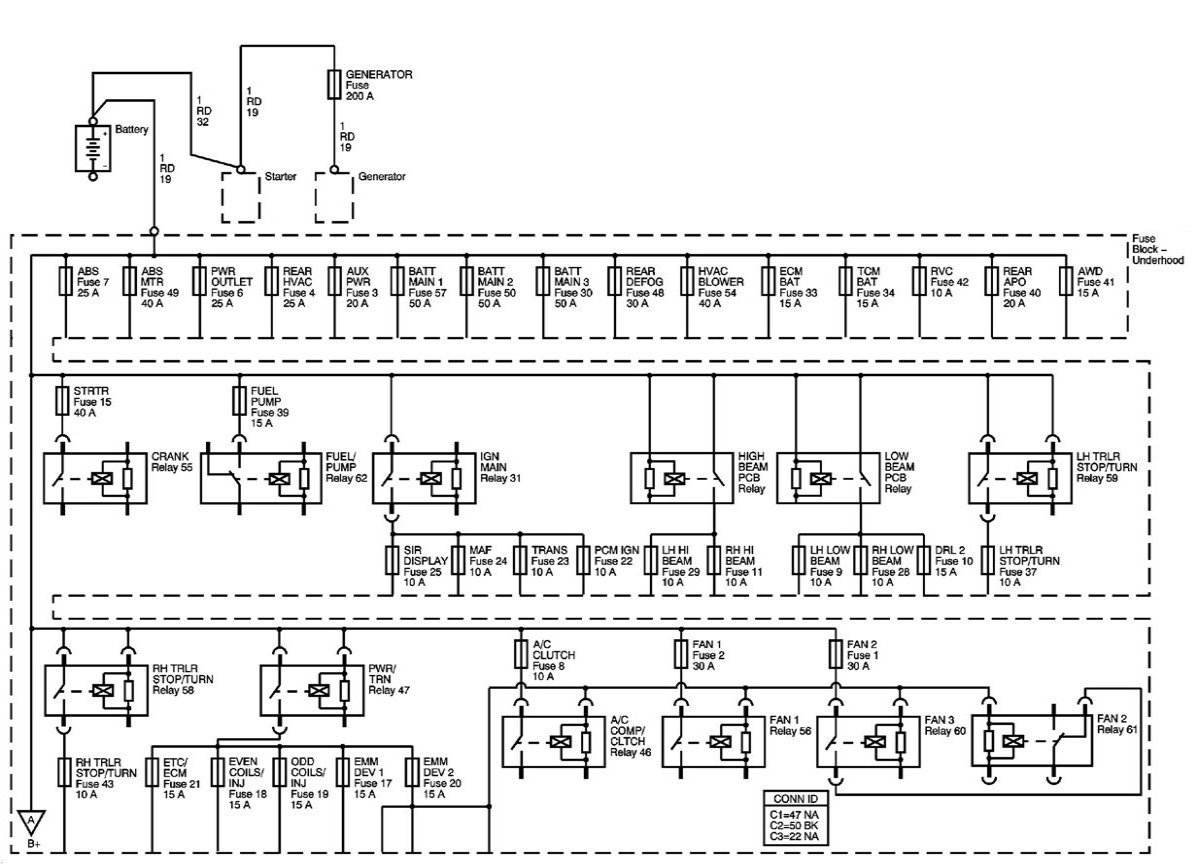

Power Distribution Diagram 1 (2 of 2):

Next Diagram: Power Distribution Diagram 2

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
