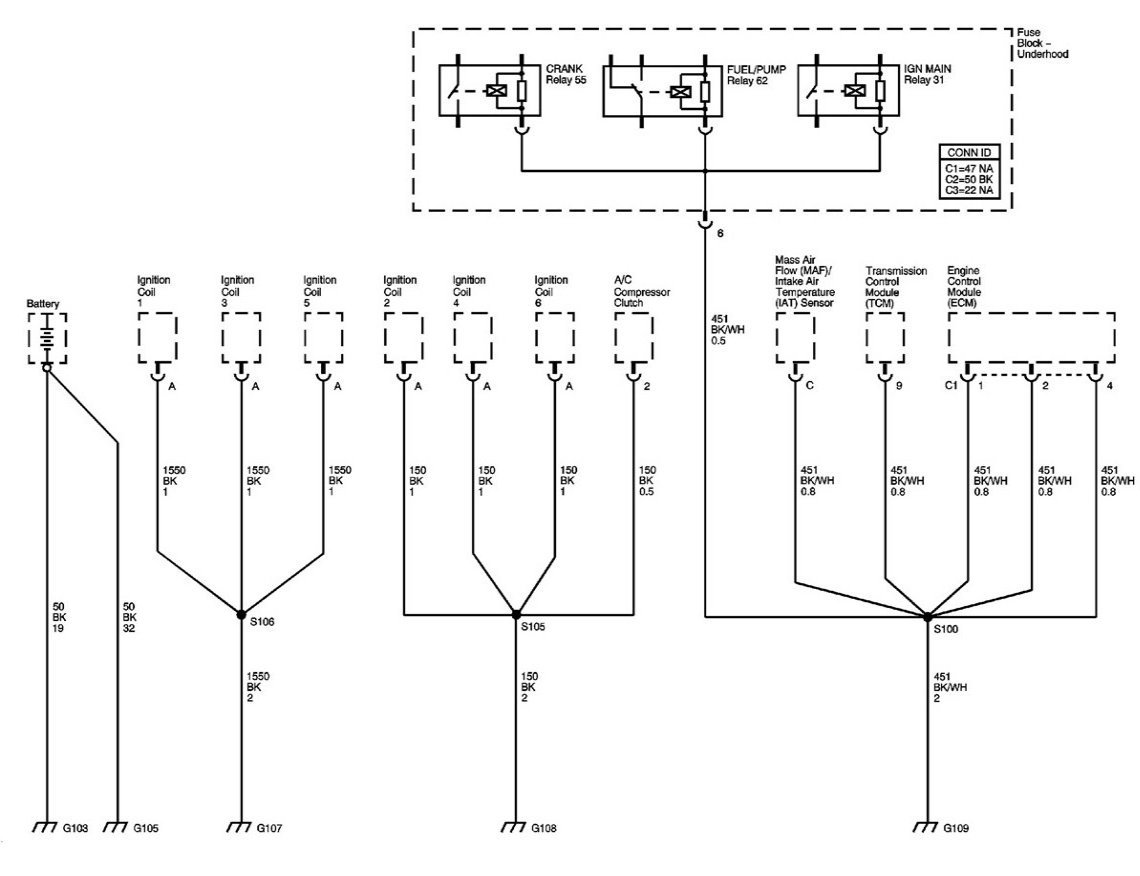

G103

Ground Distribution Schematics

G103, G105, G107, G108, And G109

G103, G105, G107, G108, And G109:






Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
