Heater Outlet Pipe Replacement

Heater Outlet Pipe Replacement

Removal Procedure





1. Partially drain the cooling system.

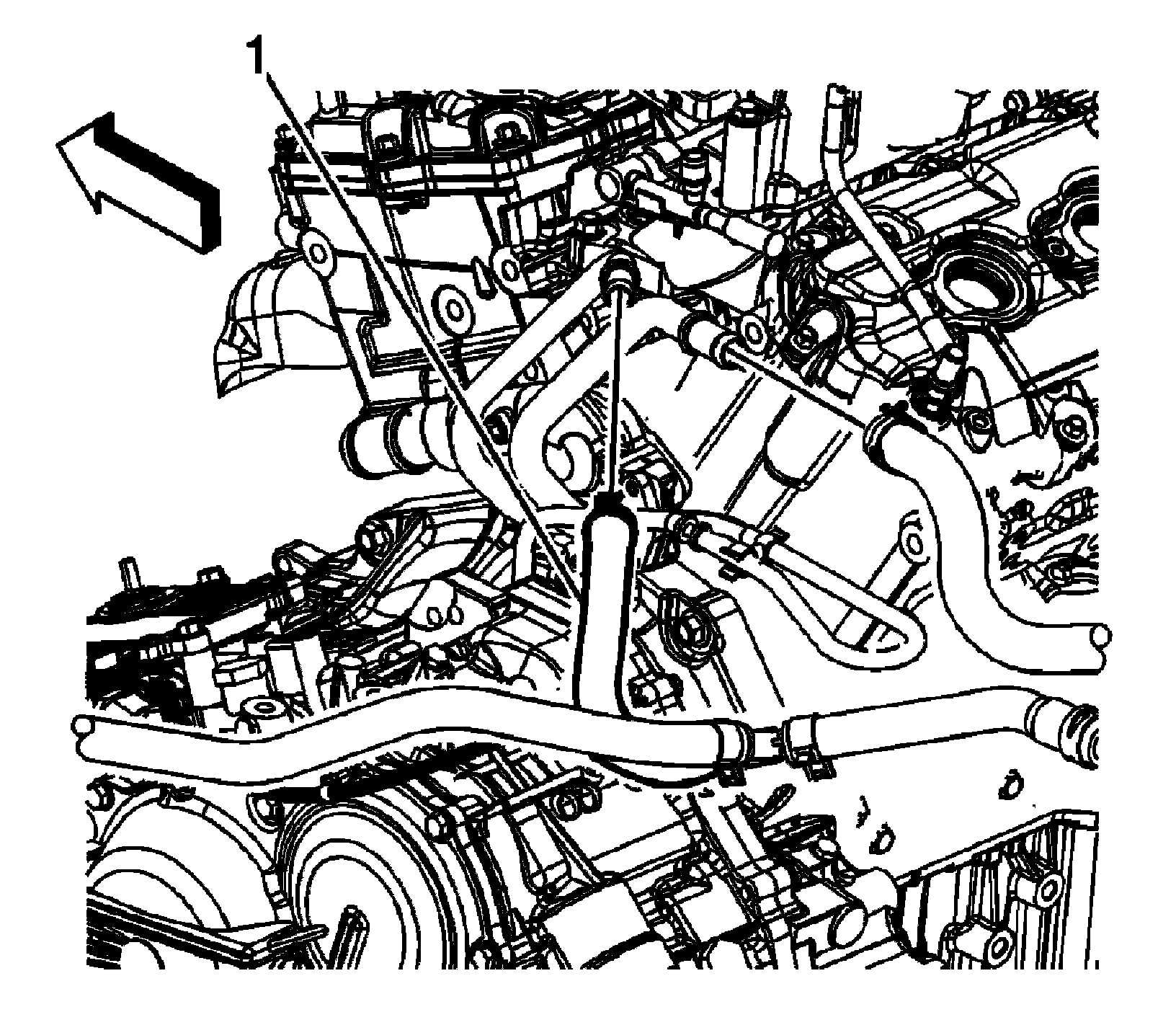

2. Remove the heater pipe outlet hose (1) from the heater outlet pipe.
3. Remove the heater inlet pipe.

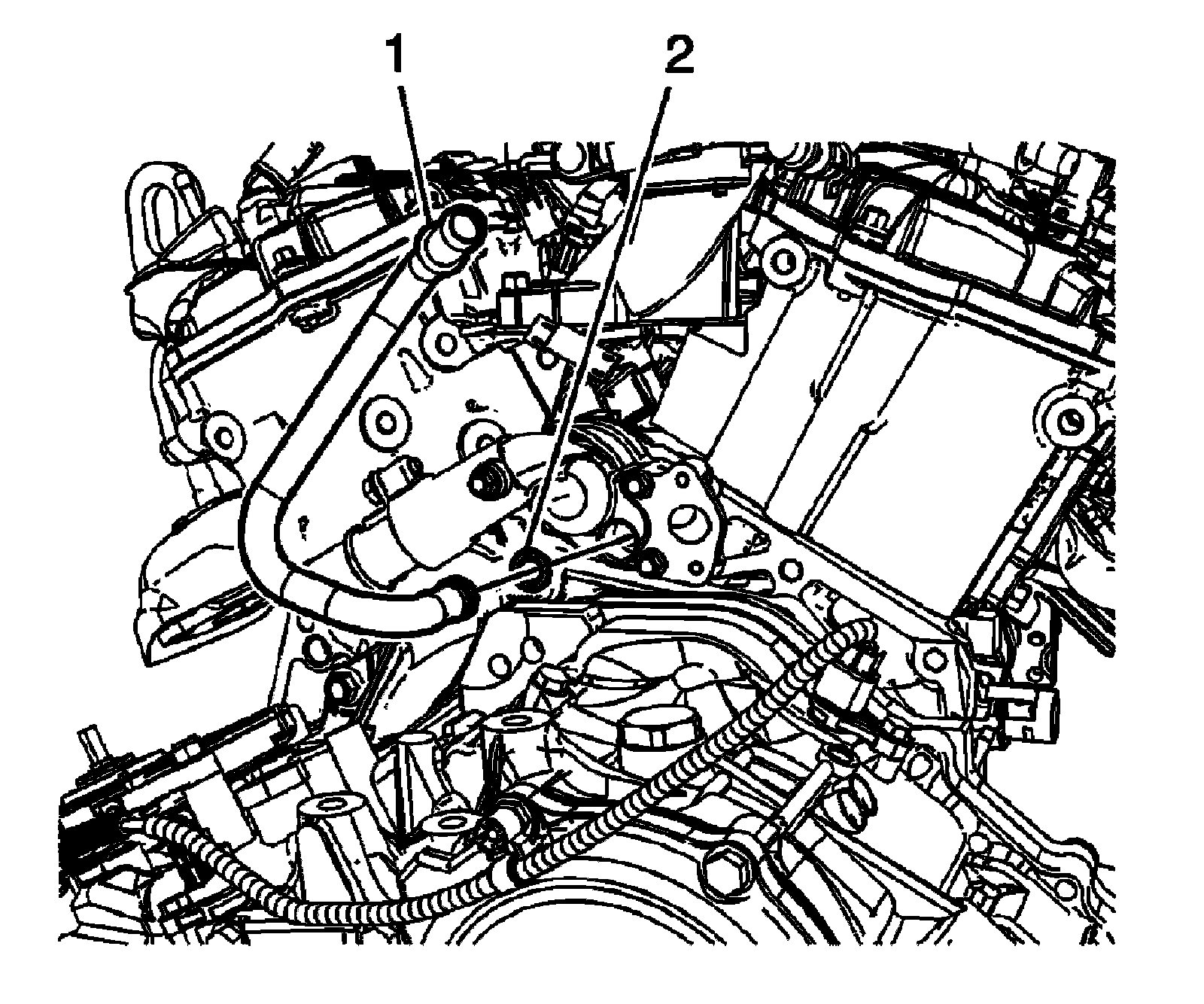

4. Remove the heater outlet pipe (1).
5. Remove the heater outlet pipe O-ring (2). Discard O-ring.

Installation Procedure





1. Install a NEW heater inlet pipe O-ring.

CAUTION:
Refer to [Fastener Notice].

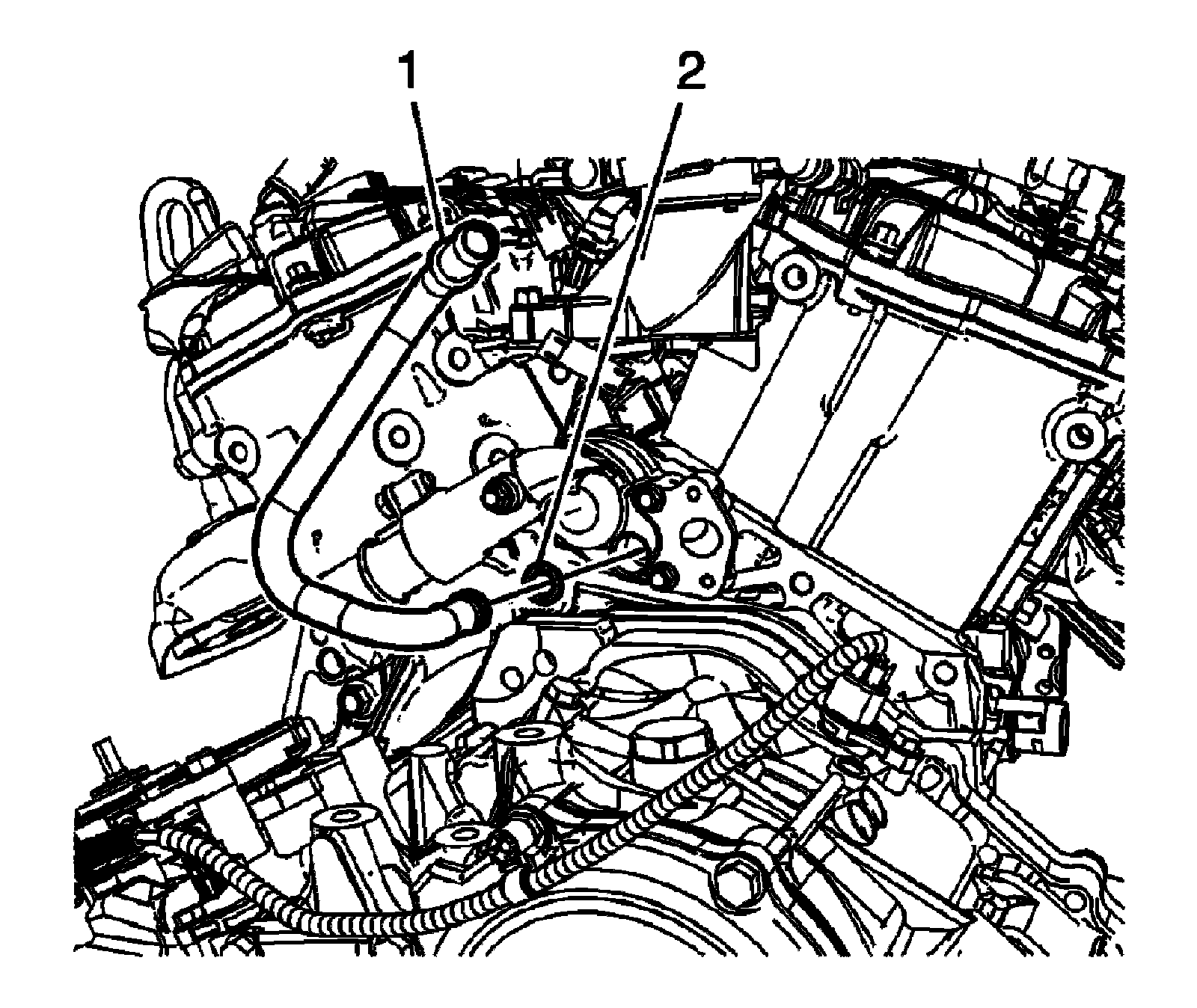

2. Install the heater outlet pipe (1).

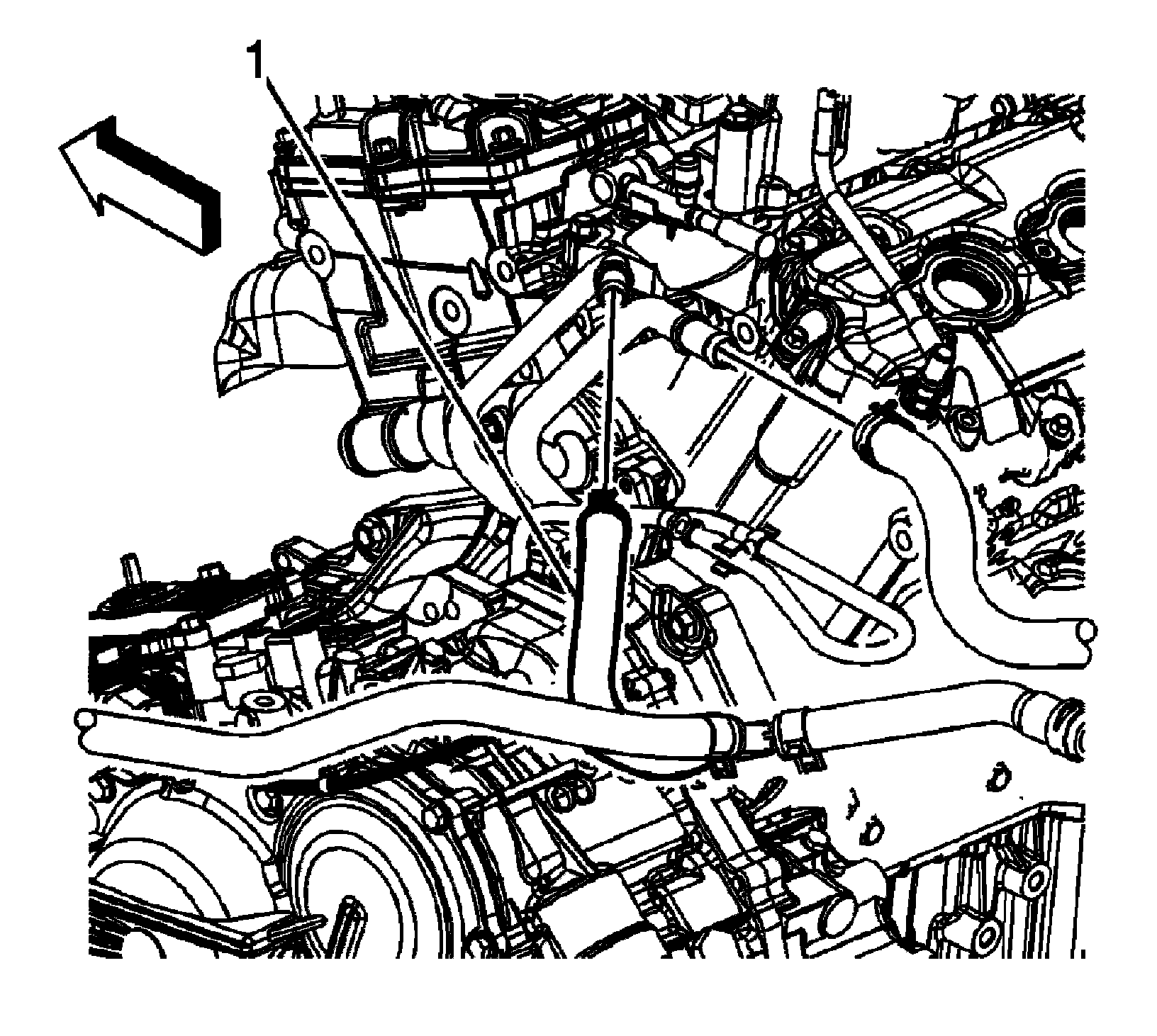

3. Install the heater outlet hose (1) to the heater outlet pipe.
4. Install the heater inlet pipe.
