Electrical Diagrams

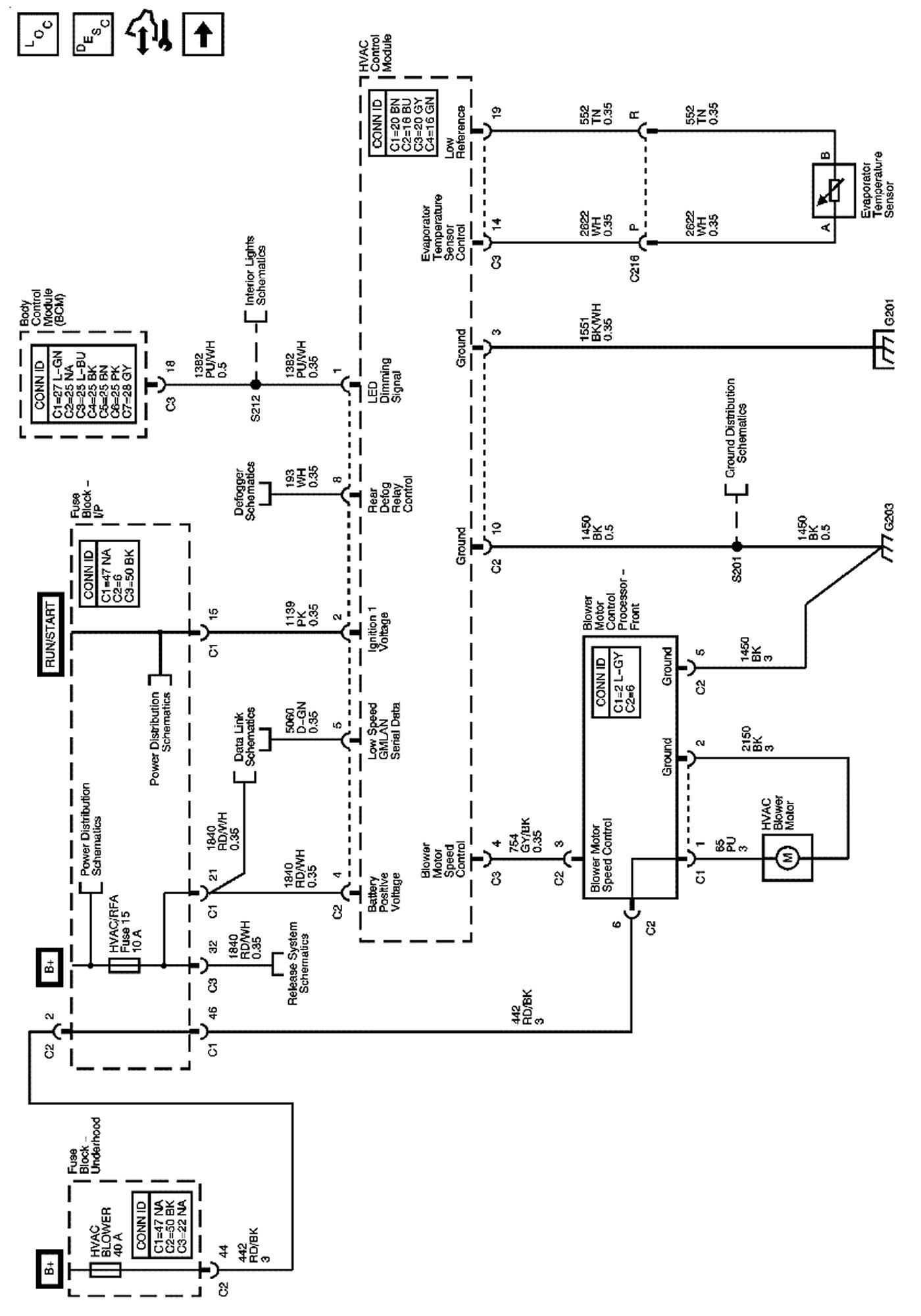

Module Power, Ground, Serial Data, and Front Blower Controls

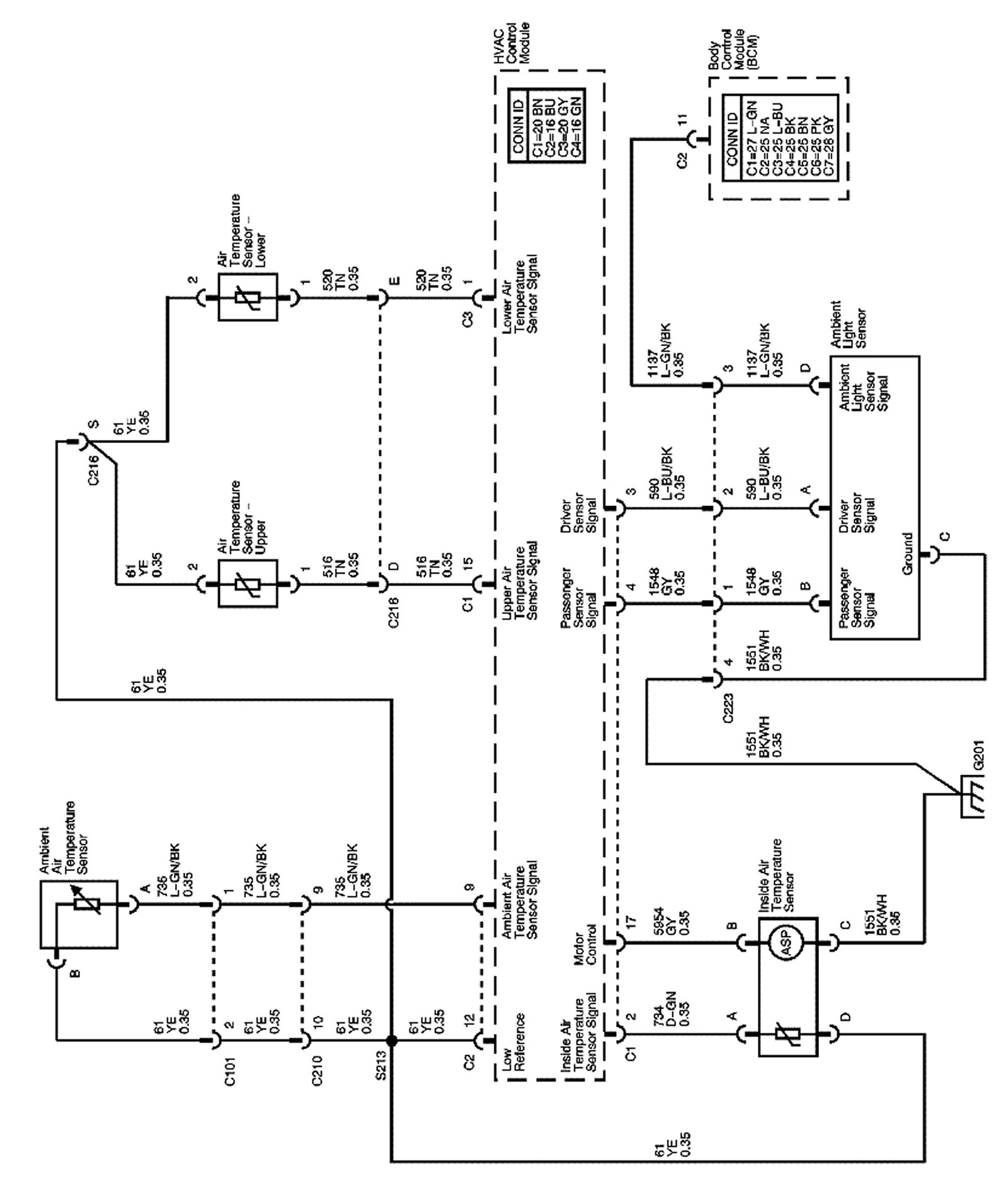

Air Temperature Sensors, Ambient Light Sensor

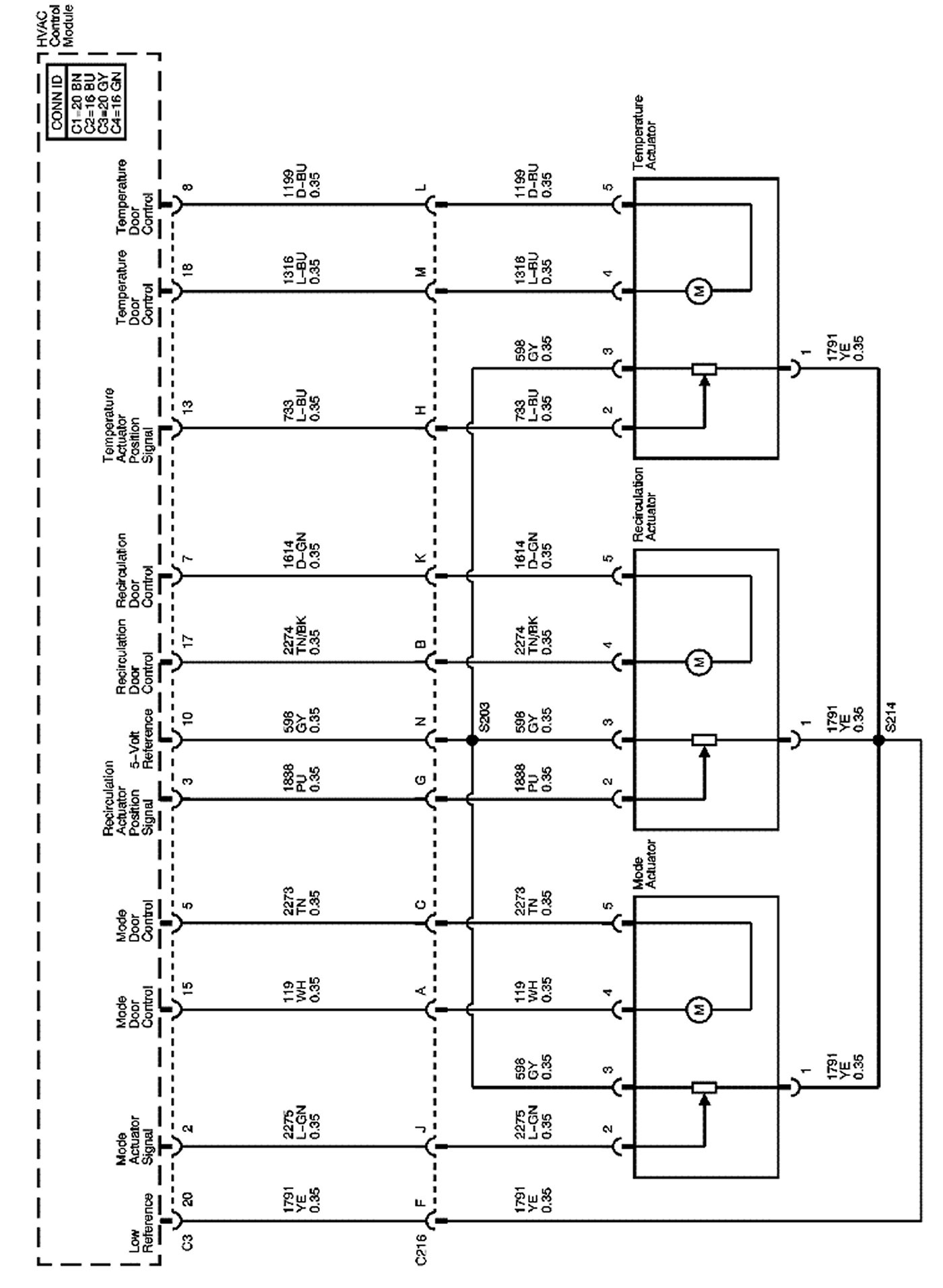

Mode, Recirculation, and Temperature Actuators

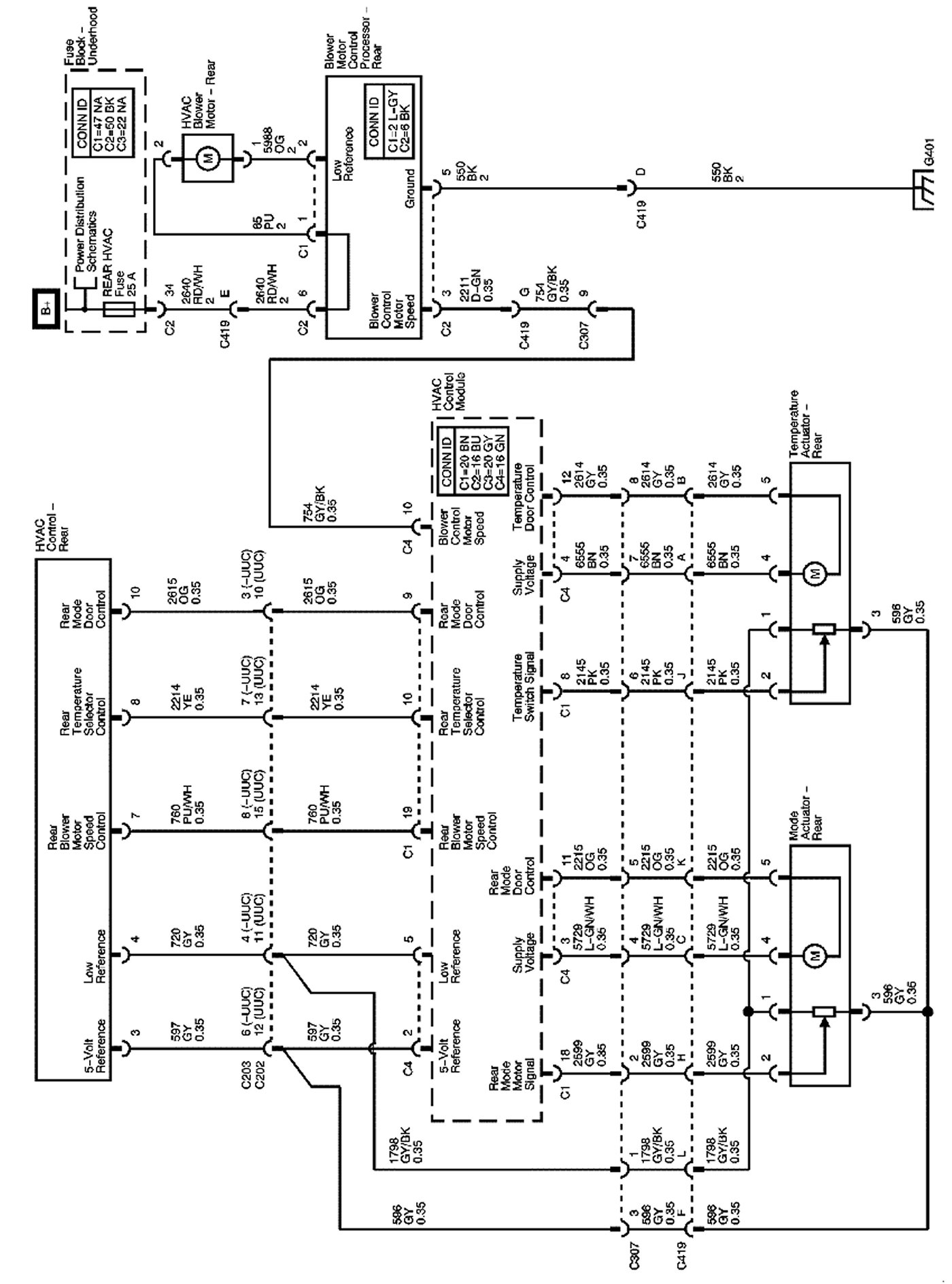

Rear HVAC Controls and Actuators

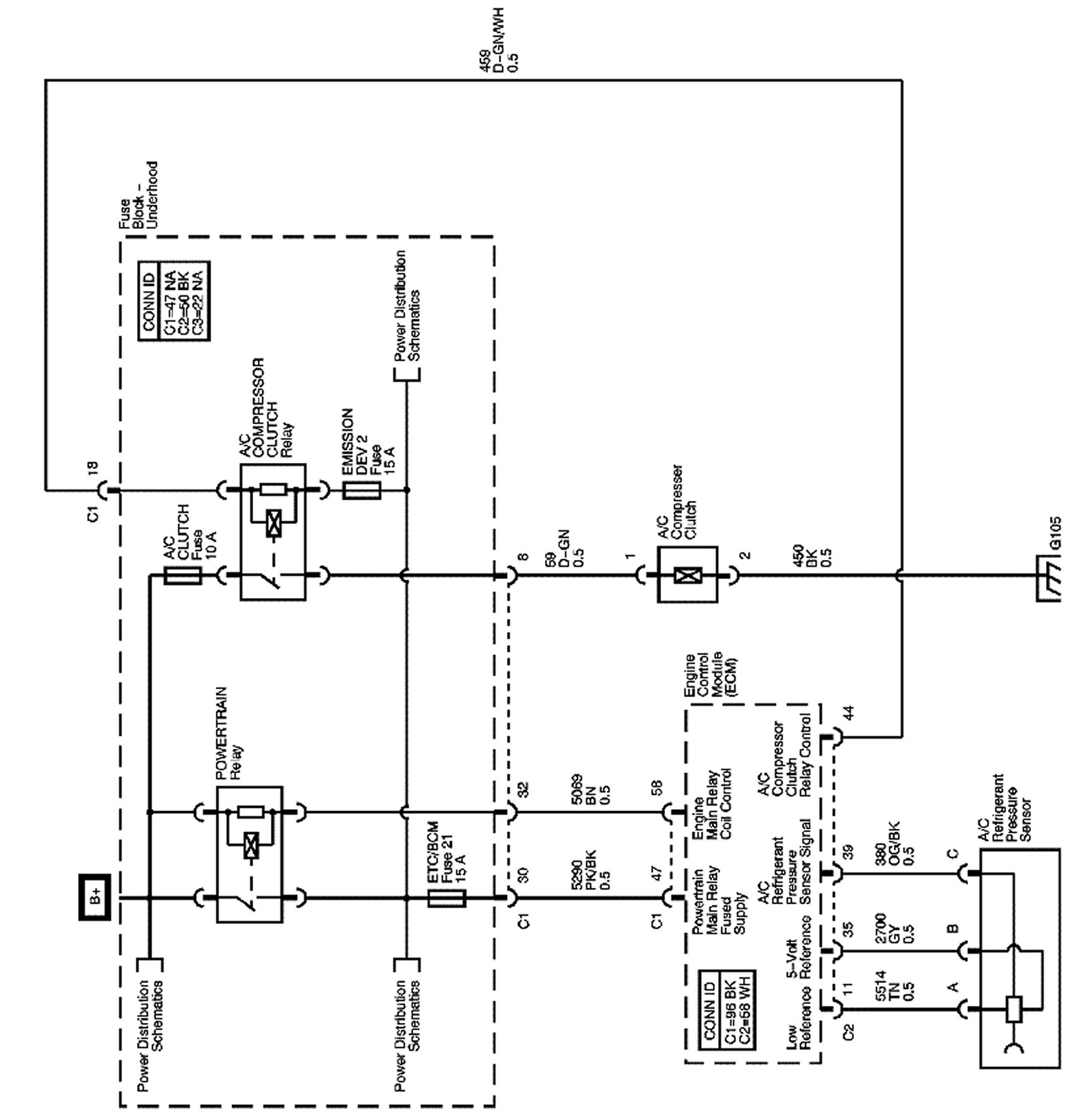

A/C Compressor Controls
