Ambient Temperature Sensor / Switch HVAC: Service and Repair

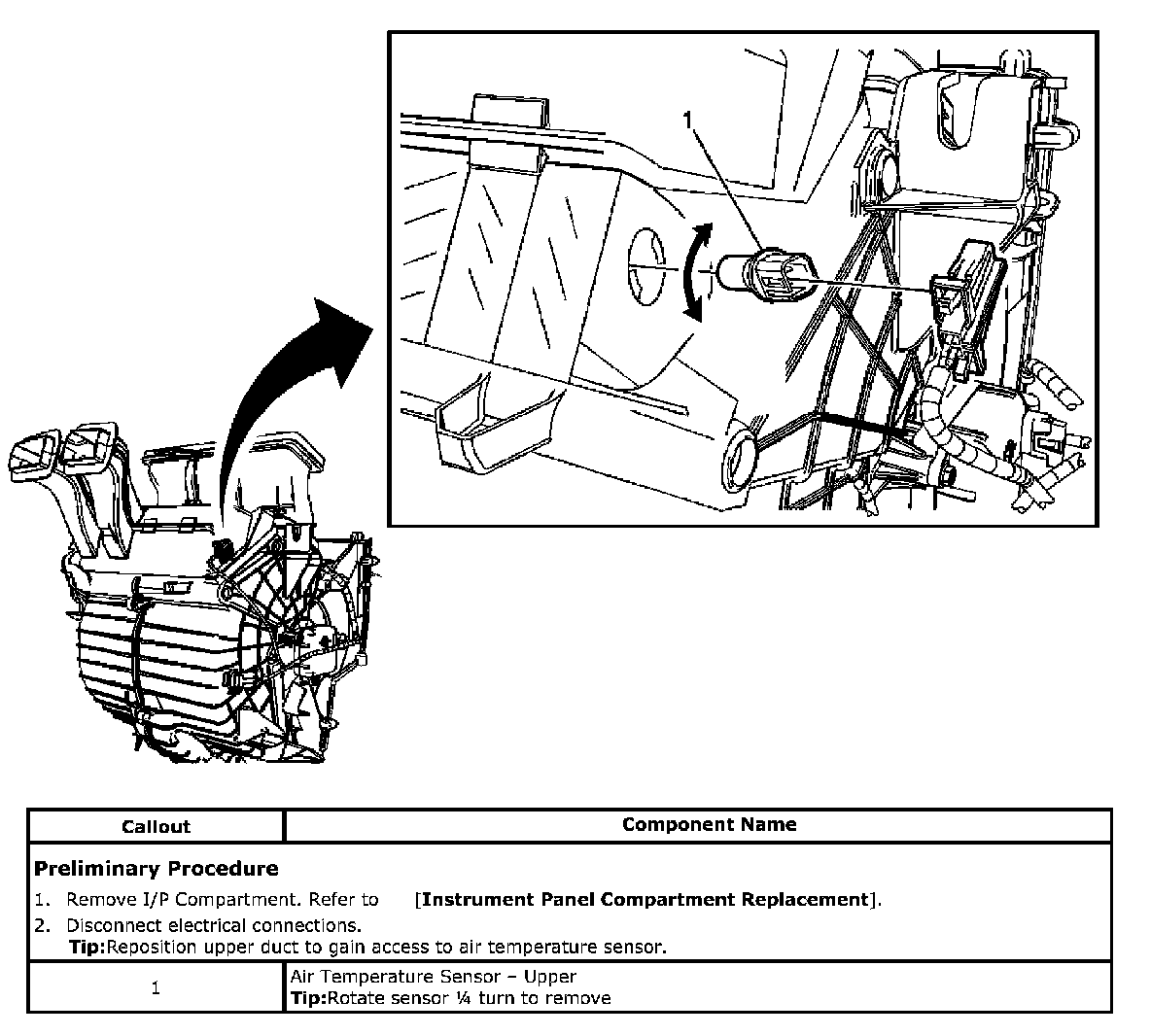

Air Temperature Sensor Replacement - Upper:

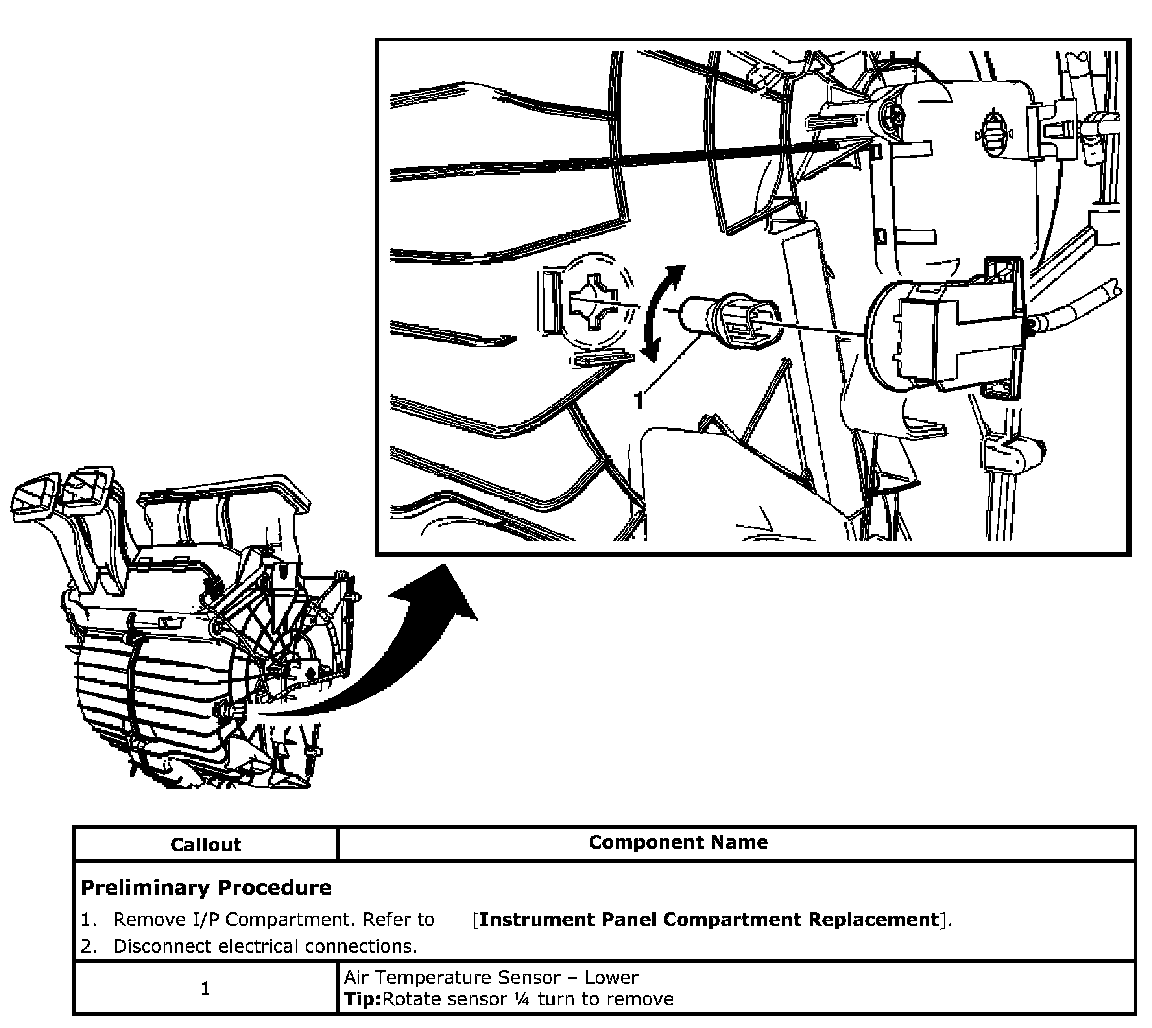

Air Temperature Sensor Replacement - Lower:

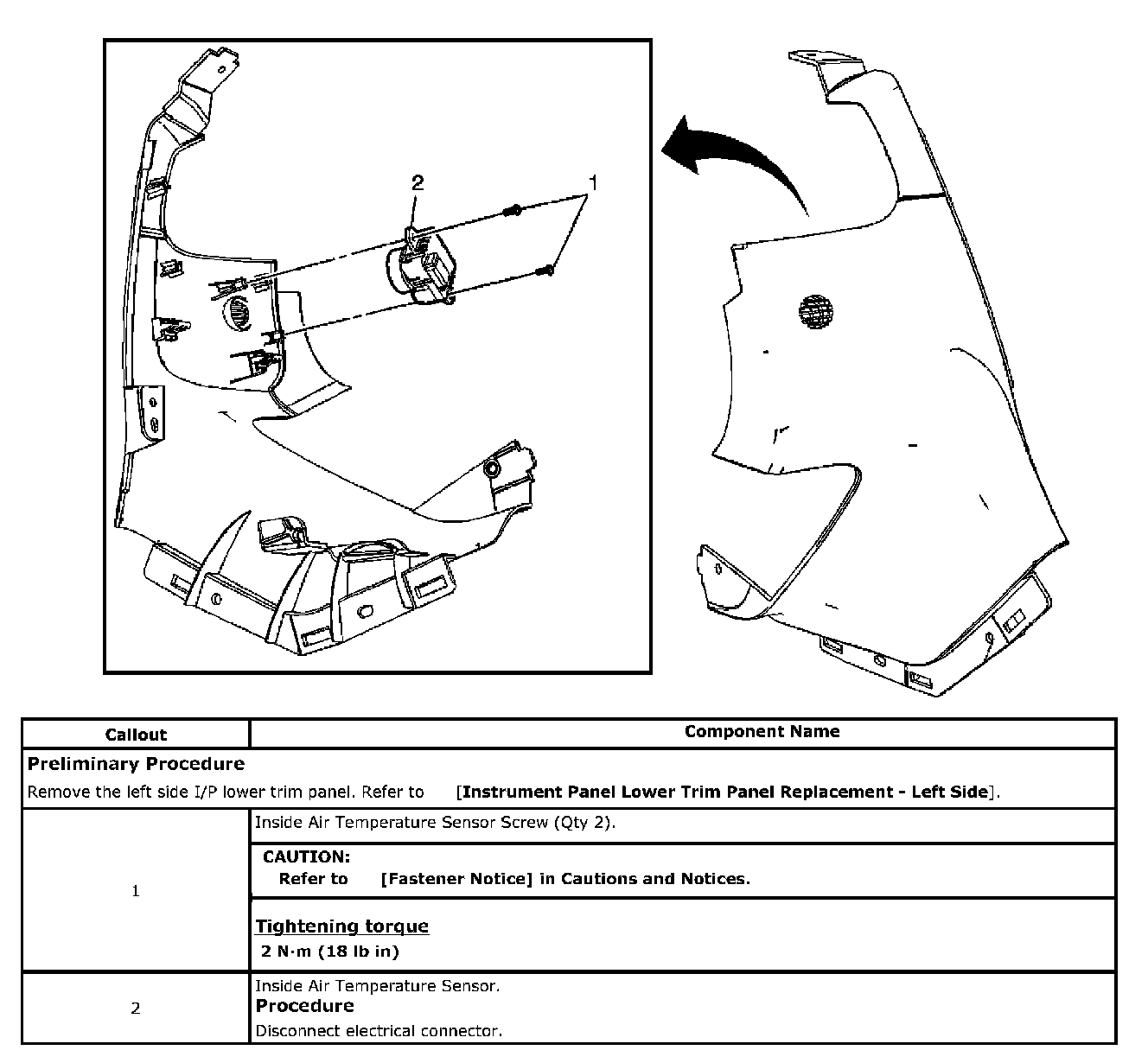

Inside Air Temperature Sensor Assembly Replacement:

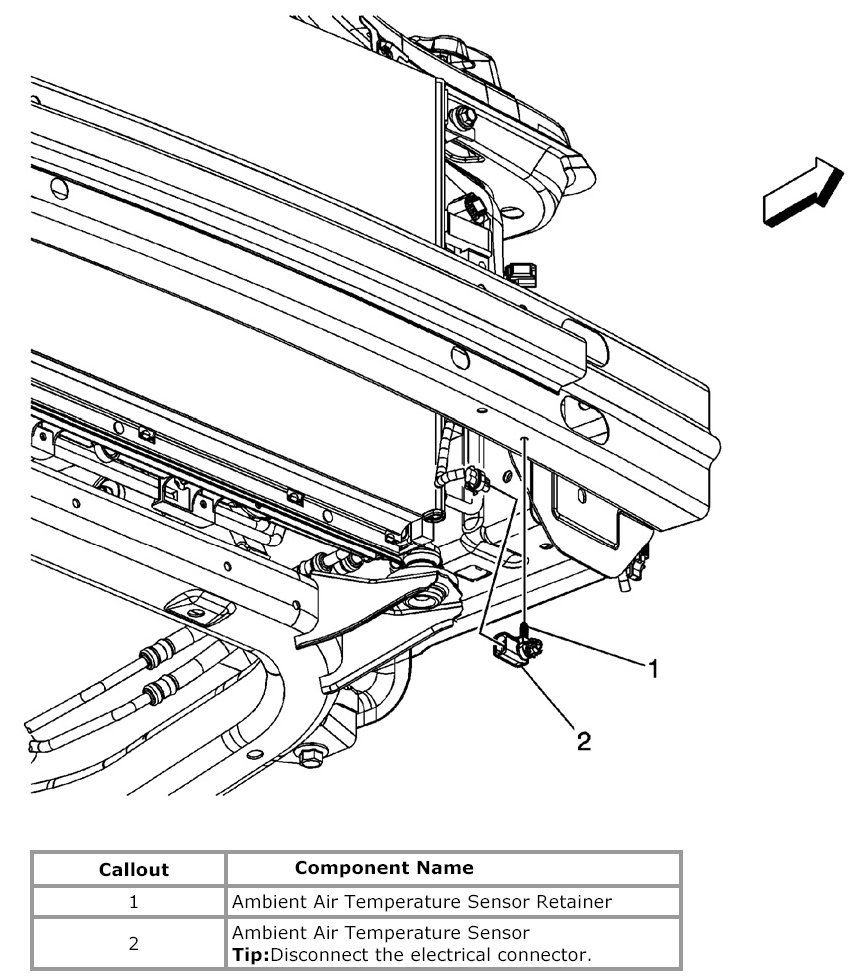

Ambient Air Temperature Sensor Replacement:
