Floor Air Outlet Replacement - Center

Floor Air Outlet Replacement - Center




Removal Procedure
1. Remove the shift control. Refer to [Shift Control Replacement].

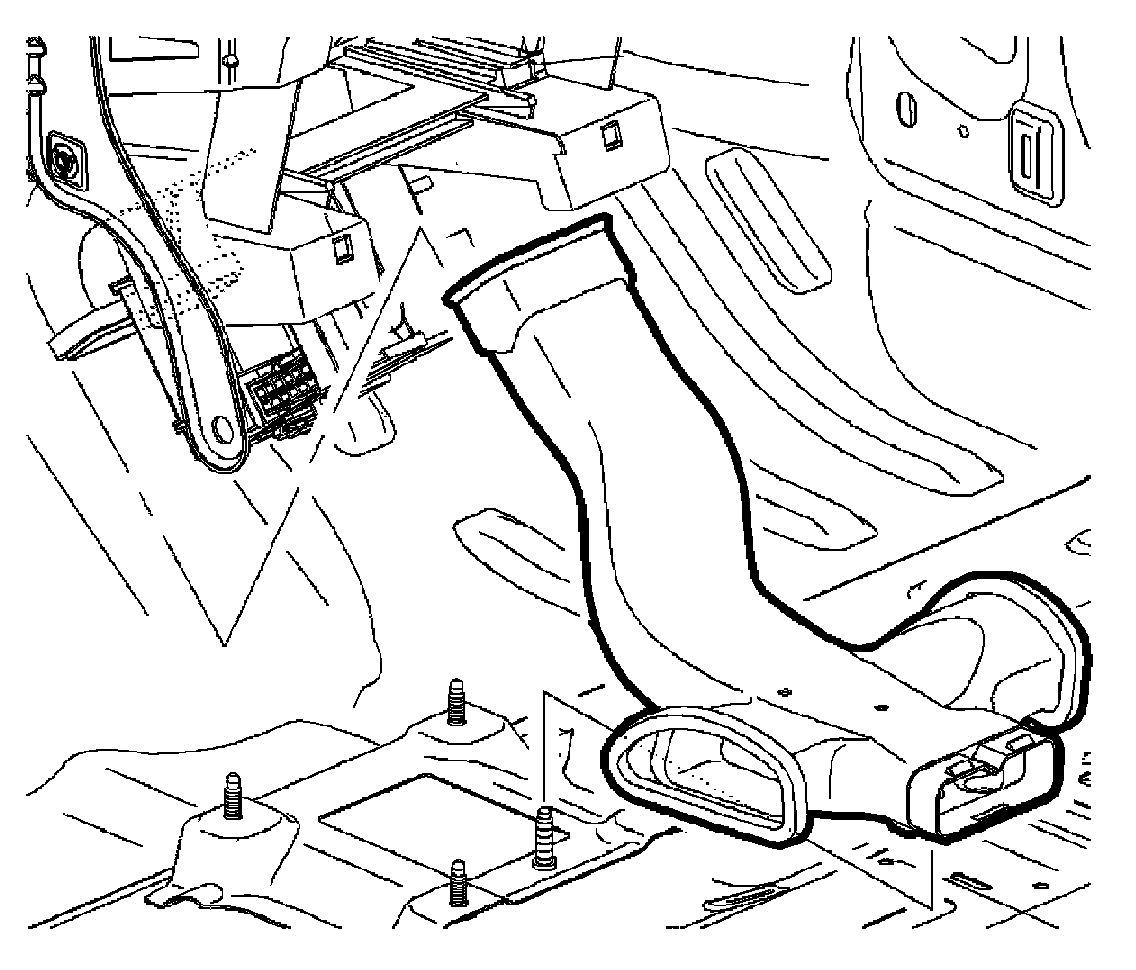

2. Slide the center floor air outlet duct forward enough to clear the rear floor air outlet duct, and then up, and rearward to remove.




Installation Procedure

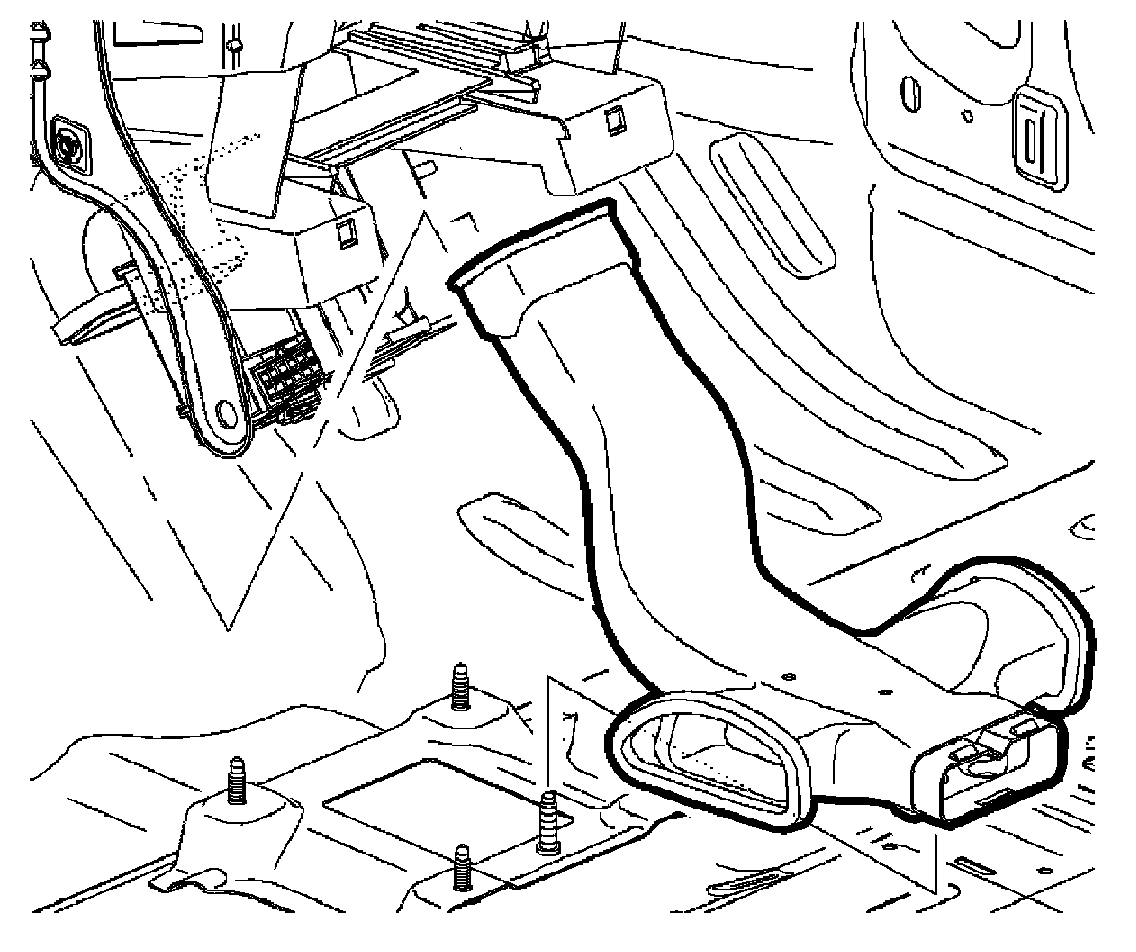

1. Slide the center floor air outlet duct forward enough to clear rear floor air duct, and then down, and rearward to install.
2. Install the shift control. Refer to [Shift Control Replacement].
