Air Duct: Service and Repair

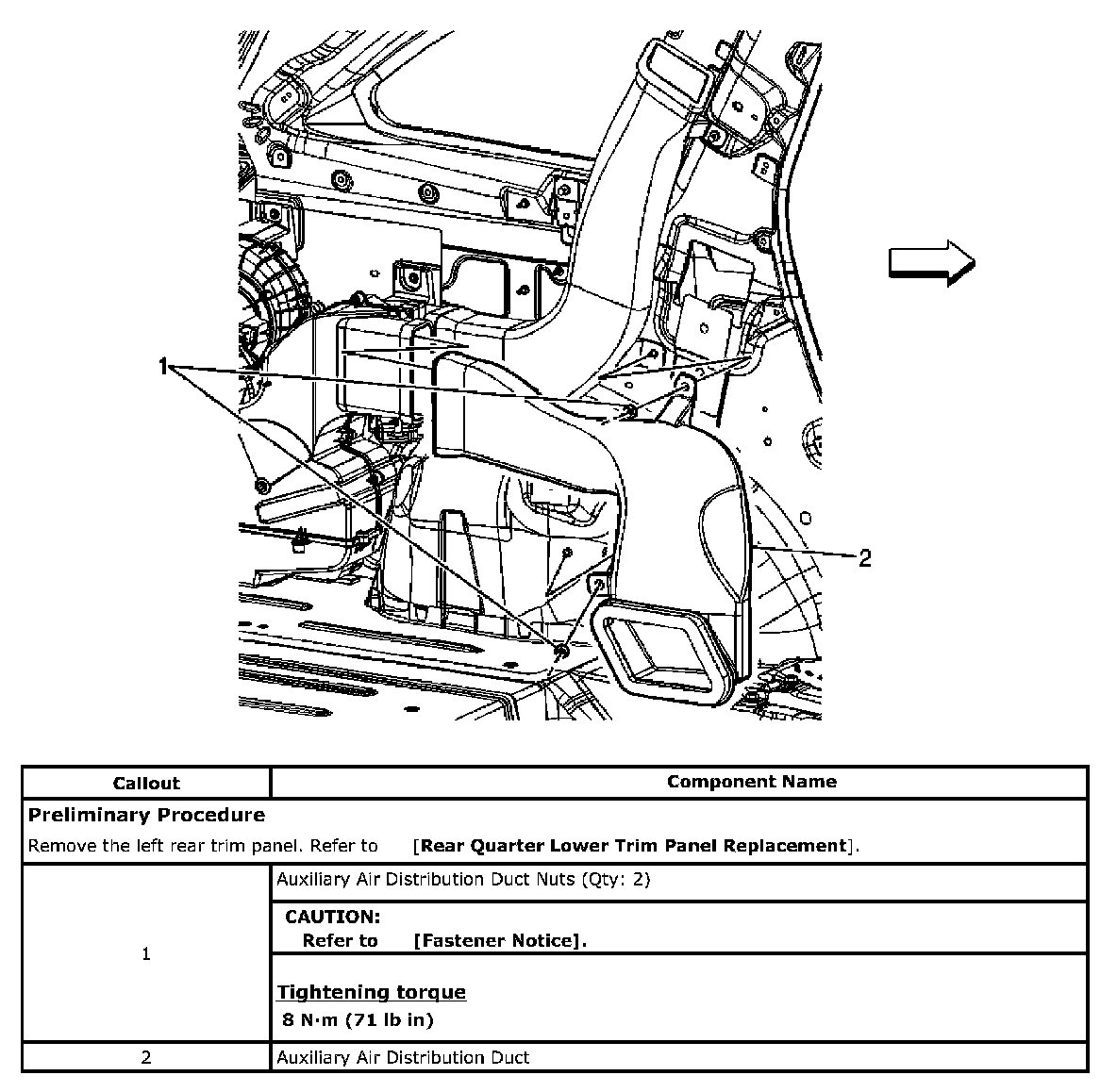

Auxiliary Air Distributor Lower Duct Replacement:

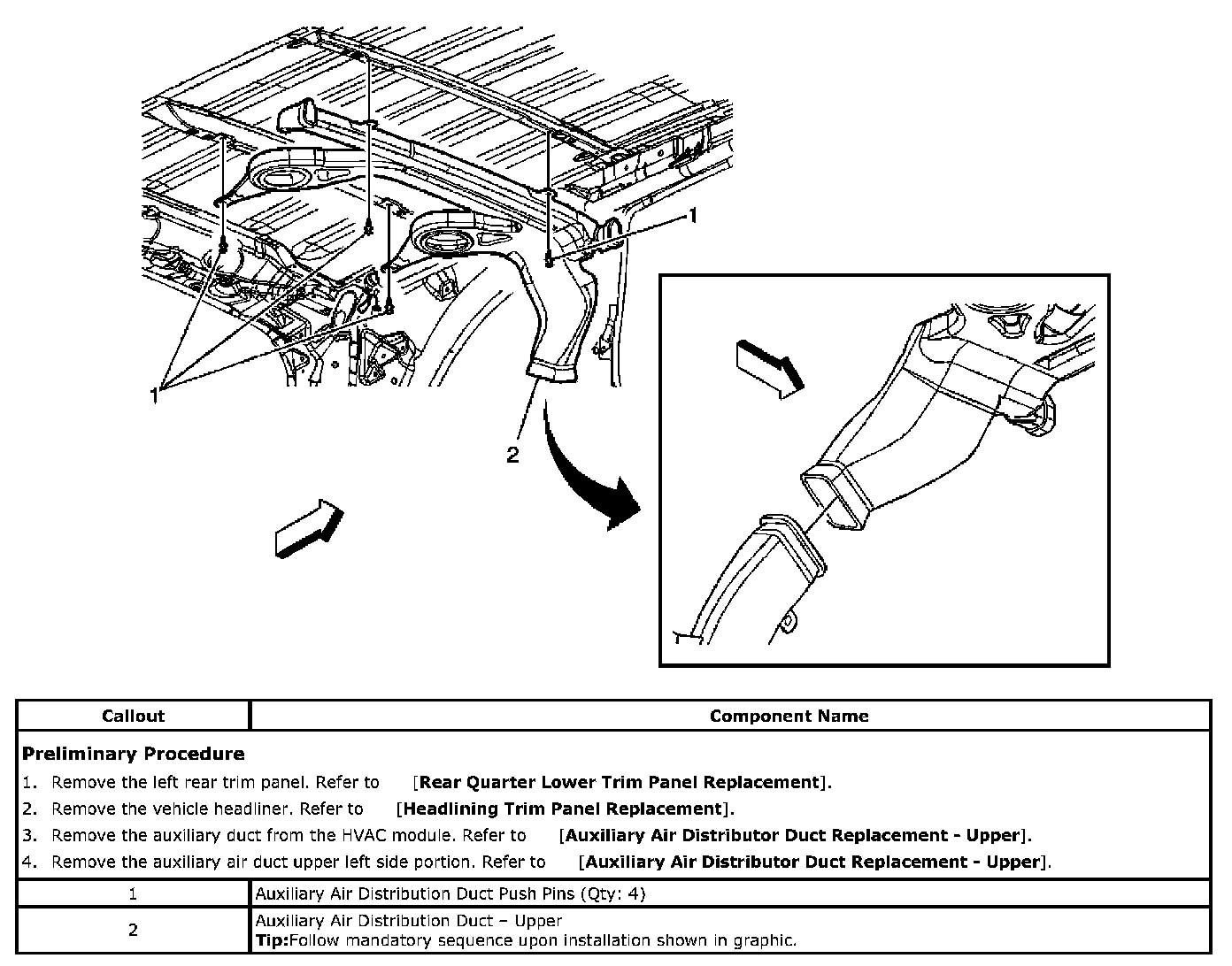

Auxiliary Air Distributor Duct Replacement - Upper:
