Secondary Camshaft Drive Chain Guide Replacement Right Side

Secondary Camshaft Drive Chain Guide Replacement Right Side

Removal Procedure
1. Remove the spark plugs in order to ease crankshaft/engine rotation.
2. Remove the engine front cover.
3. Remove the right bank secondary camshaft drive chain tensioner.

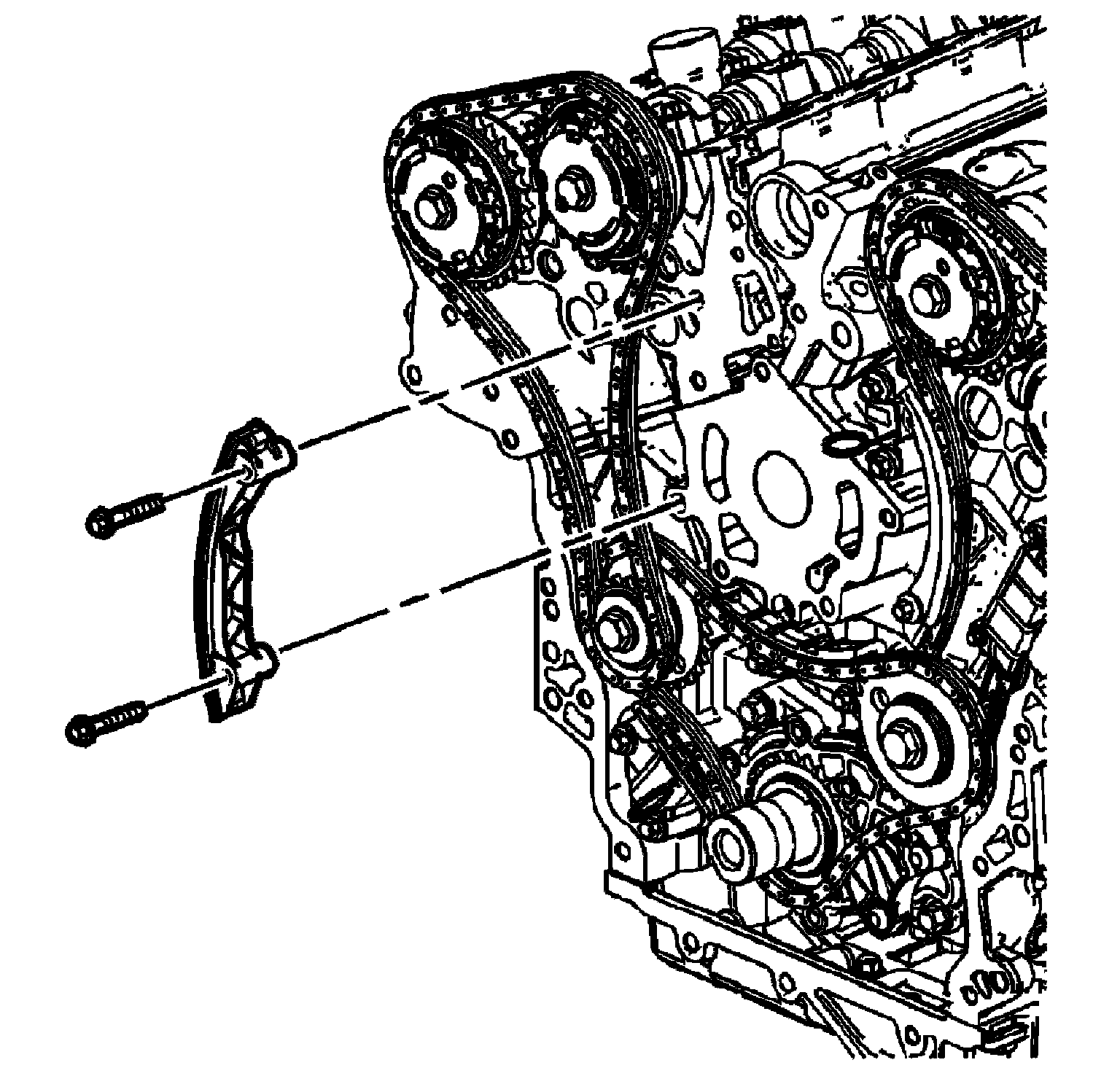

4. Remove the right bank secondary camshaft drive chain guide.

Installation Procedure

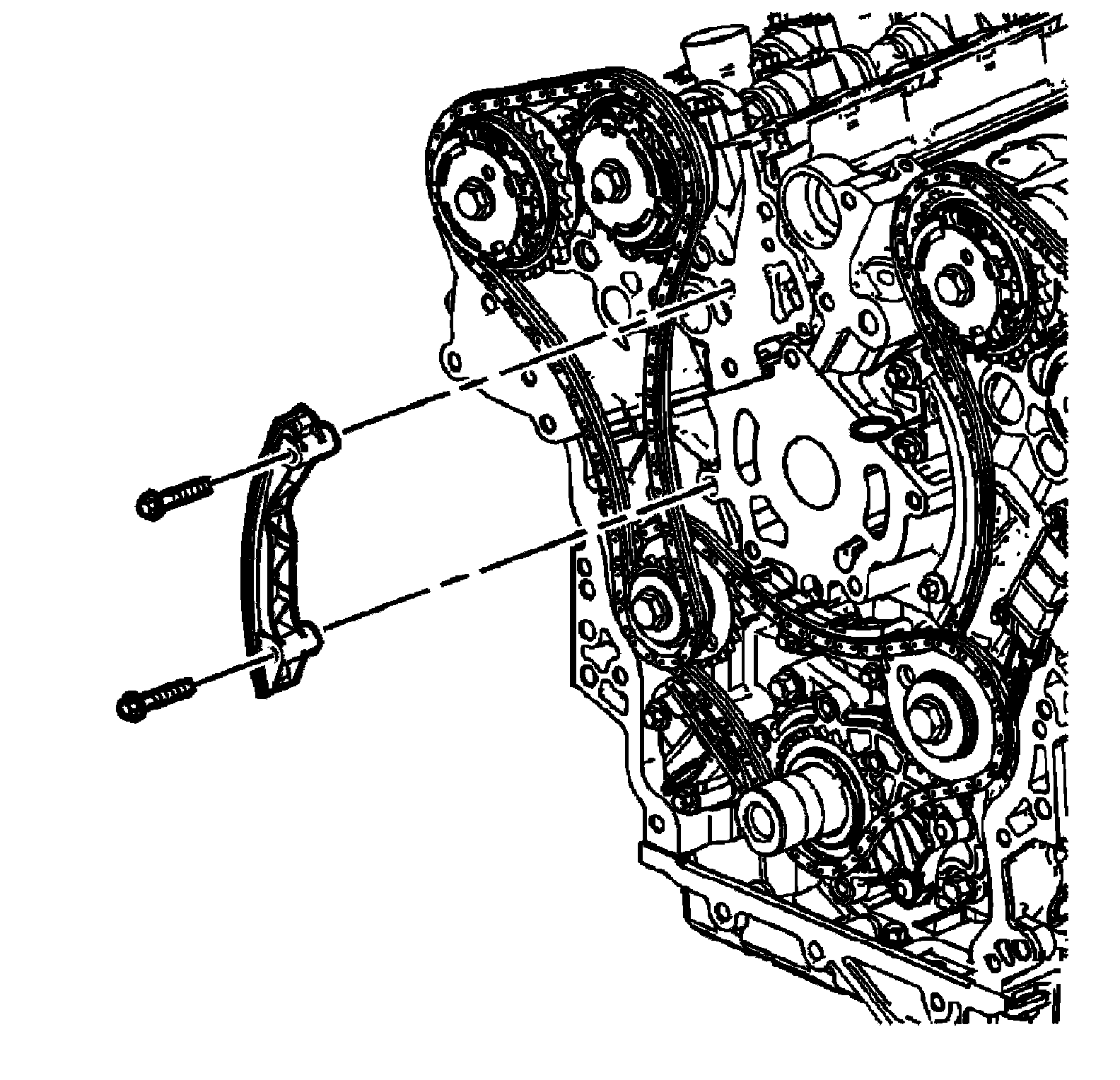

1. Install the right bank secondary camshaft drive chain guide.
2. Install the right bank secondary camshaft drive chain tensioner.
3. Install the engine front cover.
4. Install the spark plugs.
