Oil Level Indicator and Tube Removal

Oil Level Indicator and Tube Removal

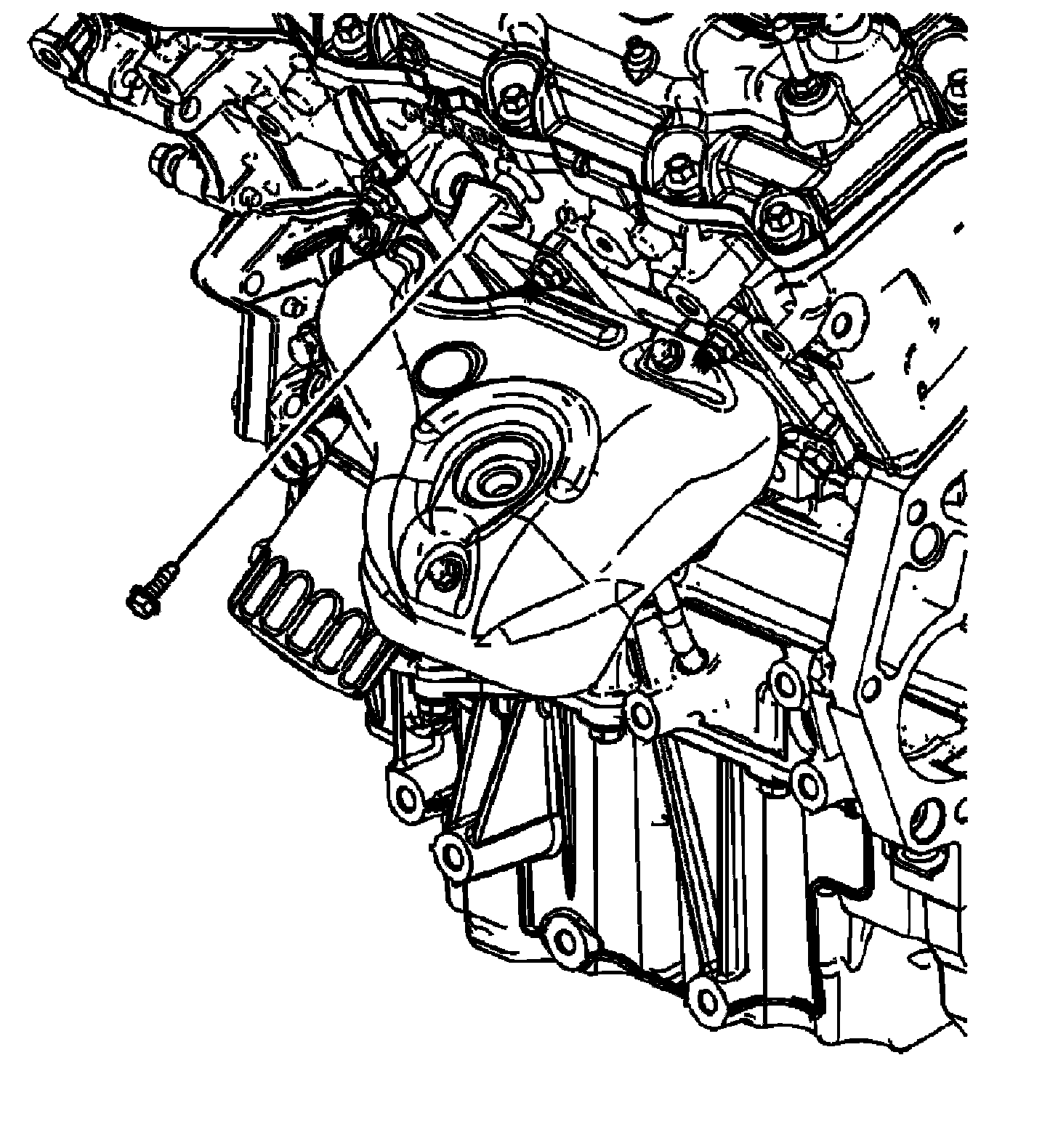

1. Remove the oil level indicator tube bracket bolt.

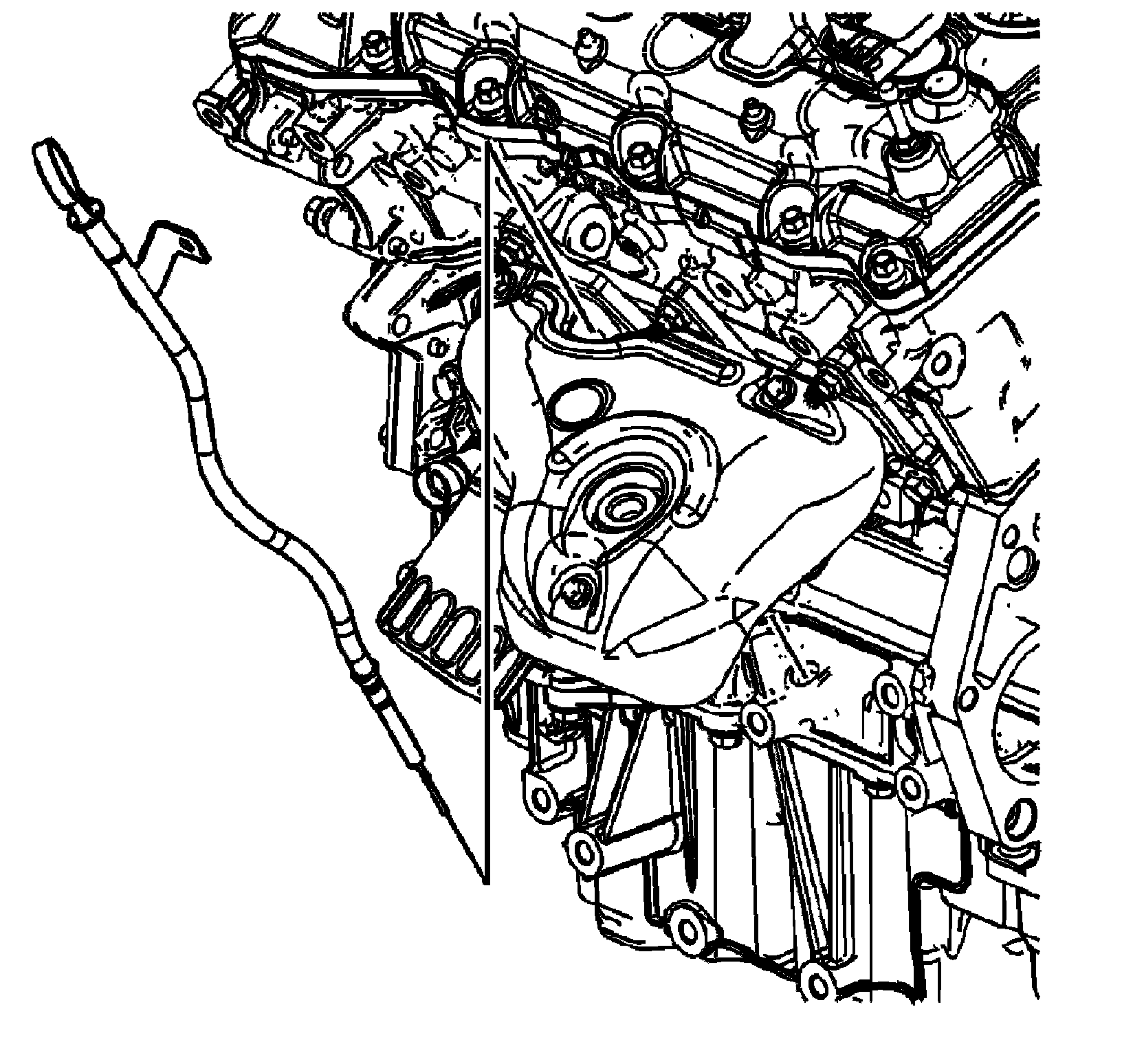

2. Remove the oil level indicator and tube by sliding the tube out from the lower crankcase hole.





3. Remove and discard the O-ring from the oil level indicator tube.
