Oil Pump Installation

Oil Pump Installation

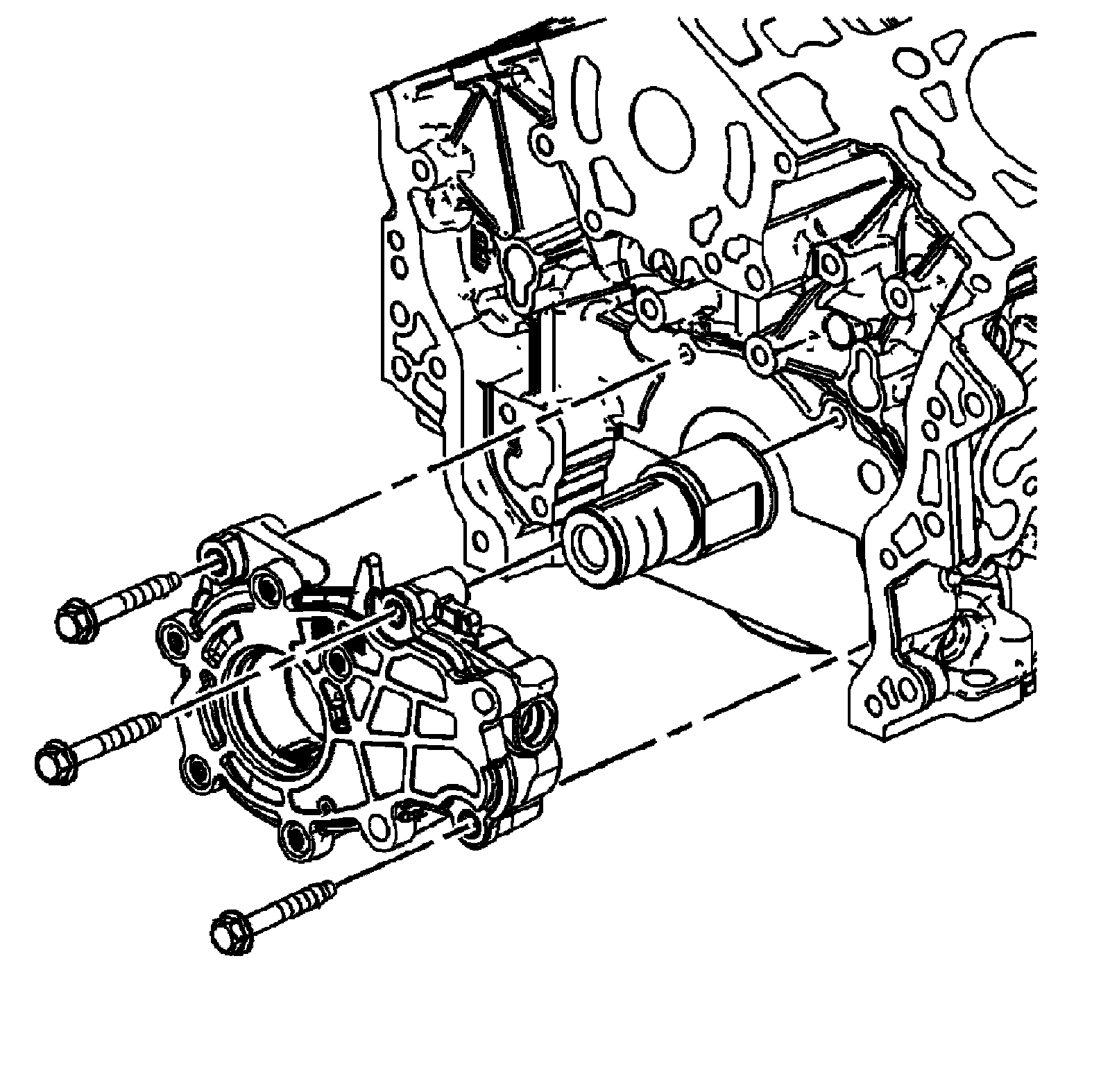

1. Align the oil pump generator with the crankshaft flats and install the oil pump to the engine block.
2. Align the pump body with the mounting holes in the cylinder block.

CAUTION:
Refer to [Fastener Notice].

3. Install the oil pump bolts.
Tightening torque
Tighten the oil pump bolts to 23 Nm (17 lb ft).
