Oil Level Indicator and Tube Installation

Oil Level Indicator and Tube Installation





1. Install a NEW O-ring on the oil level indicator tube.

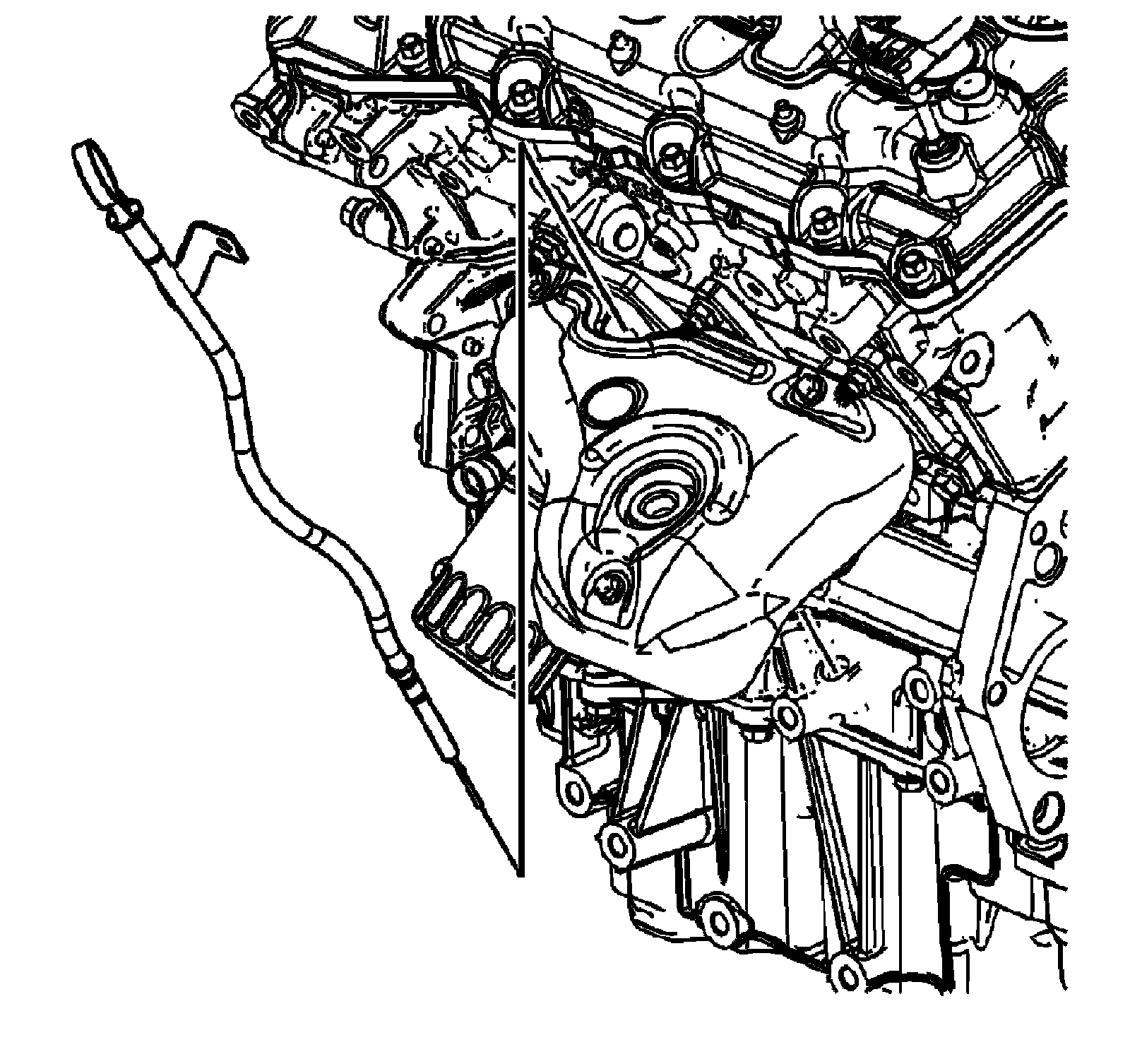

2. Install the oil level indicator and tube by sliding the tube down through the lower crankcase hole.





CAUTION:
Refer to [Fastener Notice].

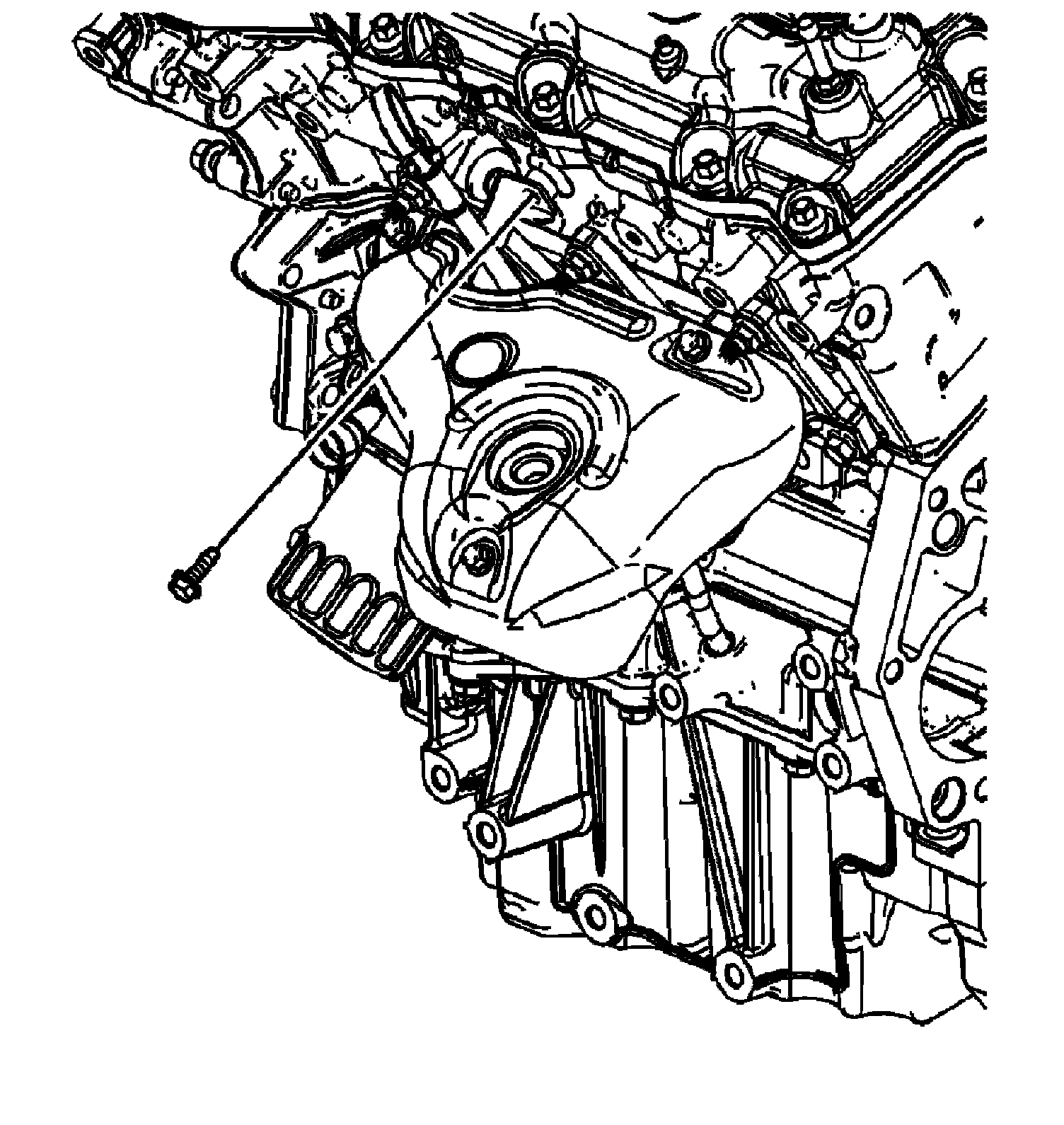

3. Install the oil level indicator tube bracket bolt.
Tightening torque
Tighten the oil level indicator tube bracket bolt to 10 Nm (89 lb in).
