Removal and Replacement

Oil Pump Replacement

Removal Procedure





NOTE:
Do not remove the left bank idler sprocket.

1. Remove the primary timing chain.

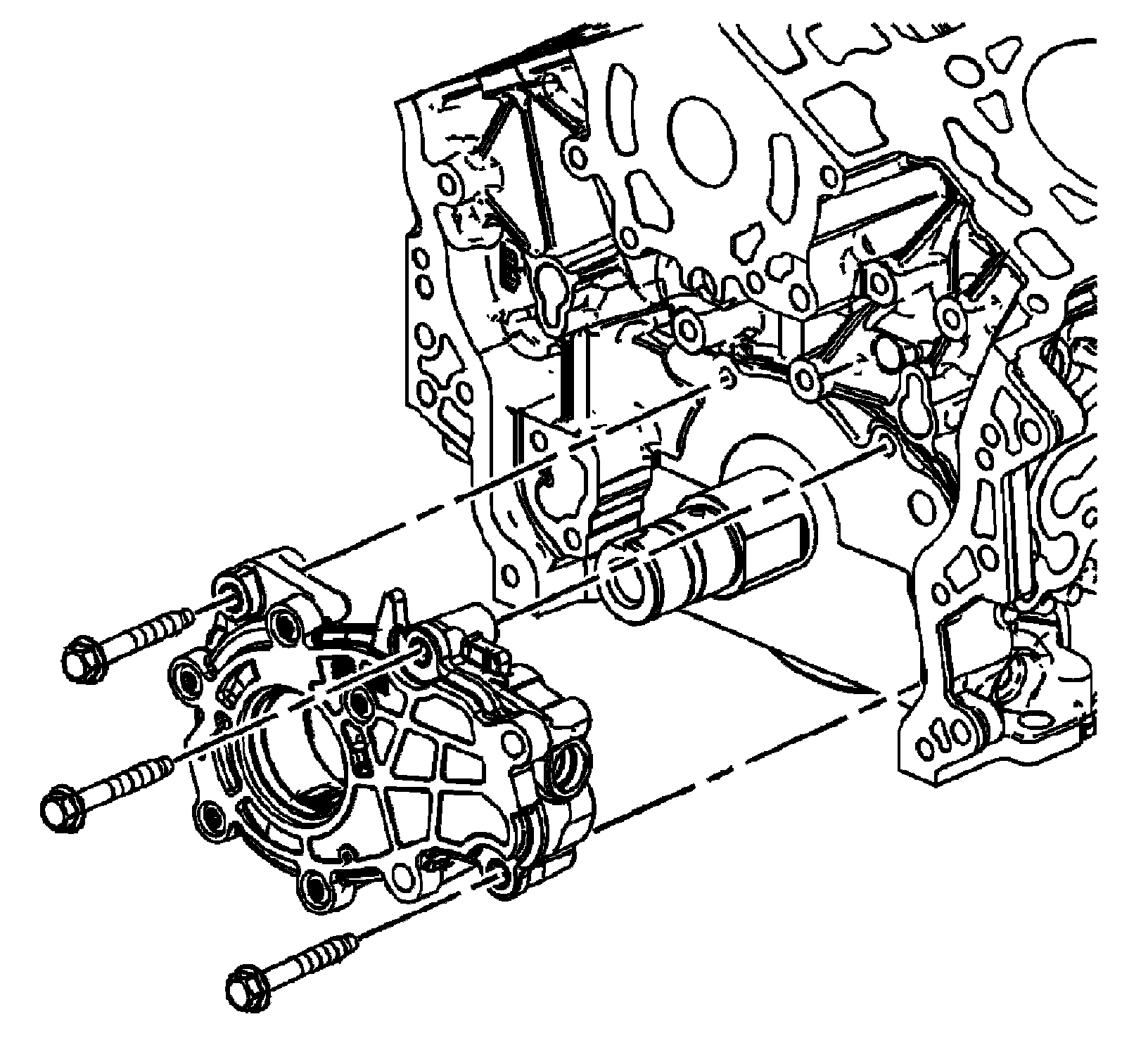

2. Remove the oil pump bolts and the oil pump.

Installation Procedure

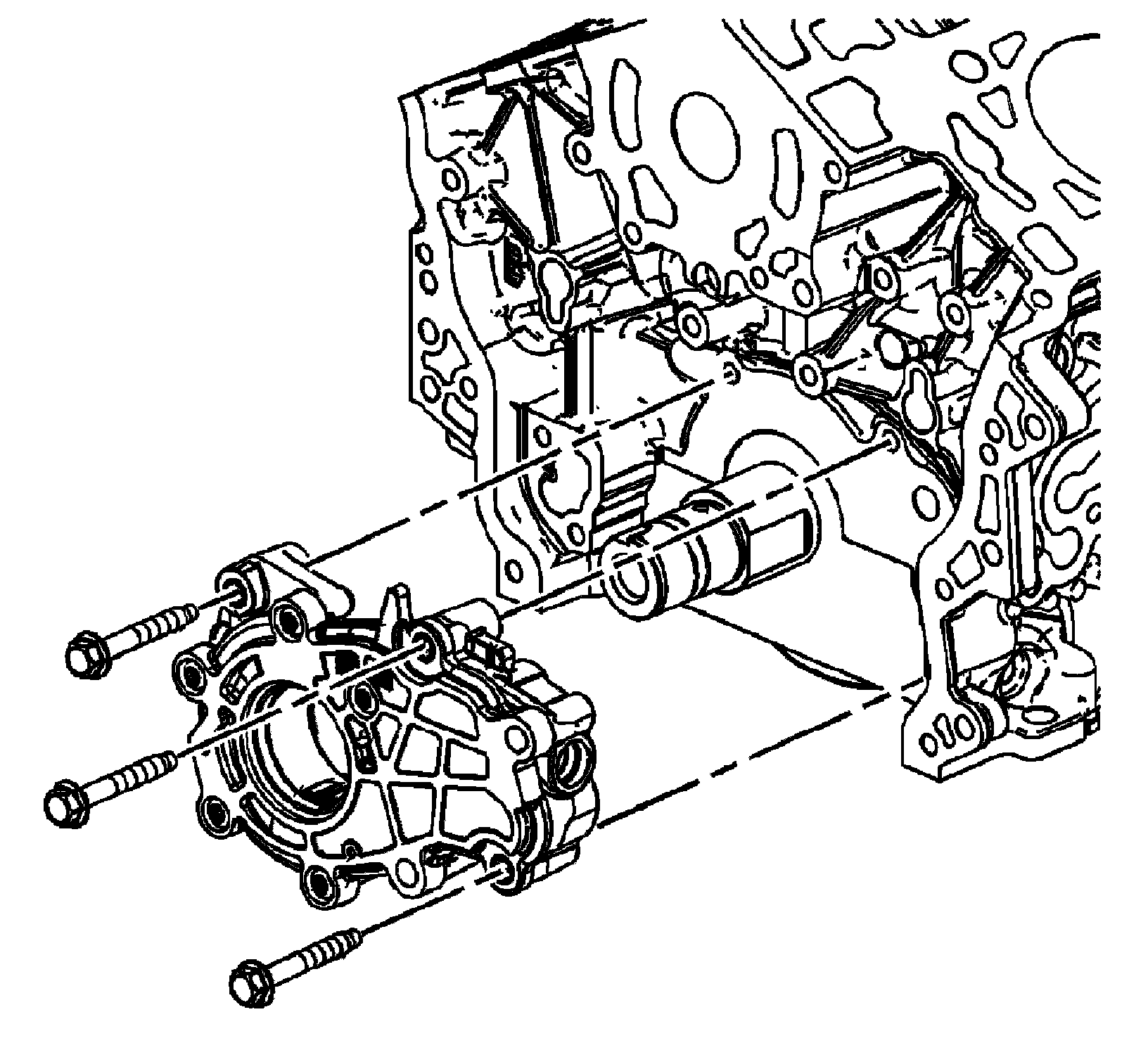

1. Install the oil pump.
2. Install the primary timing chain.
