Removal and Replacement
Coolant Air Bleed Pipe Assembly ReplacementRemoval Procedure
1. Remove the fuel injector sight shield.
2. Remove the surge tank inlet hose.

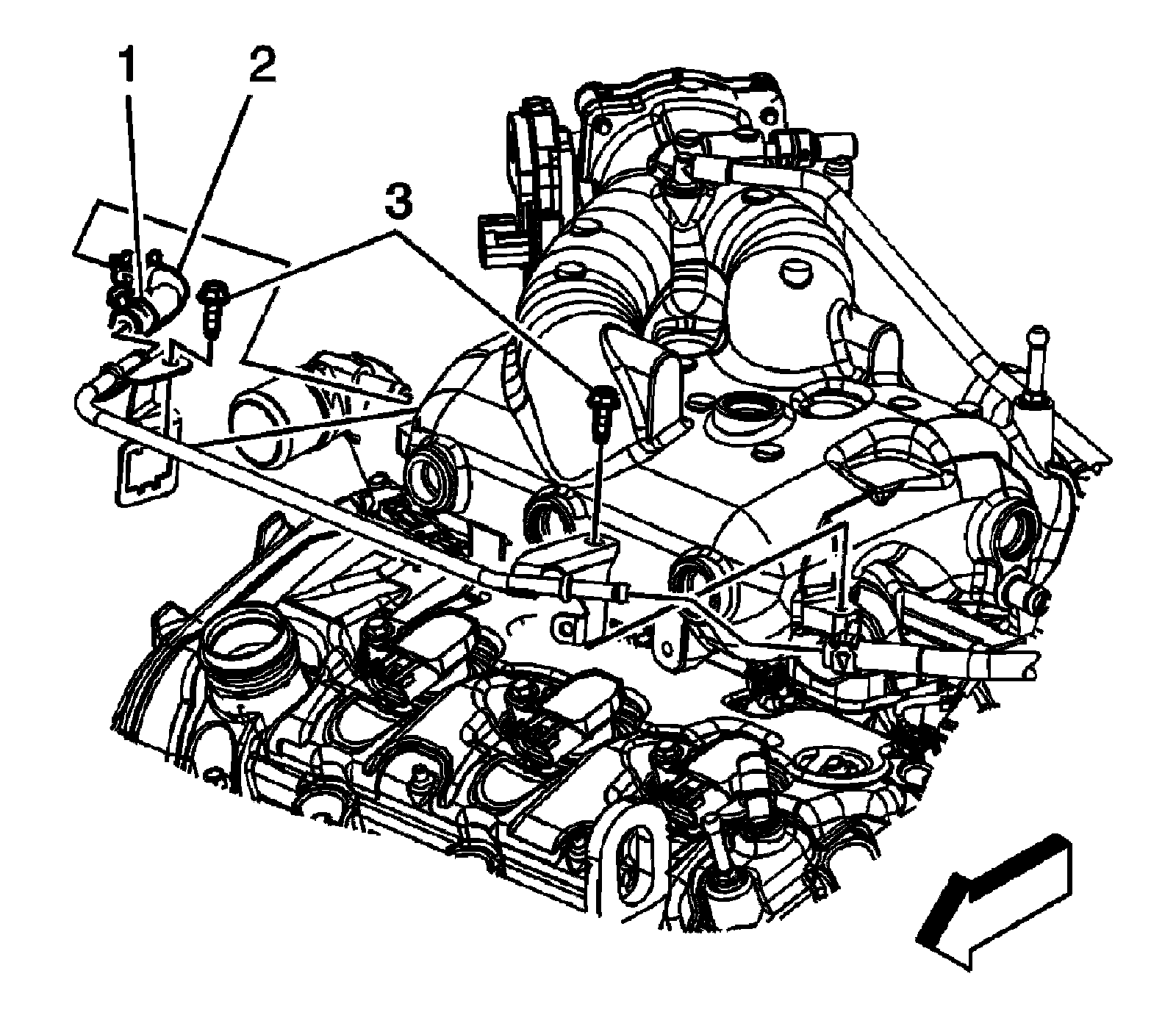

3. Reposition the coolant air bleed hose clamp (1) at the coolant air bleed hose.
4. Remove the coolant air bleed pipe from the coolant air bleed hose (2).
5. Remove the coolant air bleed pipe bolts (3) from the upper intake manifold.
6. Remove the coolant air bleed pipe from the engine.
Installation Procedure
1. Install the coolant air bleed pipe to the engine.
CAUTION:
Refer to [Fastener Notice].
2. Install the coolant air bleed pipe bolts (3) to the upper intake manifold.
Tightening torque
Tighten the bolt to 10 Nm (89 lb in).
3. Install the coolant air bleed hose (2) to the coolant air bleed pipe.

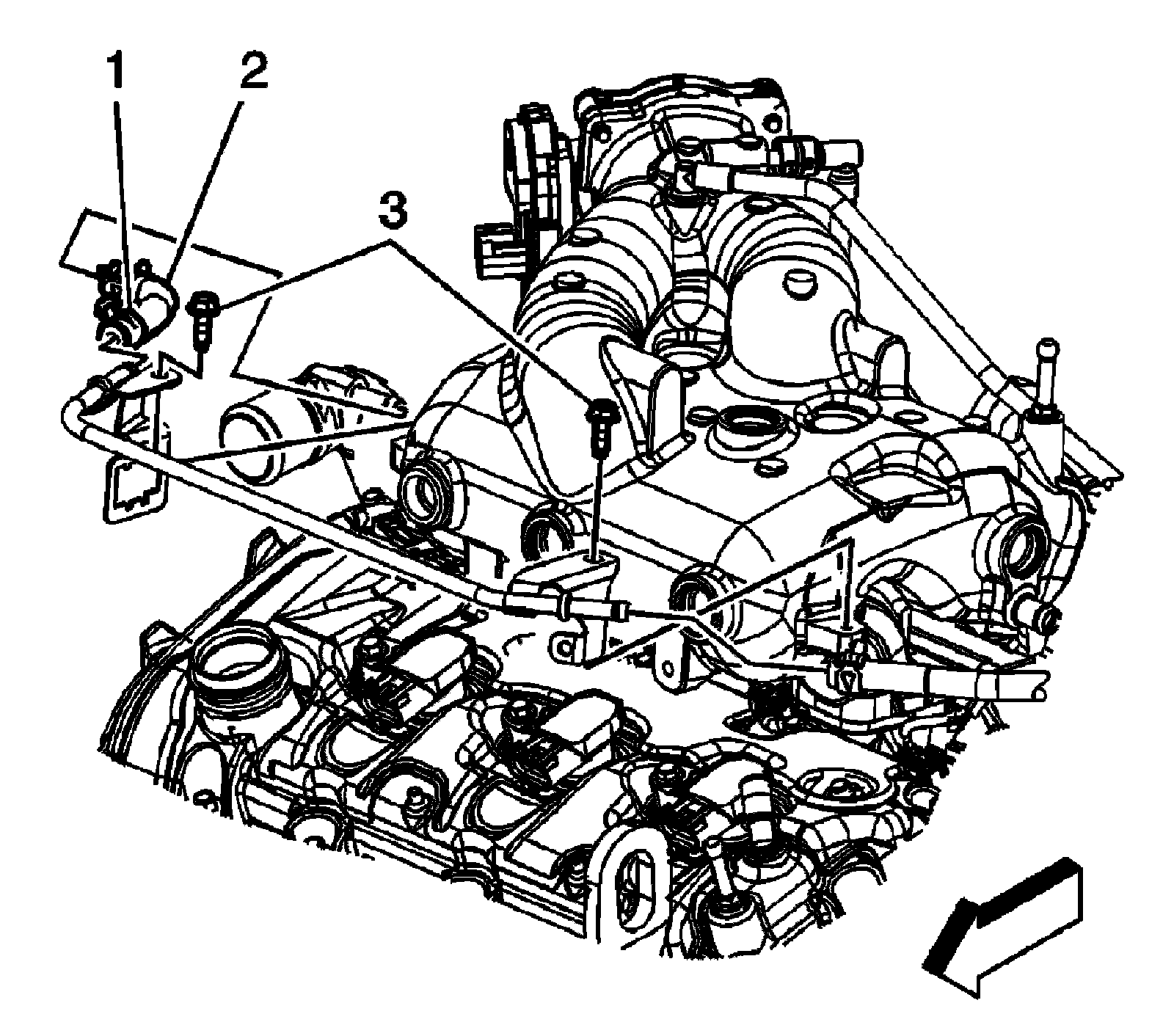

4. Position the coolant air bleed hose clamp (1) at the coolant air bleed hose.
5. Install the surge tank inlet hose.
6. Install the fuel injector sight shield.
