Front Door Latch

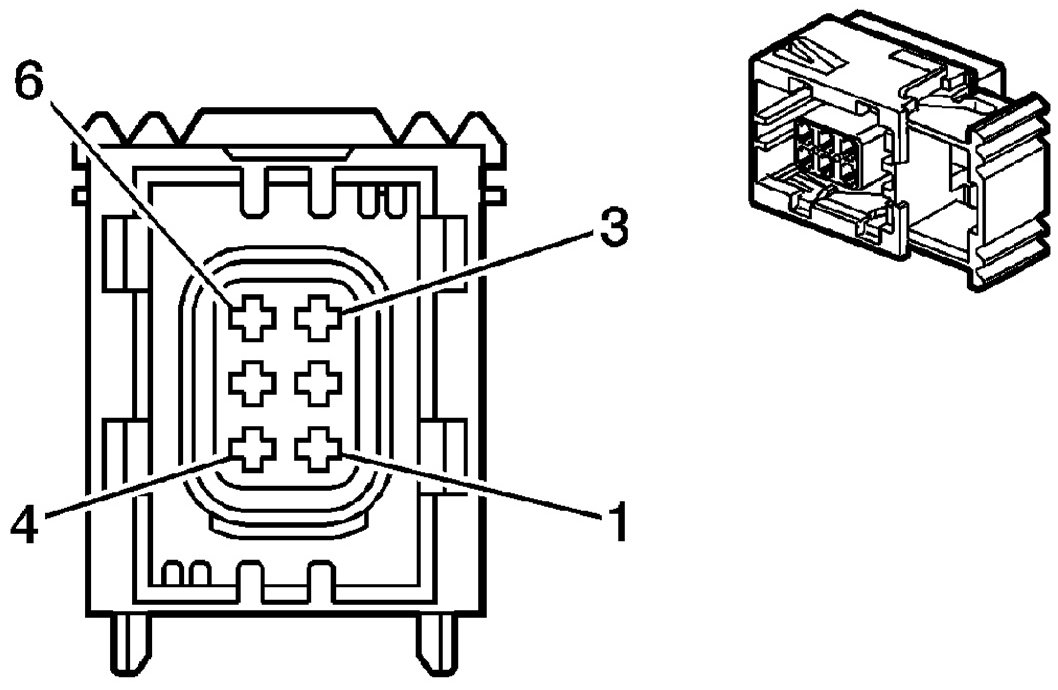

Vehicle Access Connector End Views

Door Latch - Driver






Connector Part Information
OEM: 6-1355683-1
Service: 88986251
Description: 6-Way F Sealed (BK)

Terminal Part Information.
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit






Door Latch - Front Passenger






Connector Part Information
OEM: 6-1355683-1
Service: 88986251
Description: 6-Way F Sealed (BK)

Terminal Part Information.
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit
