Brake Lamp

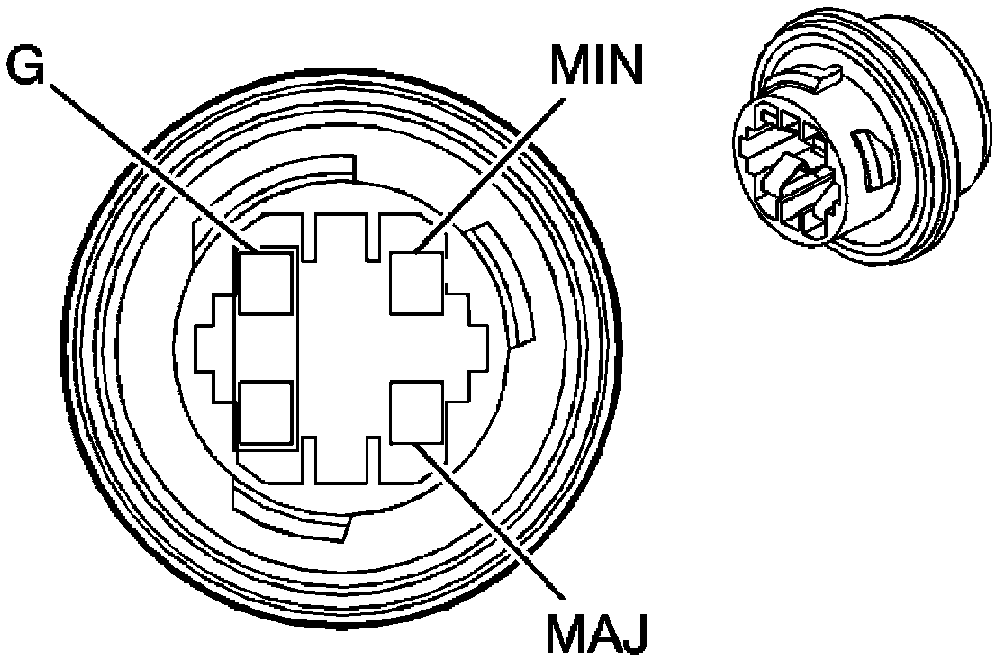

Park/Stop Lamp - Left Rear






Connector Part Information
OEM: 1999370
Service: See Catalog
Description: 3-Way F Lamp Socket Sealed (BK)

Terminal Part Information
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Park/Stop Lamp - Left Rear:






Park/Stop Lamp - Right Rear






Connector Part Information
OEM: 1999370
Service: See Catalog
Description: 3-Way F Lamp Socket Sealed (BK)

Terminal Part Information
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Park/Stop Lamp - Right Rear:
