Brake Fluid Level Sensor/Switch: Service and Repair

Brake Fluid Level Indicator Switch Replacement

Removal Procedure





1. Remove the underhood electrical center bracket.

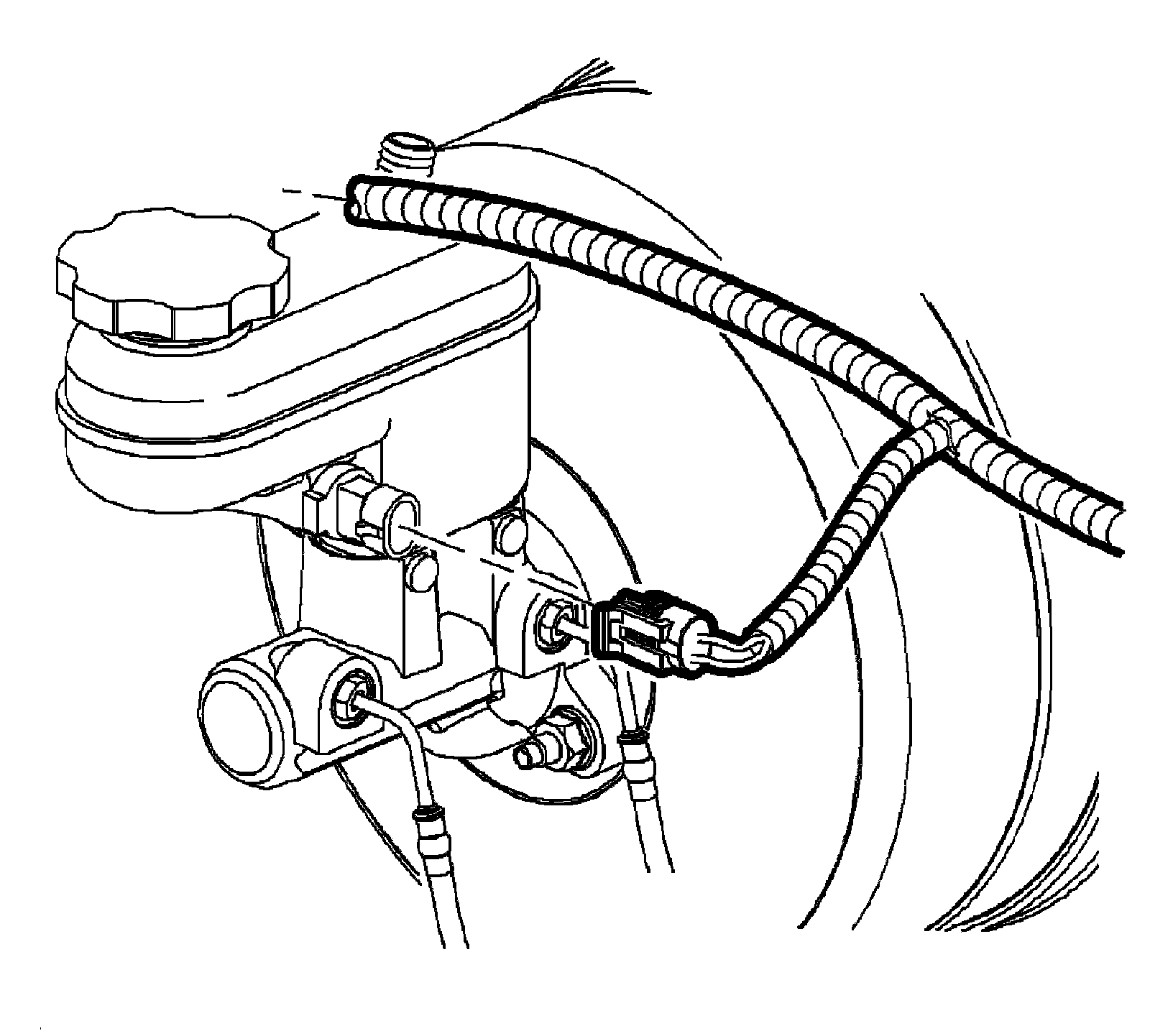

2. Disconnect the brake fluid level indicator switch electrical connector.

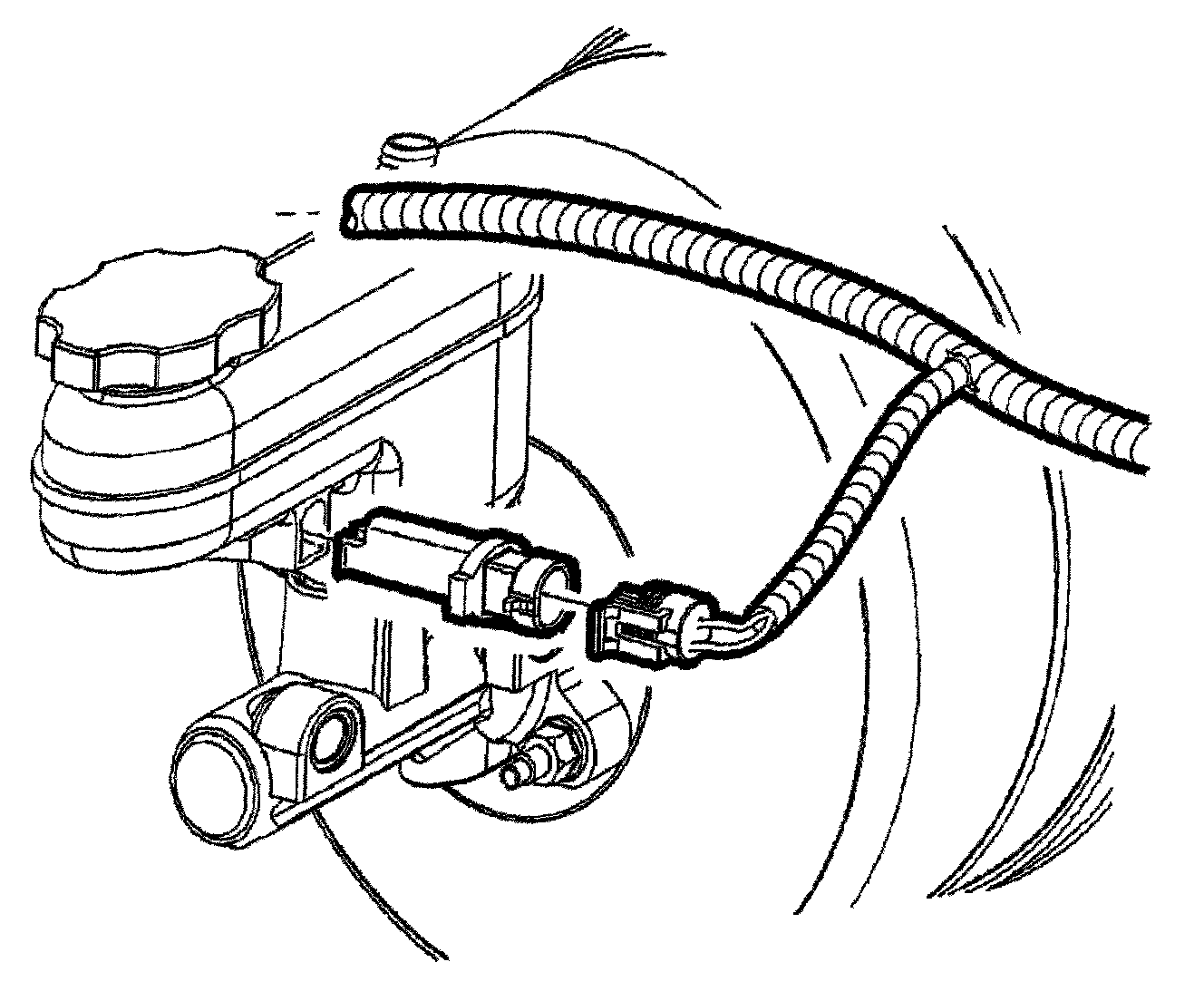

3. While simultaneously depressing the retaining tabs on the opposite side of the switch electrical connection, carefully pull the switch from the master cylinder reservoir.
4. Remove the low brake fluid level sensor.

Installation Procedure

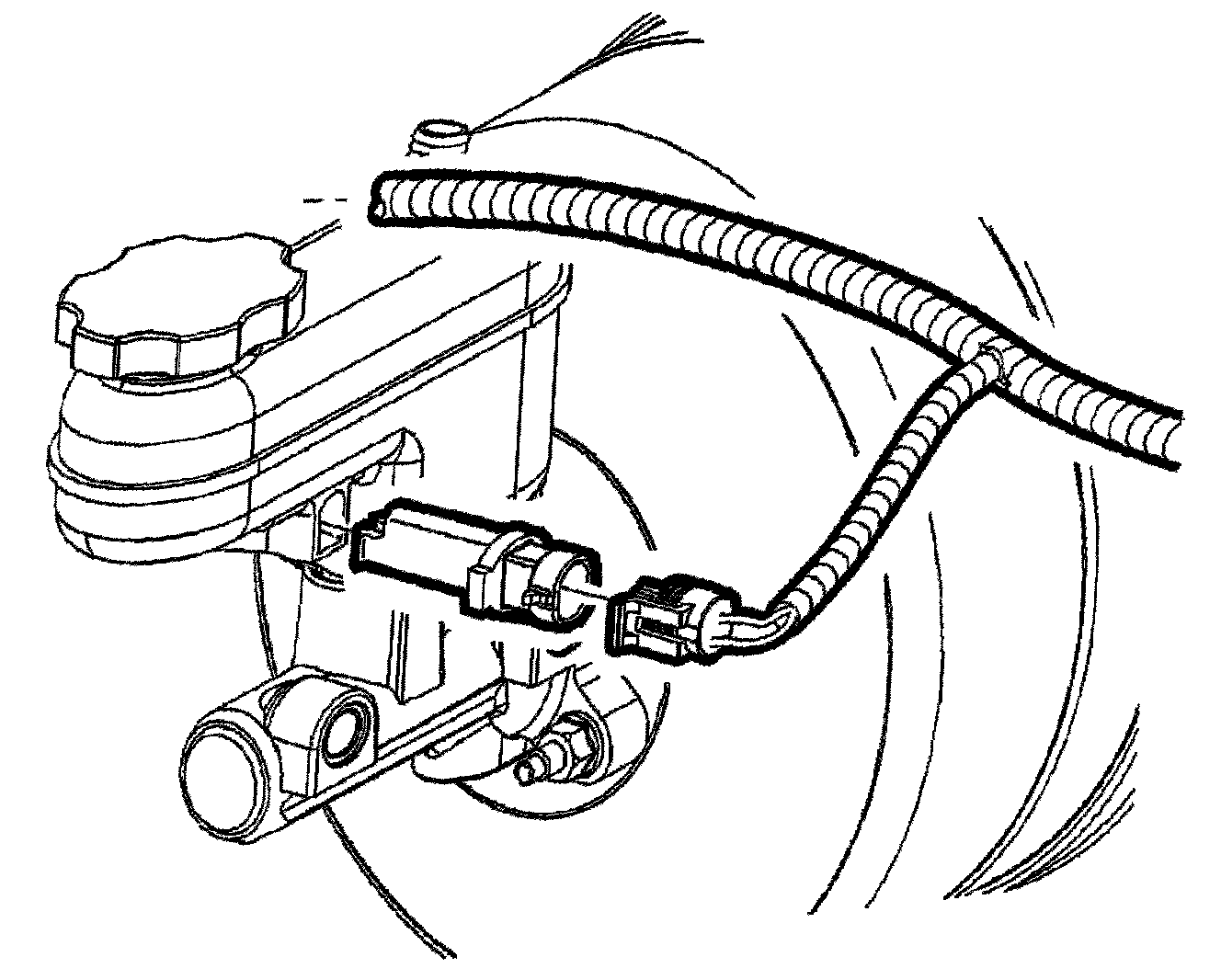

1. While noting the proper orientation, install the brake fluid level indicator switch to the master cylinder.
2. Press the brake fluid level indicator switch firmly into the master cylinder reservoir, ensuring that the retaining tabs are fully engaged.

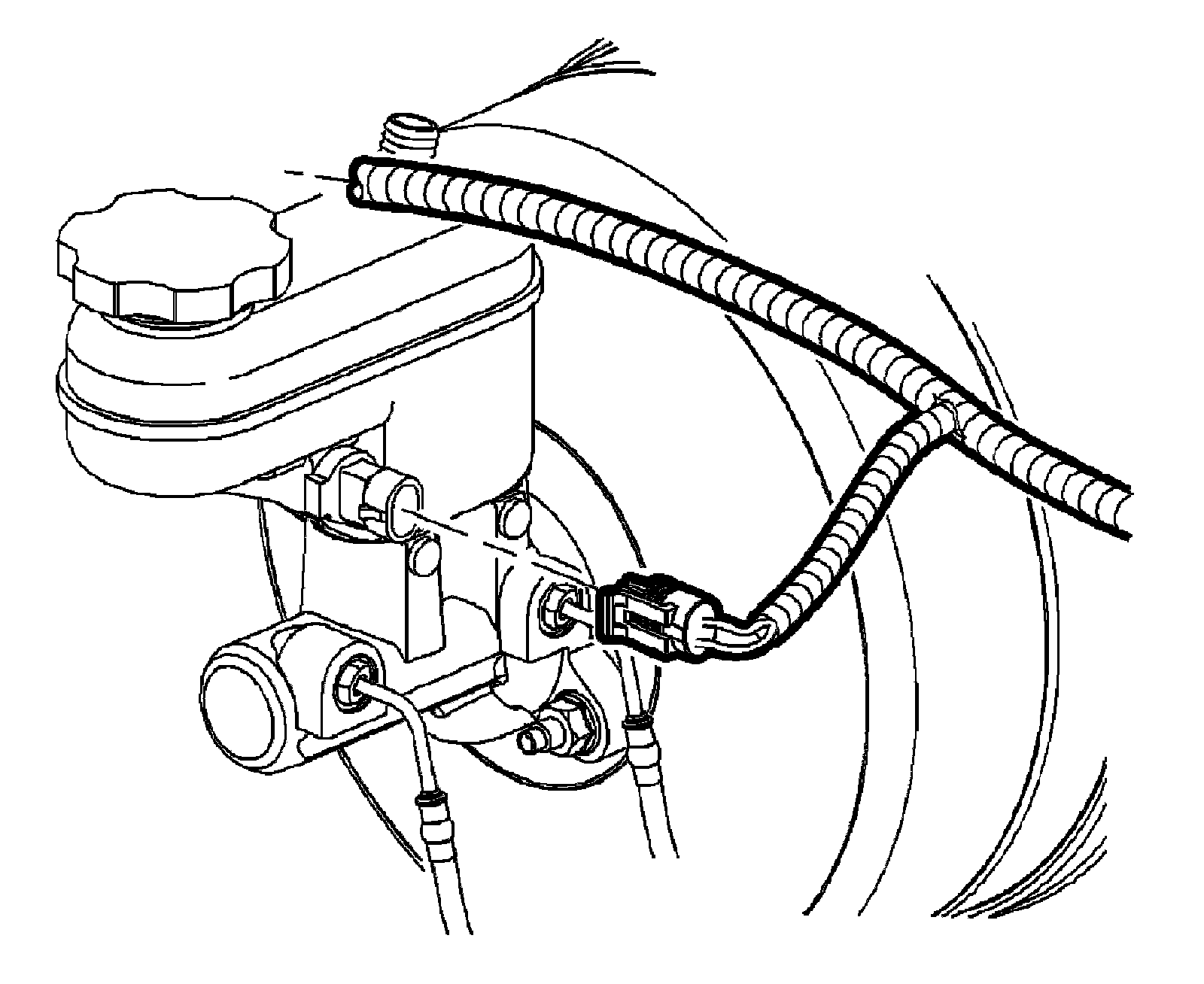

3. Connect the brake fluid level indicator switch electrical connector.
4. Install the underhood electrical center bracket.
