Front Side Door Window Channel Replacement
Front Side Door Window Channel ReplacementRemoval Procedure
1. Lower the front door window.
2. Remove the front door trim panel.
3. Remove the inner belt seal.

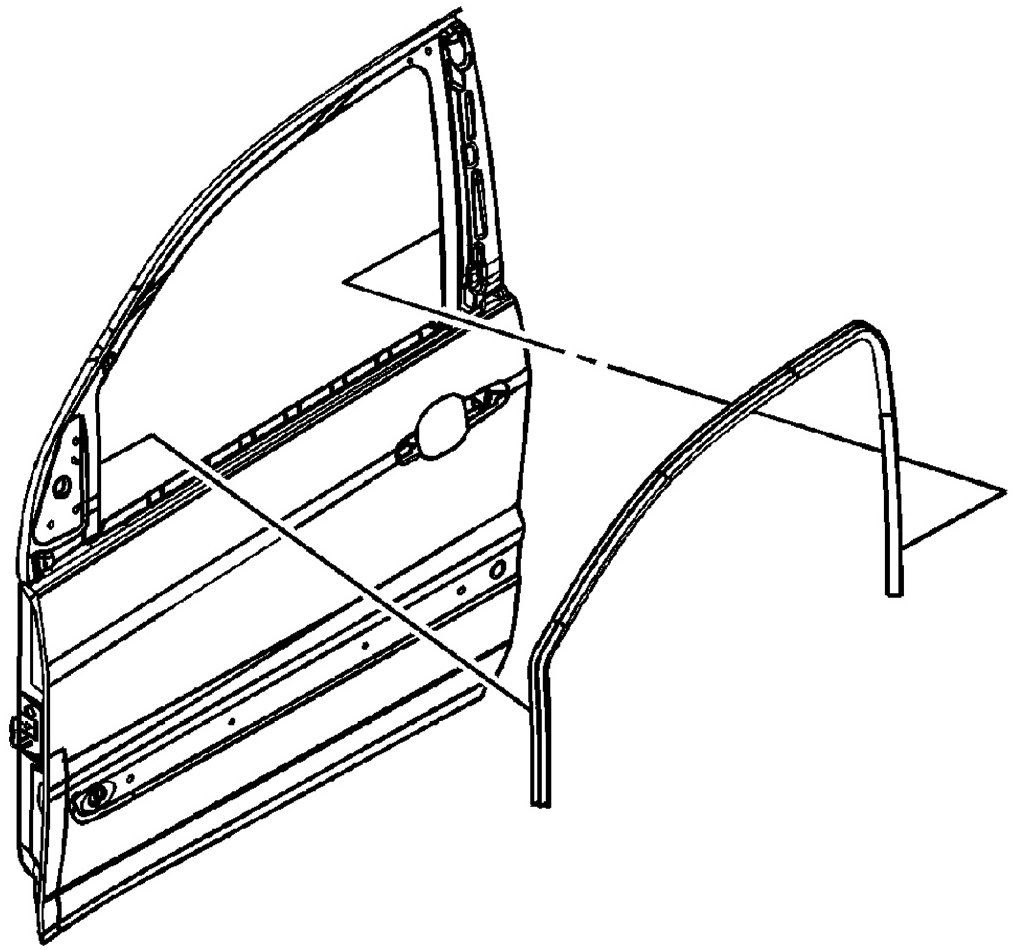

4. Starting at one end, carefully pull the window weatherstrip run channel assembly from the door frame.
Installation Procedure

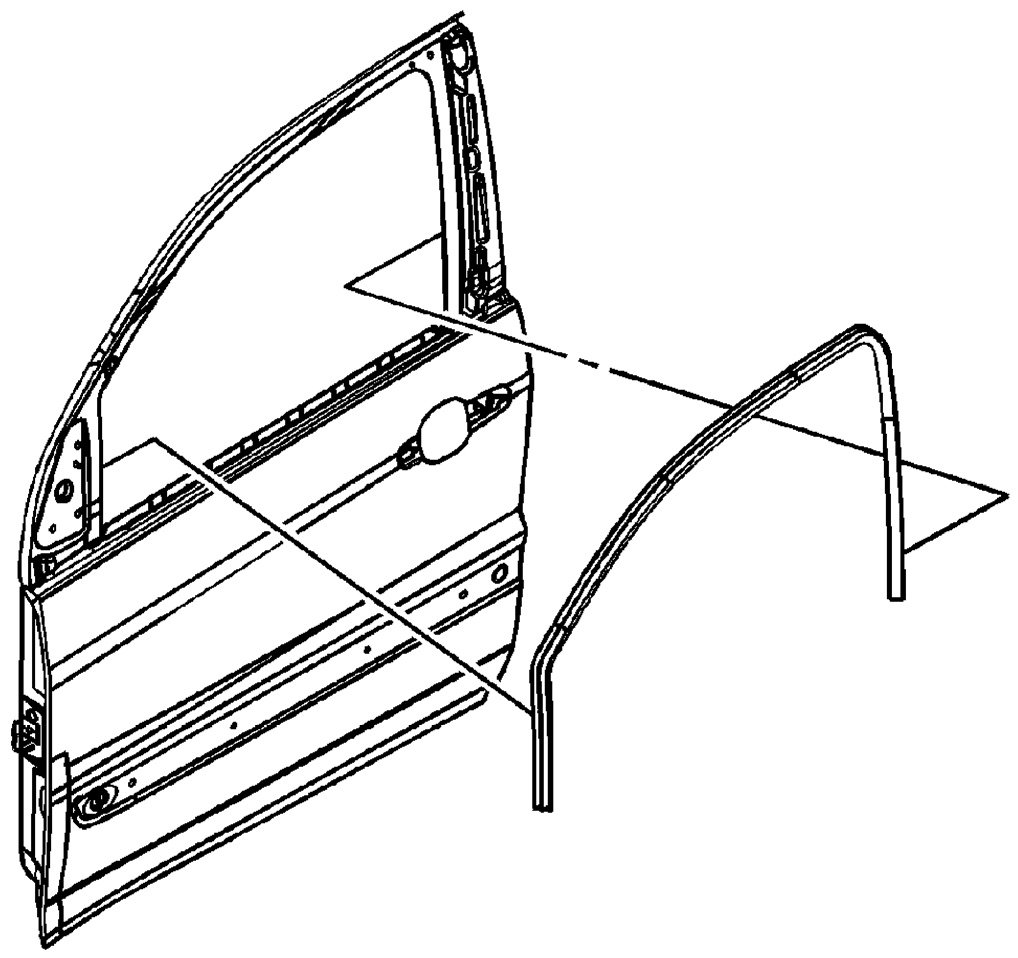

1. Install the window weatherstrip run channel assembly.
a. Starting at the lower rear corner of the window opening, press the weatherstrip run channel onto the door flange.
b. Ensure the channel is fully secured into the upper corners of the door frame.
2. Install the inner belt seal.
3. Install the front door trim panel.
